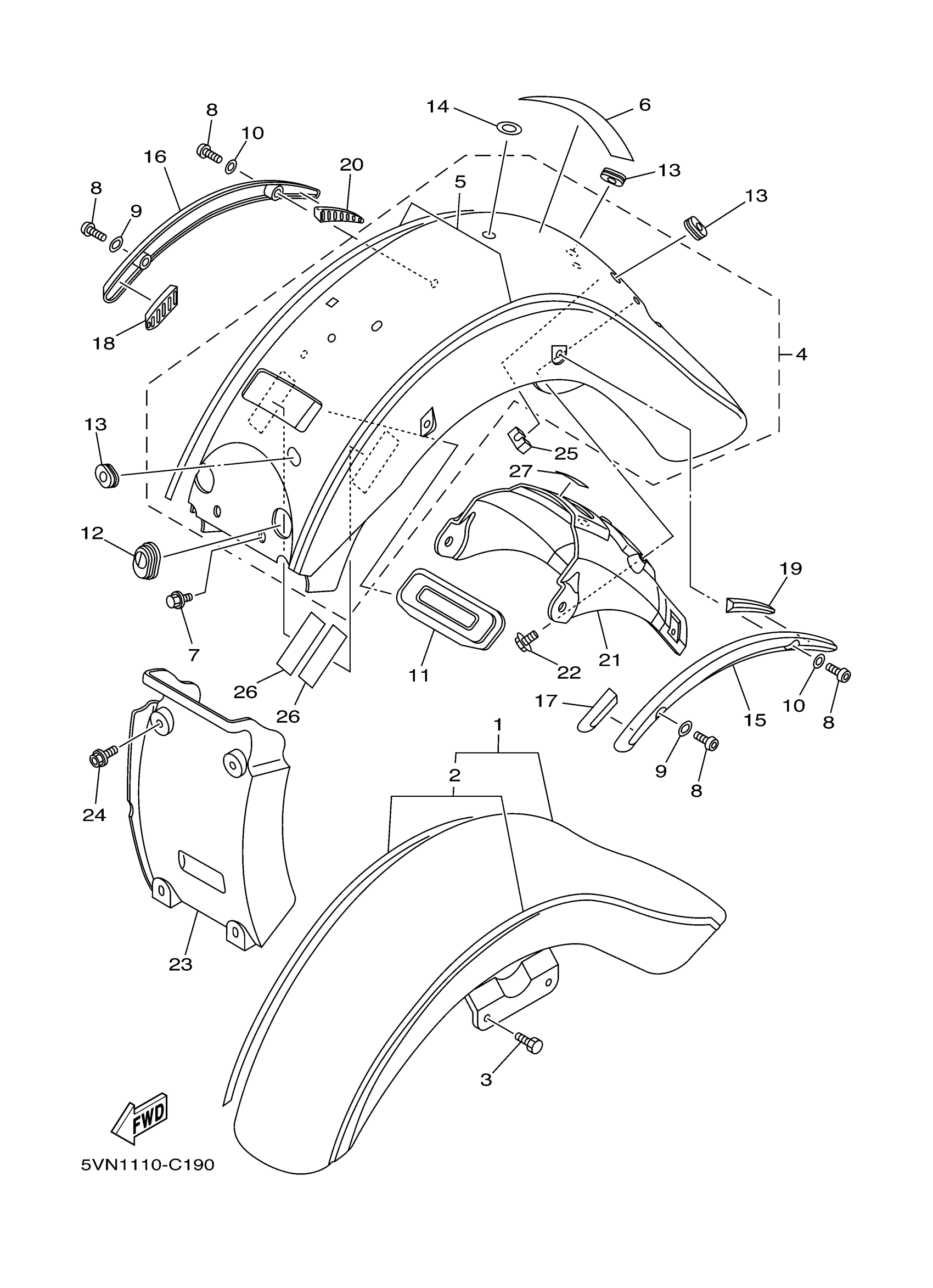

Yamaha XV17AVC (ROAD STAR SPOKE CA) 5VND 2006 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

5VN-Y2150-E1-XA

Unavailable

2

. GRAPHIC SET, FRONT FENDER

4WM-21570-S0-00

Unavailable

3

BOLT,SOCKET

91314-08025-00

$8.49

4

REAR FENDER COMP. (SILVER 3) (DARK GRAYISH BLUE METALLIC E)

5VN-Y2161-A0-6X

Unavailable

5

.. GRAPHIC SET, REAR FENDER

4WM-2165A-S0-00

Unavailable

6

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

7

BOLT, WITH WASHER

90119-06152-00

$7.49

8

BOLT, BUTTON HEAD(3YF)

92014-08025-00

$7.49

9

WASHER, SPECIAL 1

5VN-21615-00-00

$10.99

10

WASHER, SPECIAL 2

5VN-21616-00-00

Unavailable

11

DAMPER

4WM-21649-00-00

$50.99

12

DAMPER 1

4WM-21638-00-00

$10.99

13

GROMMET

90480-01015-00

$7.49

14

SEAL 2

5VN-21735-00-00

$7.99

15

STAY 1

4WM-2164F-00-00

$168.99

16

STAY 2

4WM-2164G-00-00

Unavailable

17

DAMPER 1

4WM-21541-00-00

Unavailable

18

DAMPER 2

4WM-21542-00-00

Unavailable

19

DAMPER

4WM-2174X-00-00

Unavailable

20

DAMPER

4WM-2174Y-00-00

Unavailable

21

STAY, REAR

5VN-21643-00-00

Unavailable

22

BOLT, FLANGE

95817-06012-00

Unavailable

23

GUARD, MUD (DARK GRAYISH BLUE METALLIC E)

4WM-21629-00-PD

Unavailable

24

BOLT, WITH WASHER

90119-06226-00

Unavailable

25

DAMPER 2

5VN-21639-00-00

Unavailable

26

PROTECTOR

5PW-23472-00-00

Unavailable

27

DAMPER

22F-2139X-00-00

Unavailable
