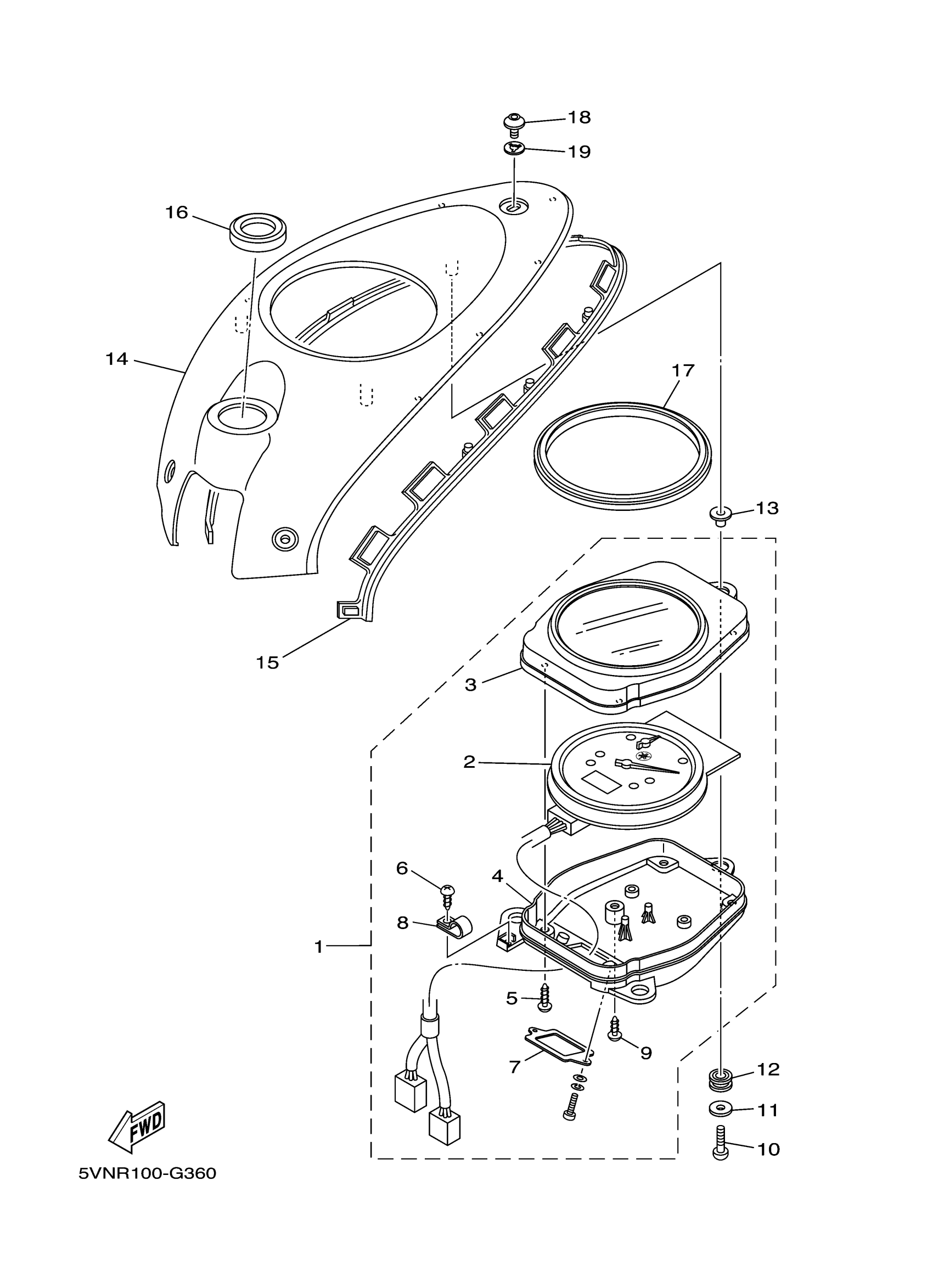

Yamaha XV17ATZW (ROAD STAR SILVERADO) 5VPP 2010 METER Diagram
#
Description
Price
1
METER ASSY
5VN-83500-20-00
Unavailable
2
SPEEDOMETER ASSY
5VN-83510-20-00
Unavailable
3
CASE, METER UPPER
5VN-8353E-20-00
Unavailable
4
CASE, METER LOWER
4WM-8353F-02-00
Unavailable
6
SCREW, TAPPING(71E)
90164-04023-00
Unavailable
14
COVER, METER
5VN-83559-00-00
Unavailable
15
MOLE 1
4WM-28345-01-00
Unavailable
16
MOLE 2
4WM-28346-00-00
Unavailable
17
MOLE 3
4WM-28347-00-00
Unavailable
18
SCREW(1XL)
90149-06264-00
Unavailable
19
PLATE
4U5-2176E-00-00
Unavailable
