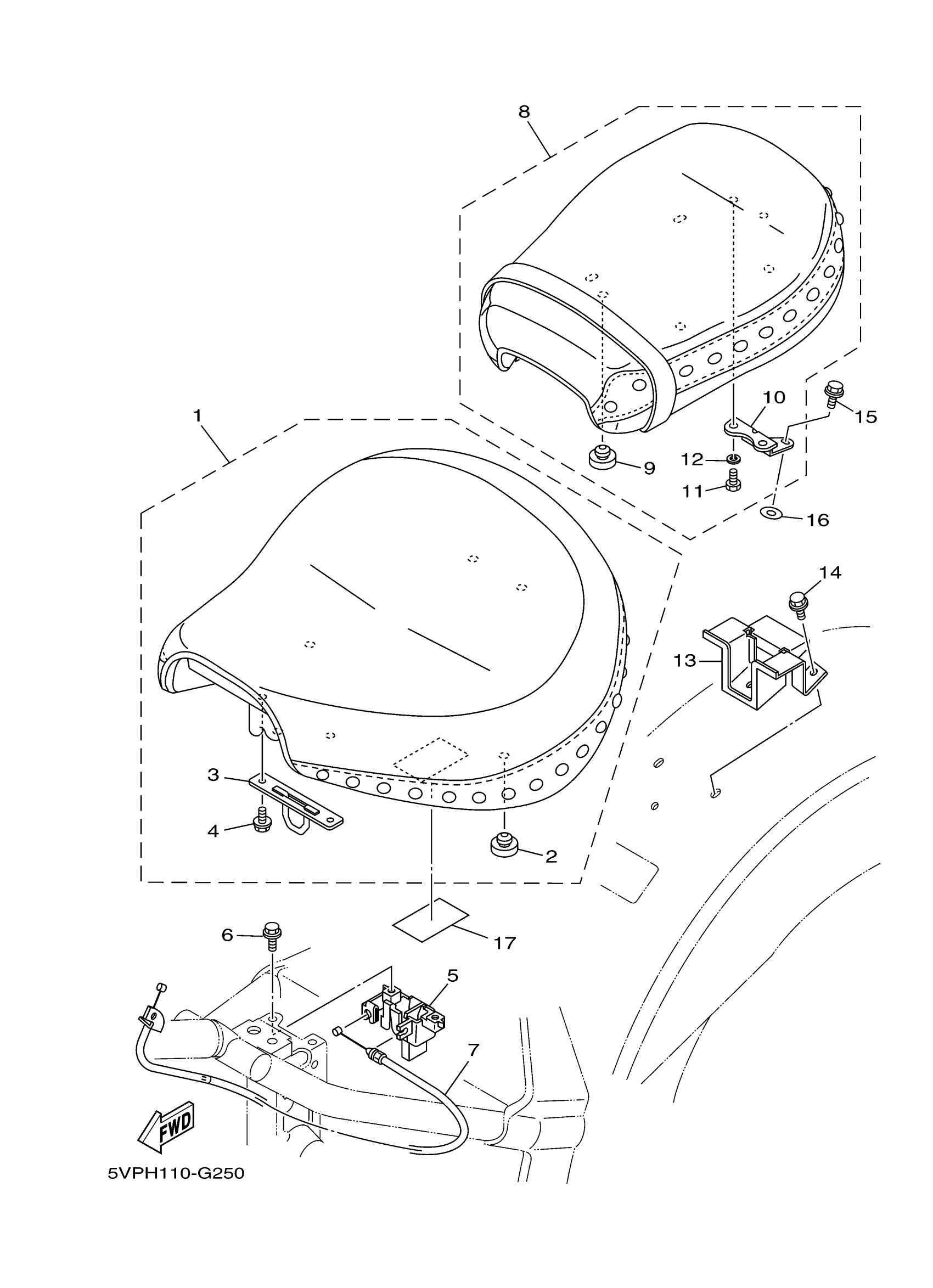

Yamaha XV17ATXL (ROAD STAR SILVERADO) 5VPH 2008 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5VR-24710-00-00

$357.99

2

PAD, SEAT

22W-24741-00-00

$8.99

3

BRACKET, SEAT

4WM-24728-00-00

$16.49

4

BOLT, FLANGE

95817-06012-00

$1.43

5

SEAT LOCK ASSY

4JP-24780-03-00

$71.99

6

BOLT, FLANGE

95817-06016-00

$2.75

7

CABLE, SEAT LOCK

4WM-2478E-00-00

$46.99

8

TANDEM SEAT ASSY (BLACK METALLIC X)

5VR-24750-00-00

Unavailable

9

PAD, SEAT

22W-24741-00-00

$8.99

10

STAY, SEAT

4NK-2471A-00-00

$23.99

11

BOLT, HEXAGON

97017-06016-00

$8.49

12

WASHER, SPRING

92907-06100-00

$4.25

13

BRACKET, SEAT LEVER 1

4WM-2475H-00-00

Unavailable

14

BOLT, FLANGE

95817-06012-00

$1.43

15

BOLT, FLANGE(2UJ)

95024-08012-00

$8.49

16

WASHER

5VN-24736-00-00

Unavailable

17

LABEL, TIRE

4NK-21668-A0-00

Unavailable
