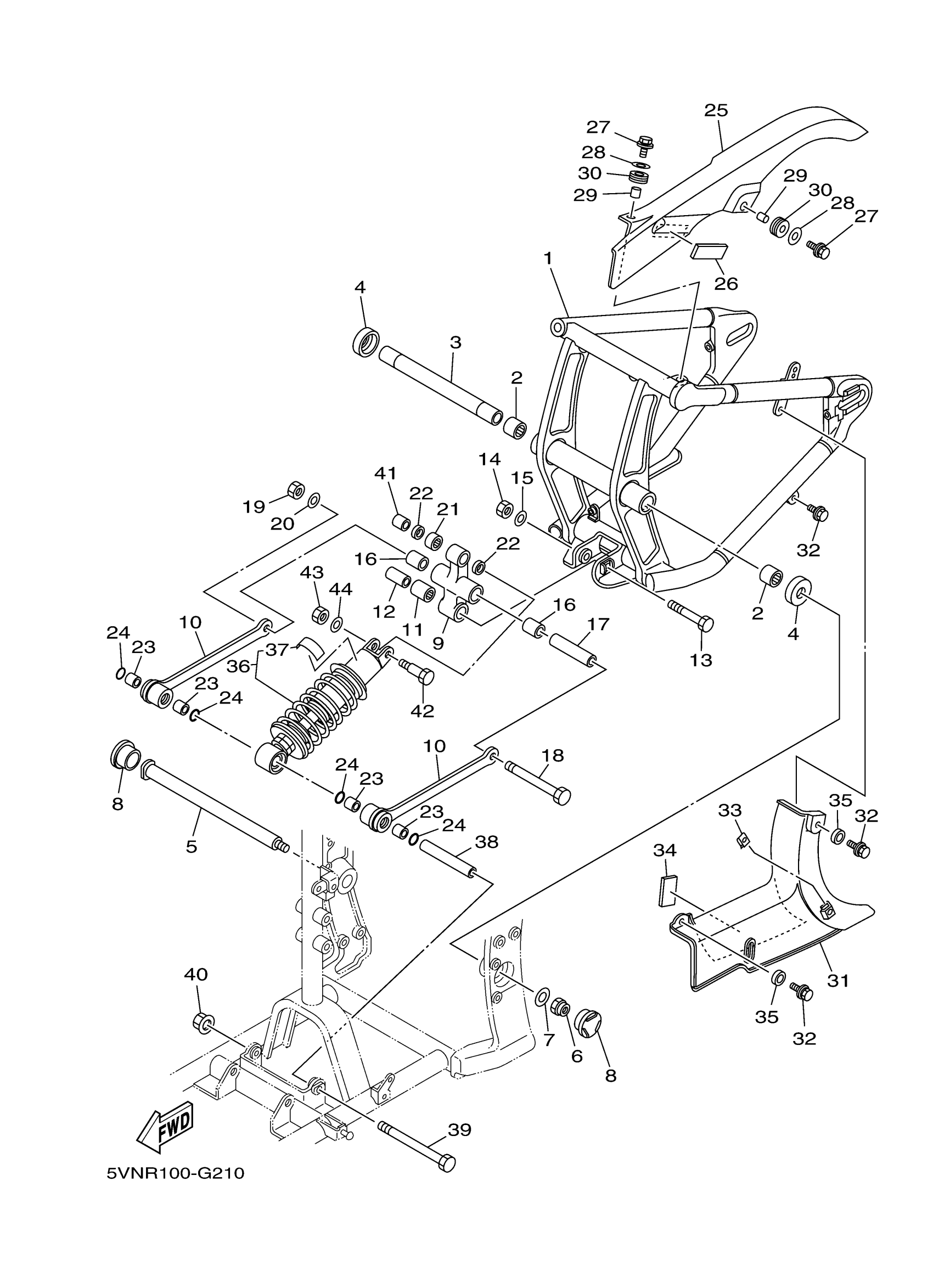

Yamaha XV17ATXL (ROAD STAR SILVERADO) 5VPH 2008 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

5VN-22110-01-00

Unavailable

2

BEARING, CYLINDRICAL(36Y)

93317-42550-00

Unavailable

3

BUSH

4WM-22184-00-00

Unavailable

4

COVER, THRUST 1

5JJ-22128-00-00

$35.99

5

AXLE, WHEEL

3GM-25381-10-00

Unavailable

6

NUT, SELF-LOCKING

90185-18009-00

$18.99

7

WASHER, PLATE

90201-18020-00

Unavailable

8

COVER

4KM-2219X-00-00

$14.49

9

ARM, RELAY

4WM-2217A-00-00

Unavailable

10

ARM 1

4WM-2217M-10-00

$155.99

11

BEARING, CYLINDRICAL(2GH)

93317-42060-00

$46.99

12

COLLAR (34L)

90387-122J6-00

Unavailable

13

BOLT

90101-12002-00

Unavailable

14

NUT, U (4PM)

95617-12100-00

$4.16

15

WASHER, PLATE(55K)

90201-127J6-00

$8.49

16

BEARING, CYLINDRICAL(2GH)

93317-41761-00

Unavailable

17

COLLAR(2GH)

90387-126T1-00

Unavailable

18

BOLT(2GH)

90101-12673-00

Unavailable

19

NUT, U (4PM)

95617-12100-00

$4.16

20

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

21

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

22

OIL SEAL

93109-17071-00

Unavailable

23

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

Unavailable

24

O-RING (1L9)

93210-18322-00

Unavailable

25

CASE, CHAIN

5JA-22311-00-00

Unavailable

26

DAMPER, CHAIN CASE

5VN-22332-00-00

Unavailable

27

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

28

WASHER, PLATE (J10)

90201-06697-00

Unavailable

29

COLLAR(J45)

90387-064T3-00

Unavailable

30

GROMMET

90480-14026-00

Unavailable

31

CASE, CHAIN 2

5VN-22312-00-00

Unavailable

32

BOLT, WITH WASHER

90119-06001-00

Unavailable

33

NUT, SPRING(4ES)

90183-06069-00

Unavailable

34

DAMPER

22F-2139X-00-00

Unavailable

35

COLLAR

90387-06069-00

Unavailable

36

SHOCK ABSORBER ASSY, REAR

5GA-22210-00-00

Unavailable

37

LABEL, WARNING

4AA-22259-80-00

Unavailable

38

COLLAR

90387-1214E-00

Unavailable

39

BOLT(3GD)

90101-12695-00

Unavailable

40

NUT, U FLANGE

95607-12200-00

Unavailable

41

COLLAR(3TJ)

90387-127W0-00

Unavailable

42

BOLT(1WG)

90101-10659-00

Unavailable

43

NUT, U

95617-10100-00

Unavailable

44

WASHER, PLATE(47X)

90201-101J1-00

Unavailable
