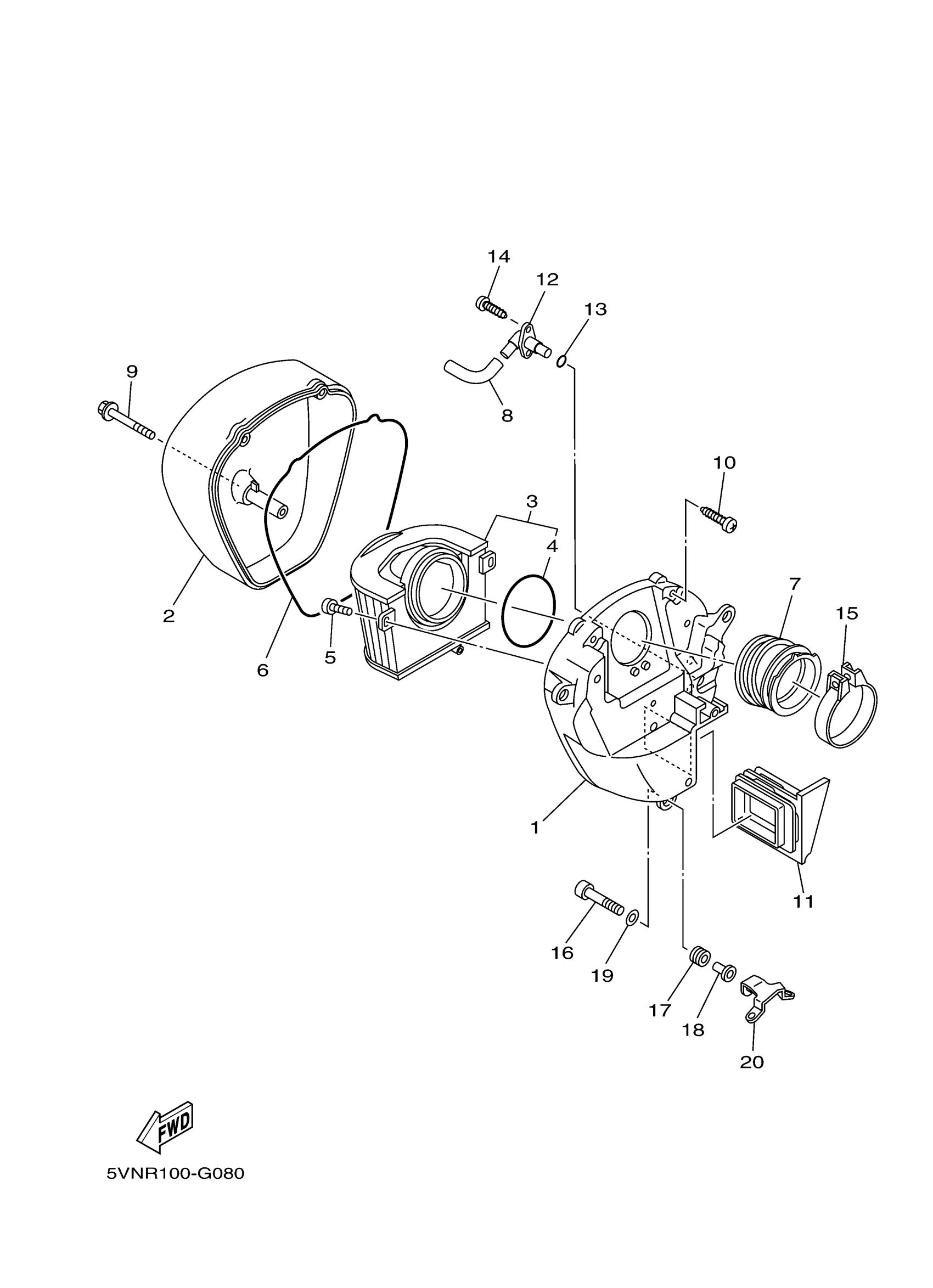

Yamaha XV17ATXL (ROAD STAR SILVERADO) 5VPH 2008 INTAKE 2 Diagram

CASE, AIR CLEANER 1

5VN-14411-00-00

Unavailable

CASE, AIR CLEANER 2

4WM-14421-00-00

Unavailable

ELEMENT, AIR CLEANER

5VN-14451-10-00

$30.99

O-RING

93210-77040-00

$28.99

SCREW, BIND(J39)

98980-06014-00

$9.49

SEAL

51Y-14462-00-00

$18.49

JOINT, AIR CLEANER 1

5VN-14453-20-00

Unavailable

PIPE, DRAIN

5VN-1443E-00-00

$11.99

SCREW

90149-06331-00

Unavailable

SCREW, PAN TAP.2

97707-60540-00

$9.49

DUCT

5VN-14437-10-00

Unavailable

PIPE, JOINT

5VN-14485-00-00

Unavailable

O-RING (2H7)

93210-13361-00

$5.60

SCREW, PAN TAP.2

97707-50525-00

$8.49

HOSE CLAMP ASSY

90450-67002-00

$11.49

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

GROMMET 839774310000

90480-14023-00

Unavailable

COLLAR 437216330000

90387-07391-00

Unavailable

WASHER PLATE 256216150000

90201-06062-00

Unavailable

STAY 1

5VN-14498-10-00

Unavailable
