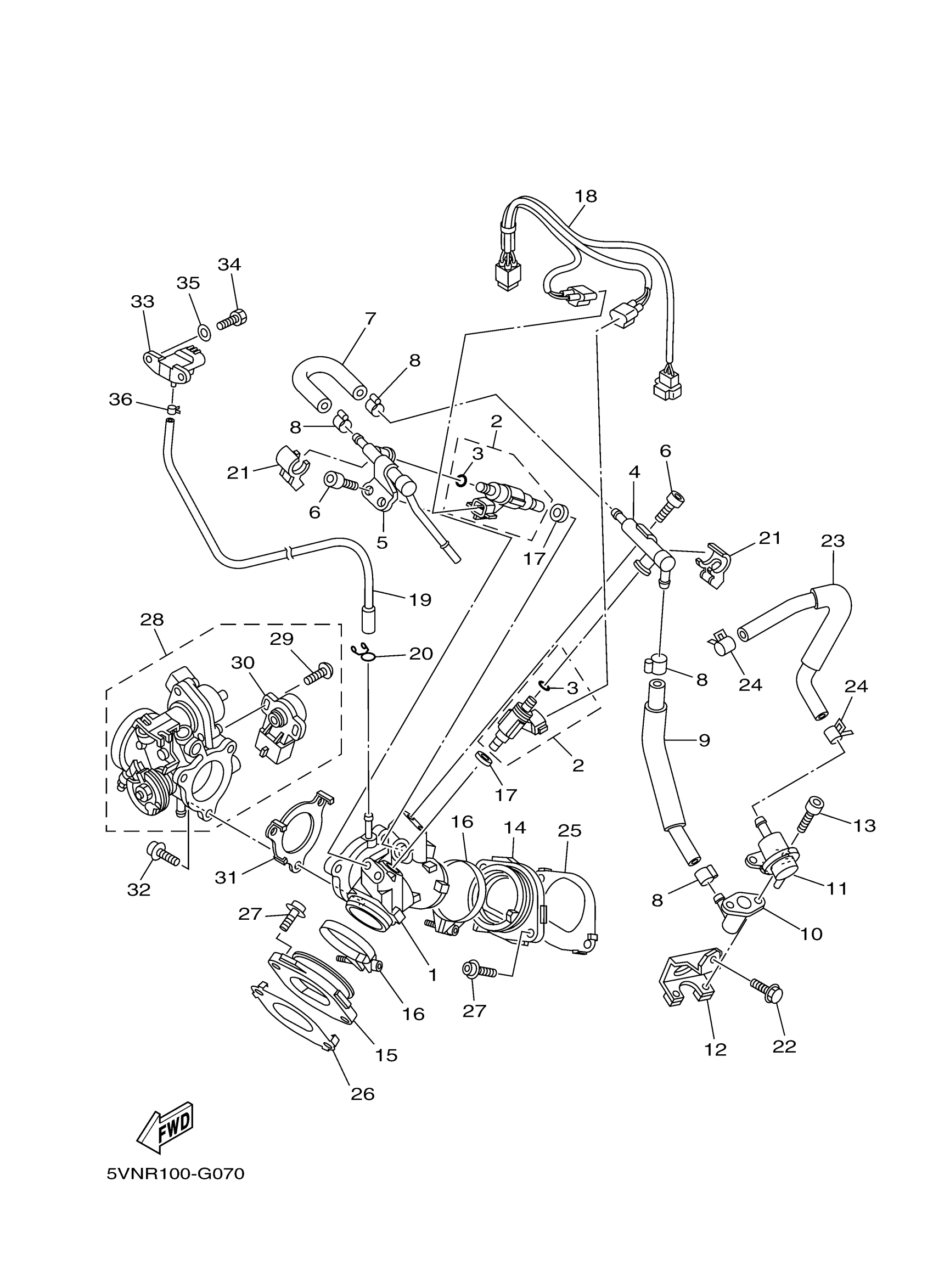

Yamaha XV17ATXL (ROAD STAR SILVERADO) 5VPH 2008 INTAKE Diagram
#
4
PIPE
5VN-14349-00-00
Unavailable
5
PIPE
5VN-14148-00-00
Unavailable
7
HOSE
5VN-13926-00-00
Unavailable
8
. CLIP
68V-24387-00-00
Unavailable
9
PIPE, FUEL 2
5VN-13972-00-00
Unavailable
10
JOINT
5VN-13595-00-00
Unavailable
12
BRACKET 1
5VN-14291-00-00
Unavailable
15
JOINT, CARBURETOR 3
5VN-13597-01-00
Unavailable
16
HOSE CLAMP ASSY
90450-62006-00
Unavailable
17
GASKET, MANIFOLD
8FP-13556-00-00
Unavailable
18
WIRE, SUB LEAD
5VN-81517-10-00
Unavailable
19
HOSE, AIR
5VN-13895-00-00
Unavailable
20
CLIP (16G)
90467-08021-00
Unavailable
21
HOLDER
3D8-14261-00-00
Unavailable
22
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
23
PIPE, FUEL 3
5VN-13973-00-00
Unavailable
24
CLIP(3YX)
90467-13133-00
Unavailable
25
SEAL
5VN-14457-00-00
Unavailable
26
SEAL
5VN-14462-00-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD
90110-06048-00
Unavailable
28
THROTTLE BODY ASSY
5VN-13750-00-00
Unavailable
28
THROTTLE BODY ASSY
5VN-13750-10-00
Unavailable
29
SCREW
8CC-14216-10-00
Unavailable
30
THROTTLE SENSOR AS
3B4-85885-01-00
Unavailable
31
SEAL
5VN-14467-00-00
Unavailable
32
BOLT, HEXAGON SOCKET HEAD
90110-06069-00
Unavailable
33
SENSOR, PRESSURE
5PS-82380-00-00
Unavailable
34
BOLT(4TW)
97017-05016-00
Unavailable
35
WASHER(1RW)
92907-05600-00
Unavailable
36
CLIP(42X)
90467-07093-00
Unavailable
