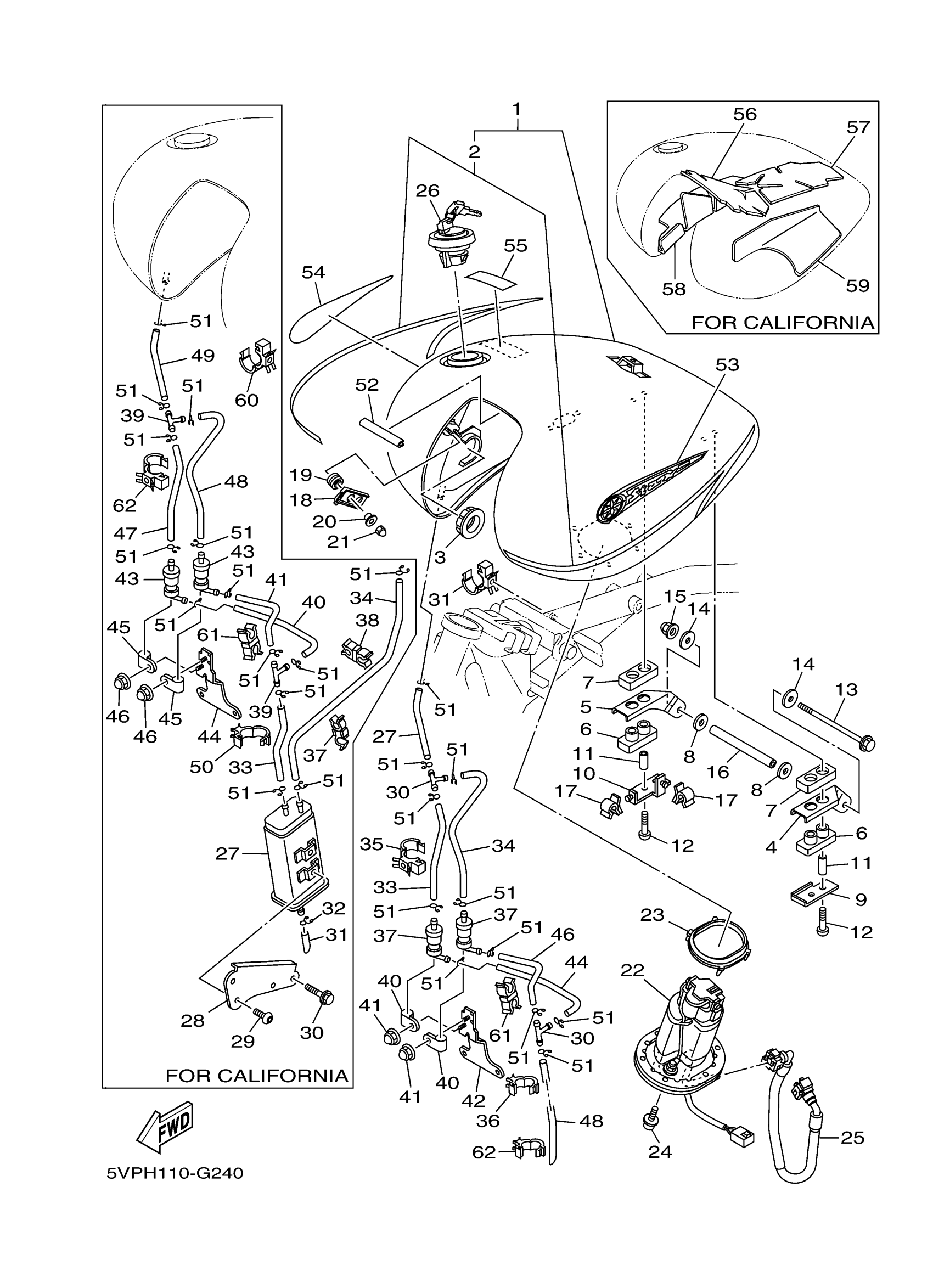

Yamaha XV17ATXL (ROAD STAR SILVERADO) 5VPH 2008 FUEL TANK Diagram
#
1
FUEL TANK COMP.
5VN-Y2410-00-04
Unavailable
2
. GRAPHIC SET
5VP-24240-10-00
Unavailable
4
BRACKET, FUEL TANK 1
5MB-24191-00-00
Unavailable
5
BRACKET, FUEL TANK 2
5MB-24192-00-00
Unavailable
6
DAMPER, LOCATING 1
5MB-24181-00-00
Unavailable
9
WASHER, SPECIAL
5MB-24186-00-00
Unavailable
11
COLLAR
90387-06062-00
Unavailable
13
BOLT, FLANGE
95817-06140-00
Unavailable
16
COLLAR
90387-06061-00
Unavailable
17
CLAMP(4GY)
90464-08189-00
Unavailable
18
BRACKET, FUEL TANK 1
4WM-24291-00-00
Unavailable
19
GROMMET
4WM-24339-00-00
Unavailable
20
COLLAR(82M)
90387-050T5-00
Unavailable
21
NUT, CROWN
95302-05800-00
Unavailable
22
FUEL PUMP COMP.
5VN-13907-11-00
Unavailable
23
O-RING
5VN-24486-00-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
25
PIPE, FUEL 1
5VN-13971-01-00
Unavailable
26
CAP ASSY
4NK-24602-20-00
Unavailable
27
CANISTER ASSY
5PX-24170-00-00
Unavailable
27
PIPE 10
5VN-24321-30-00
Unavailable
28
BRACKET 5
5VN-2742L-00-00
Unavailable
29
BOLT,HEX. SOCKET BUTTON
90111-06103-00
Unavailable
30
BOLT, WASHER BASED
90105-06009-00
Unavailable
30
WAY 3 (10L)
90413-07007-00
Unavailable
31
PIPE 14
3D8-24325-00-00
Unavailable
31
CLAMP(4KM)
90464-25217-00
Unavailable
32
CLIP
90467-100A1-00
Unavailable
33
PIPE 11
5VN-24322-20-00
Unavailable
33
PIPE 15
5VN-243A1-00-00
Unavailable
34
PIPE, OVERFLOW
5VN-24318-10-00
Unavailable
34
PIPE 16
5VN-243A2-00-00
Unavailable
35
CLAMP(4KM)
90464-25217-00
Unavailable
36
CLAMP(4GY)
90464-10190-00
Unavailable
37
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
37
CLAMP
90464-09022-00
Unavailable
38
CLAMP
90464-09014-00
Unavailable
39
WAY 3 (10L)
90413-07007-00
Unavailable
40
PIPE 17
5VN-243A3-00-00
Unavailable
40
CLAMP
90464-15014-00
Unavailable
41
PIPE 18
5VN-243A4-00-00
Unavailable
41
NUT, CROWN(47X)
90176-05054-00
Unavailable
42
STAY
5VN-24662-10-00
Unavailable
43
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
44
PIPE 17
5VN-243A3-00-00
Unavailable
44
STAY
5VN-24662-10-00
Unavailable
45
CLAMP
90464-15014-00
Unavailable
46
PIPE 18
5VN-243A4-00-00
Unavailable
46
NUT, CROWN(47X)
90176-05054-00
Unavailable
47
PIPE 15
5VN-243A1-00-00
Unavailable
48
PIPE 11
5VN-24322-10-00
Unavailable
48
PIPE 16
5VN-243A2-00-00
Unavailable
49
PIPE 10
5VN-24321-30-00
Unavailable
50
CLAMP(4GY)
90464-20191-00
Unavailable
51
CLIP
90467-090A2-00
Unavailable
51
CLIP
90467-090A2-00
Unavailable
52
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
53
EMBLEM
35S-2416B-00-00
Unavailable
54
EMBLEM
35S-2417B-00-00
Unavailable
55
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
56
DAMPER, SIDE COVER
5VN-24145-00-00
Unavailable
57
DAMPER, PLATE 1
5VN-2414H-00-00
Unavailable
58
DAMPER, PLATE 2
5VN-2414J-00-00
Unavailable
59
DAMPER, PLATE 3
5VN-2414K-00-00
Unavailable
60
CLAMP(4KM)
90464-25217-00
Unavailable
61
CLAMP
90464-10M59-00
Unavailable
62
CLAMP(4GY)
90464-10190-00
Unavailable
62
CLAMP(4KM)
90464-25217-00
Unavailable
