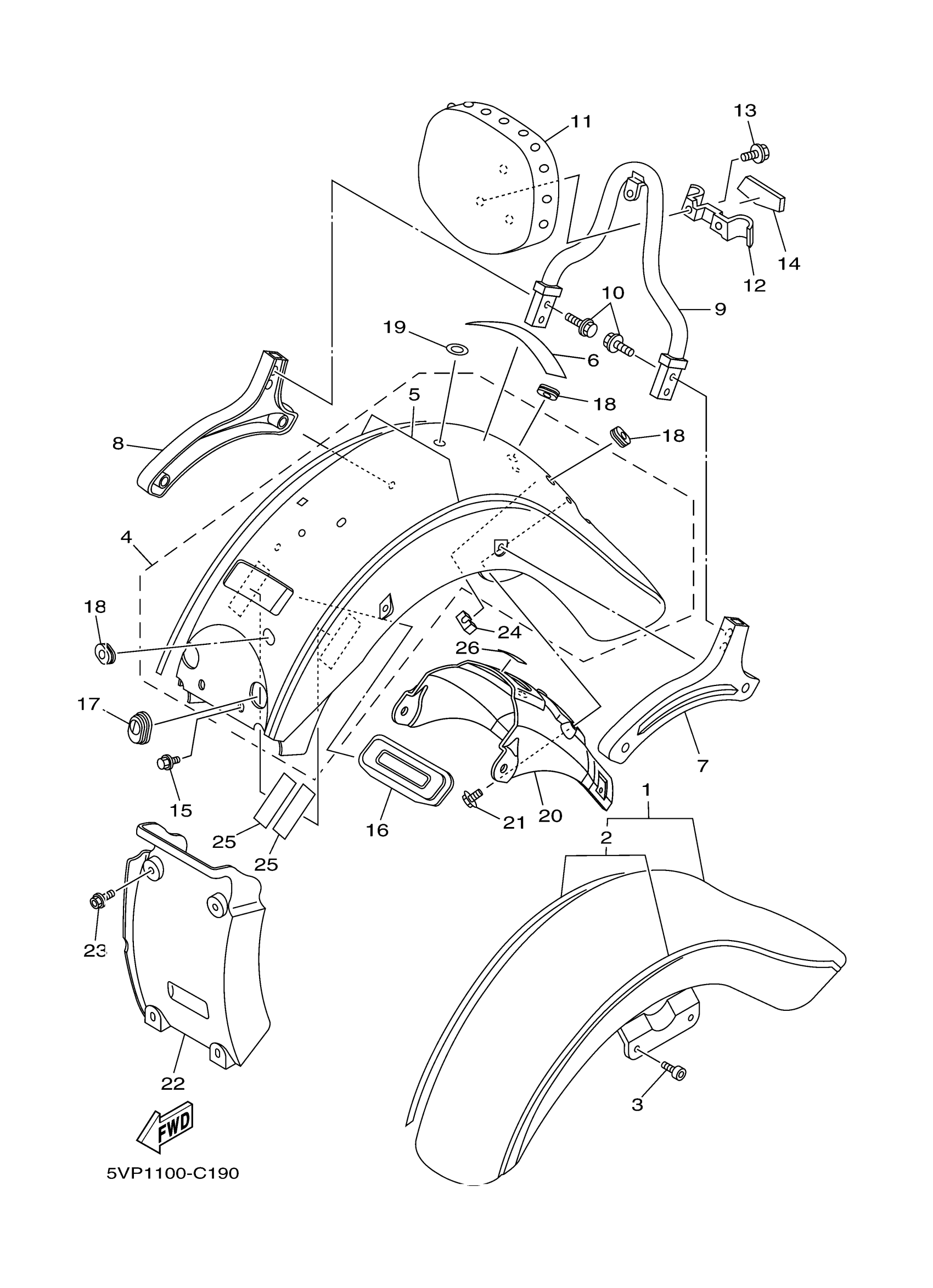

Yamaha XV17ATXL (ROAD STAR SILVERADO) 5VPH 2008 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY
5VN-Y2150-B1-PD
Unavailable
2
. GRAPHIC SET, FRONT FENDER
5VP-21570-10-00
Unavailable
4
REAR FENDER COMP. (DARK PURPLISH BLUE METALLIC U)
5VN-Y2161-J0-P7
Unavailable
5
. GRAPHIC SET,REAR FENDER
5VP-2165A-10-00
Unavailable
7
GRIP 1
5GA-2164A-00-00
Unavailable
8
GRIP 2
5GA-2164E-00-00
Unavailable
9
STAY 1
5GA-2164F-00-00
Unavailable
11
BACK REST ASSY
5GA-2840F-30-00
Unavailable
14
EMBLEM
5GA-24786-01-00
Unavailable
16
DAMPER
4WM-21649-00-00
Unavailable
17
DAMPER 1
4WM-21638-00-00
Unavailable
18
GROMMET
90480-01015-00
Unavailable
19
SEAL 2
5VN-21735-00-00
Unavailable
20
STAY, REAR
5VN-21643-00-00
Unavailable
21
BOLT, FLANGE
95817-06012-00
Unavailable
22
GUARD, MUD
4WM-21629-00-PF
Unavailable
23
BOLT, WITH WASHER
90119-06226-00
Unavailable
24
DAMPER 2
5VN-21639-10-00
Unavailable
25
PROTECTOR
5PW-23472-00-00
Unavailable
26
DAMPER
22F-2139X-00-00
Unavailable
