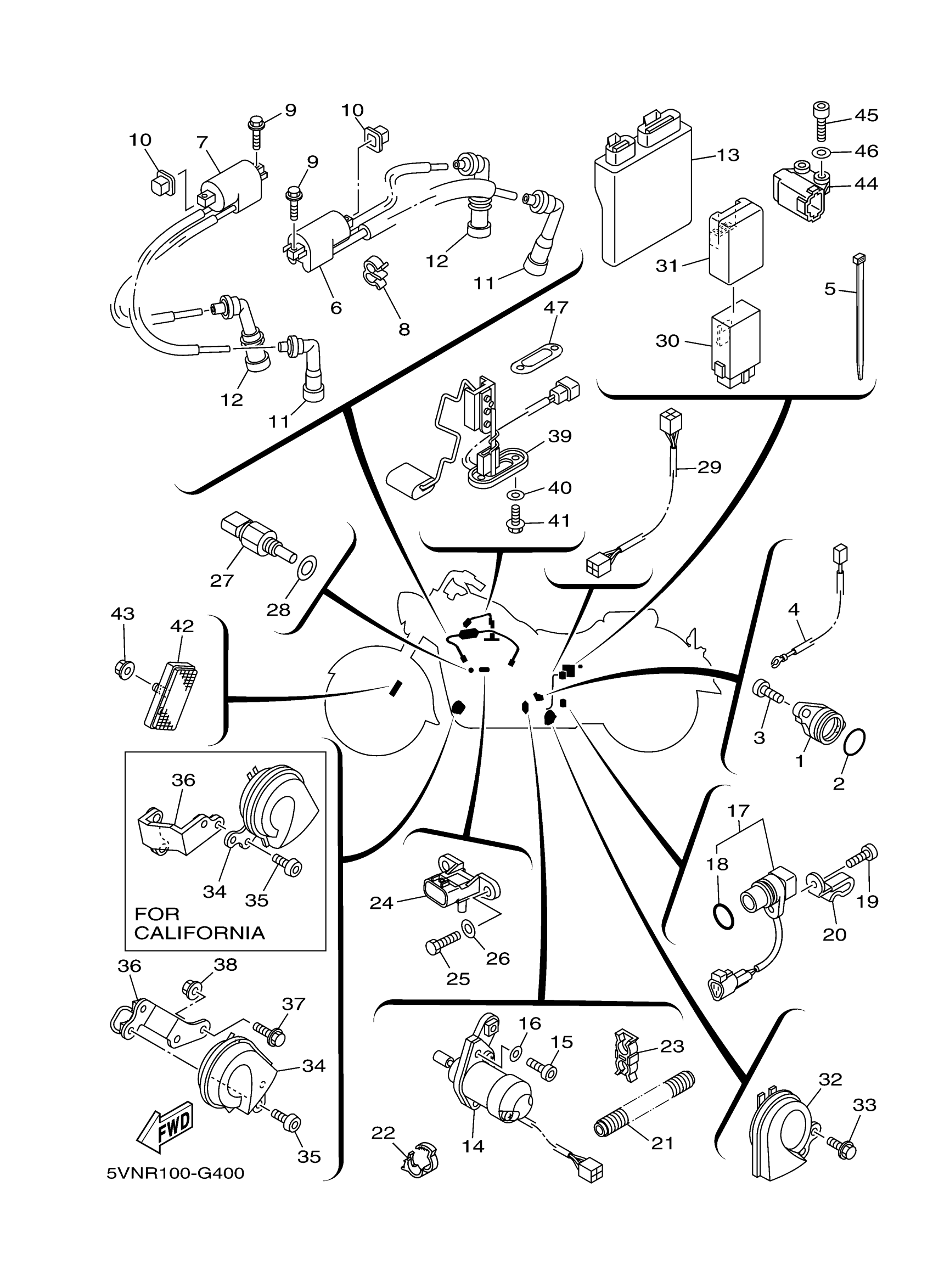

Yamaha XV17ATXL (ROAD STAR SILVERADO) 5VPH 2008 ELECTRICAL 1 Diagram
#
6
IGNITION COIL ASSY
5VN-82310-20-00
Unavailable
7
IGNITION COIL ASSY
4WM-82310-10-00
Unavailable
10
DAMPER, IGNITION COIL
4U8-82317-00-00
Unavailable
16
WASHER, PLATE
90202-06002-00
Unavailable
17
SENSOR, SPEED
5YU-83755-02-00
Unavailable
18
O-RING
4D9-81168-00-00
Unavailable
19
BOLT,SOCKET HEAD
91314-06014-00
Unavailable
20
CLAMP(4MX)
90465-06376-00
Unavailable
21
COVER
5VN-81842-00-00
Unavailable
22
CLAMP
90464-16003-00
Unavailable
23
CLAMP
90464-18266-00
Unavailable
24
SENSOR, PRESSURE
5PS-82380-00-00
Unavailable
25
BOLT(4GV)
97017-05012-00
Unavailable
26
WASHER(1RW)
92907-05600-00
Unavailable
27
THERMO UNIT
5PX-83591-00-00
Unavailable
28
WASHER, PLATE 3412175700
90201-12172-00
Unavailable
29
WIER, LEAD 1
5VN-82583-00-00
Unavailable
30
FLASHER RELAY ASSY
5VN-83350-11-00
Unavailable
31
HOLDER, RELAY
5VN-81952-00-00
Unavailable
32
HORN
4WM-83371-00-00
Unavailable
33
BOLT, FLANGE
95817-06012-00
Unavailable
34
HORN
5VN-83371-00-00
Unavailable
34
HORN
5VN-83371-10-00
Unavailable
35
BOLT, BUTTON HEAD
92017-06012-00
Unavailable
35
BOLT, BUTTON HEAD
92017-06014-00
Unavailable
36
STAY, HORN
5VN-83378-20-00
Unavailable
36
STAY, HORN
5VN-83378-30-00
Unavailable
37
BOLT, WASHER BASED
90105-06009-00
Unavailable
38
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
39
SENDER UNIT ASSY, FUEL METER
5VN-85752-21-00
Unavailable
40
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
41
BOLT, FLANGE
95817-06016-00
Unavailable
42
FRONT REFLECTOR ASSY
11H-85110-01-00
Unavailable
43
NUT, S/L FLANGE
95607-05200-00
Unavailable
44
SENSOR, LEAN ANGLE
5VU-82576-03-00
Unavailable
45
BOLT,SOCKET
91317-04025-00
Unavailable
46
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
47
GASKET, SENDER UNIT
3D8-85753-00-00
Unavailable
