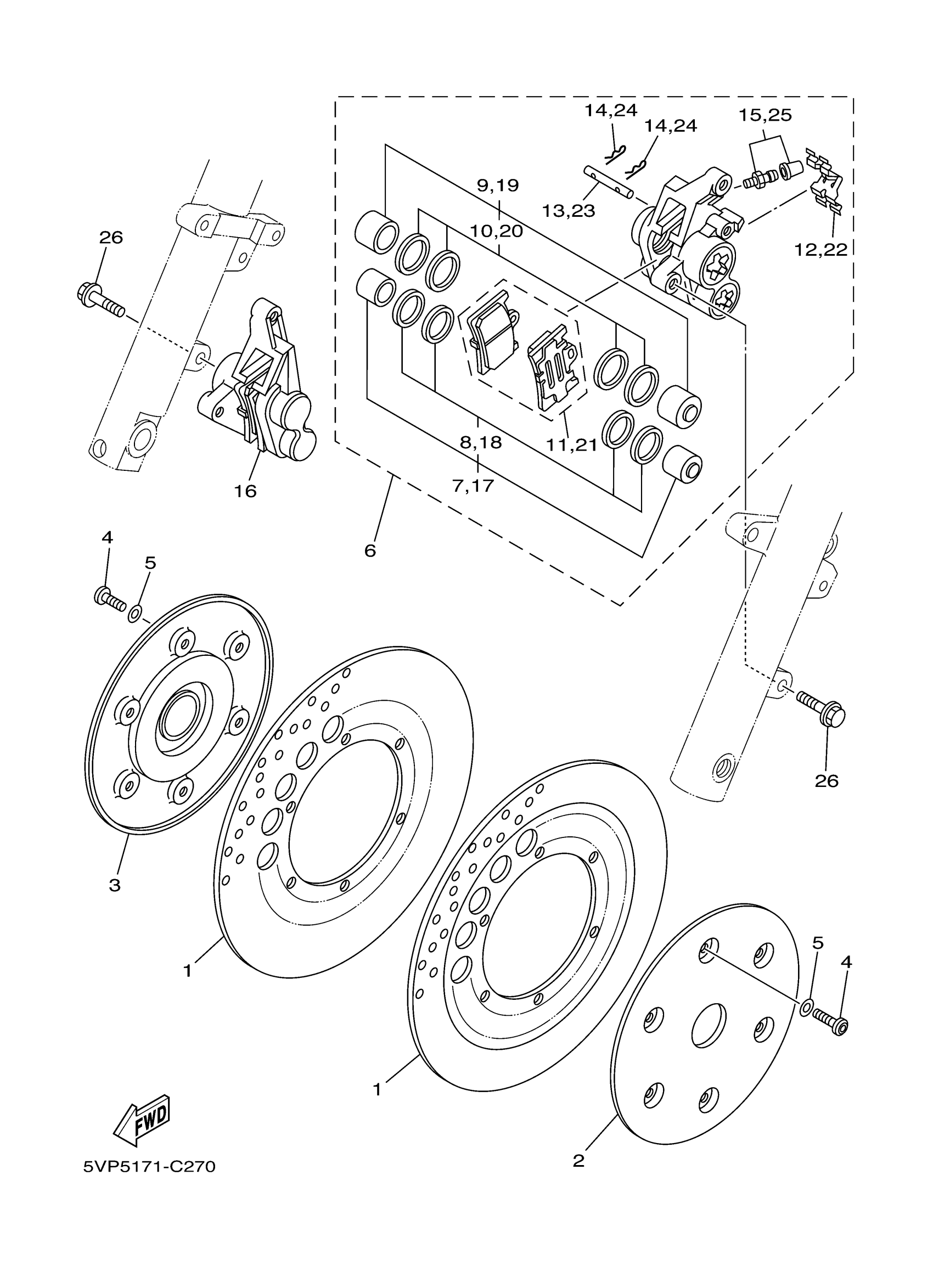

Yamaha XV17ATWC (ROAD STAR SILVERADO CA) 5VPF 2007 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

3JB-2582U-01-00

Unavailable

2

RING, WHEEL 1 (LEFT)

4NK-2514A-00-00

Unavailable

3

RING, WHEEL 2 (RIGHT)

4WM-2515A-00-00

$182.80

4

SCREW

90149-08052-00

$5.59

5

WASHER, PLATE

90201-08014-00

$1.37

6

CALIPER ASSY (LEFT)

5VN-2580T-00-00

$536.99

7

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

8

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

9

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

10

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

11

BRAKE PAD KIT

5VN-25805-00-00

$52.60

12

SUPPORT, PAD

5VN-25919-00-00

$17.61

13

PIN, PAD

4SV-25924-00-00

$34.81

14

CLIP, PAD PIN

3GM-25925-00-00

$9.15

15

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

16

CALIPER ASSY (RIGHT)

5VN-2580U-00-00

Unavailable

17

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

18

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

19

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

20

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

21

BRAKE PAD KIT

5VN-25805-00-00

$52.60

22

SUPPORT, PAD

5VN-25919-00-00

$17.61

23

PIN, PAD

4SV-25924-00-00

$34.81

24

CLIP, PAD PIN

3GM-25925-00-00

$9.15

25

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

26

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
