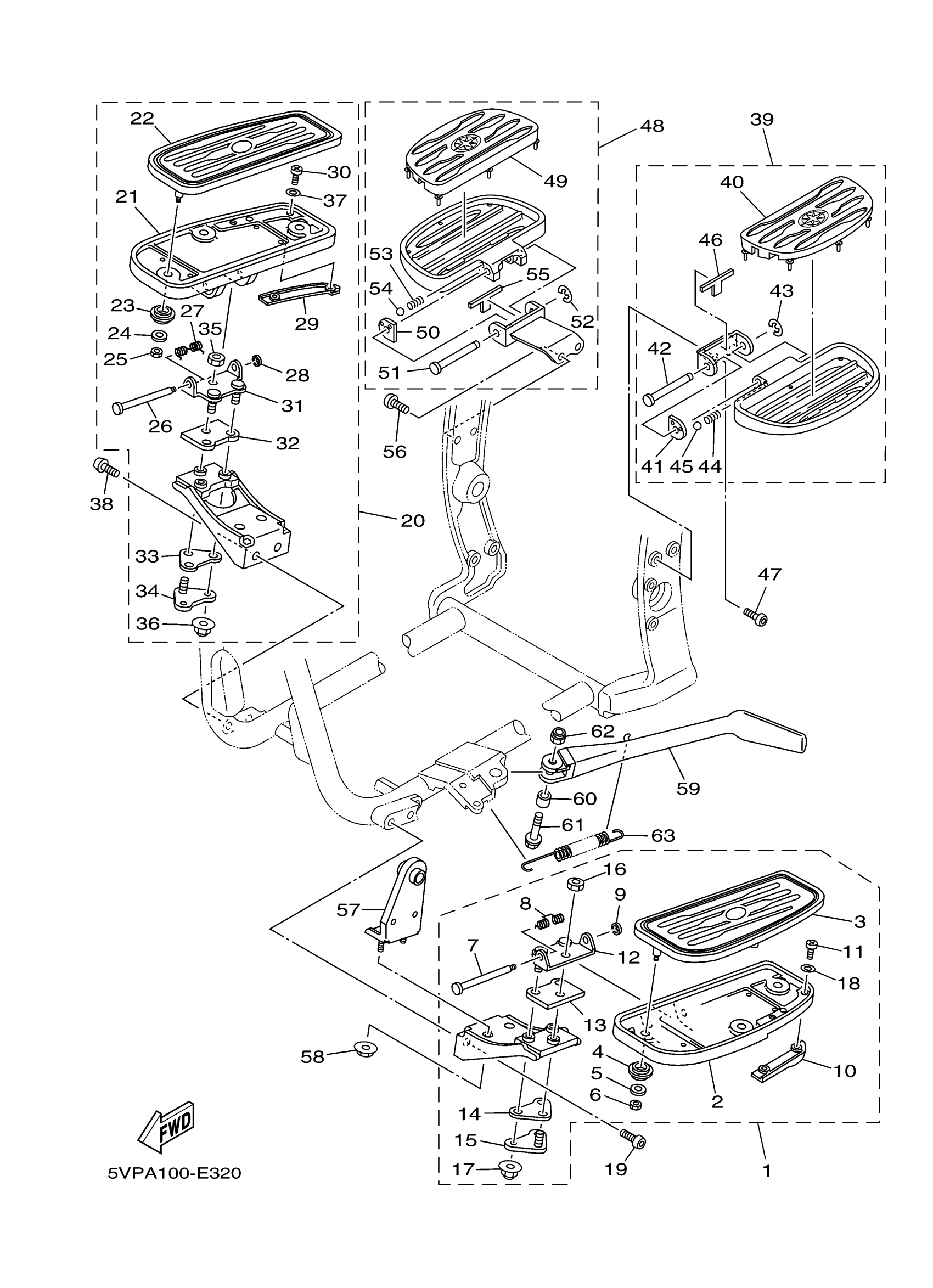

Yamaha XV17ATVC (ROAD STAR SILVERADO CA) 5VPB 2006 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

5VN-27410-00-00

Unavailable

2

FOOTREST

4NK-27451-10-00

Unavailable

3

COVER, FOOTREST

4WM-27413-00-00

Unavailable

4

DAMPER, FOOTREST

4WM-27414-00-00

$5.49

5

WASHER PLATE 829771780000

90201-05033-00

$10.49

6

NUT, U

95617-05100-00

$9.49

7

SHAFT

3D8-27427-00-00

$7.99

8

SPRING, RETURN

4NK-27426-00-00

$6.99

9

CIRCLIP(53L)

99001-06600-00

$1.01

10

MOLE 1

4WM-27496-00-00

Unavailable

11

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

12

BRACKET, FOOTREST 2

5VN-27422-00-00

$29.99

13

DAMPER, FOOTREST

5VN-27414-00-00

$7.99

14

DAMPER, FOOTREST 2

5VN-27424-00-00

$7.99

15

PLATE, SOTPPER

5VN-27123-00-00

Unavailable

16

NUT(6TA)

95317-06600-00

Unavailable

17

. NUT, CAP

90176-06007-00

Unavailable

18

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

19

BOLT, BUTTON HEAD

92017-10020-00

Unavailable

20

FRONT FOOTREST ASSY (RIGHT)

5VN-27420-00-00

Unavailable

21

FOOTREST

4NK-27461-10-00

Unavailable

22

COVER, FOOTREST

4WM-27423-00-00

Unavailable

23

DAMPER, FOOTREST

4WM-27414-00-00

$5.49

24

WASHER PLATE 829771780000

90201-05033-00

$10.49

25

NUT, U

95617-05100-00

$9.49

26

SHAFT

3D8-27427-00-00

$7.99

27

SPRING, RETURN

4NK-27426-00-00

$6.99

28

CIRCLIP(53L)

99001-06600-00

$1.01

29

MOLE 2

4WM-27497-00-00

Unavailable

30

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

31

BRACKET, FOOTREST 2

5VN-27422-00-00

$29.99

32

DAMPER, FOOTREST

5VN-27414-00-00

$7.99

33

DAMPER, FOOTREST 2

5VN-27424-00-00

$7.99

34

PLATE, SOTPPER

5VN-27123-00-00

Unavailable

35

NUT(6TA)

95317-06600-00

Unavailable

36

. NUT, CAP

90176-06007-00

Unavailable

37

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

38

BOLT, BUTTON HEAD

92017-10020-00

Unavailable

39

REAR FOOTREST ASSY 1

2D9-27430-00-00

Unavailable

40

. COVER, REAR FOOTREST

4YE-27433-00-00

Unavailable

41

WASHER, SPECIAL

4YE-27437-01-00

Unavailable

42

. SHAFT

4YE-27427-00-00

Unavailable

43

CIRCLIP(53L)

99001-06600-00

$1.01

44

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

45

BALL

93501-04011-00

Unavailable

46

STOPPER

2D9-2743E-00-00

Unavailable

47

BOLT

90111-08002-00

Unavailable

48

REAR FOOTREST ASSY 2

2D9-27440-00-00

Unavailable

49

. COVER, REAR FOOTREST

4YE-27433-00-00

Unavailable

50

WASHER, SPECIAL

4YE-27437-01-00

Unavailable

51

. SHAFT

4YE-27427-00-00

Unavailable

52

CIRCLIP(53L)

99001-06600-00

$1.01

53

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

54

BALL

93501-04011-00

Unavailable

55

STOPPER

2D9-2743E-00-00

Unavailable

56

BOLT

90111-08002-00

Unavailable

57

BRACKET 3

5VN-27443-00-00

Unavailable

58

NUT, SELF-LOCKING

90185-08169-00

Unavailable

59

STAND, SIDE

4WM-27311-00-00

Unavailable

60

COLLAR(4NK)

90387-1007K-00

Unavailable

61

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable

62

NUT, U

90185-10037-00

Unavailable

63

SPRING, TENSION(36Y)

90506-29358-00

Unavailable
