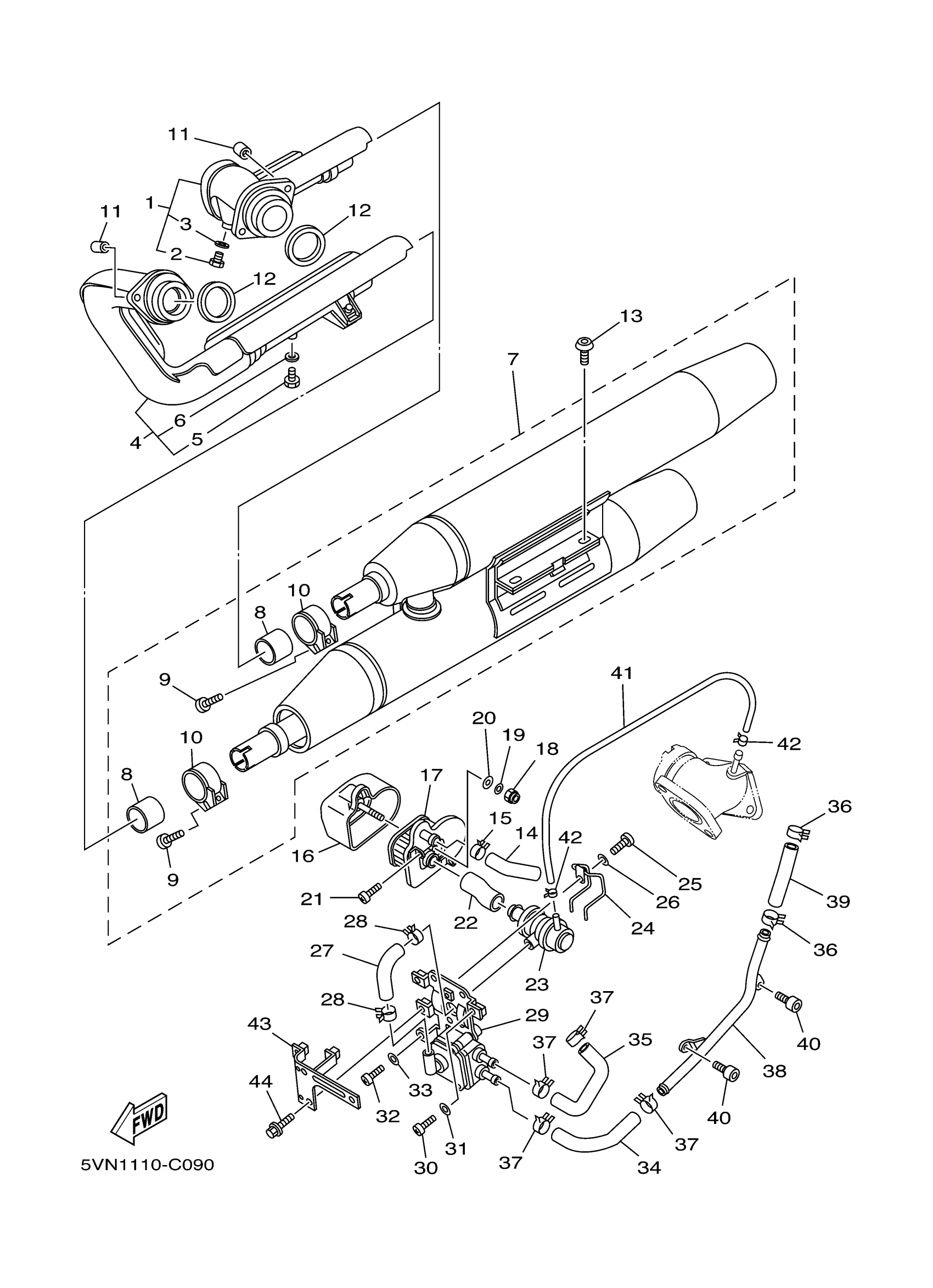

Yamaha XV17ATVC (ROAD STAR SILVERADO CA) 5VPB 2006 EXHAUST Diagram
#
1
EXHAUST PIPE ASSY 1
5VN-14610-00-00
Unavailable
4
EXHAUST PIPE ASSY 2
5VN-14620-00-00
Unavailable
7
MUFFLER ASSY 1
5VN-14710-00-00
Unavailable
14
HOSE, BEND 5
4WM-14885-00-00
Unavailable
16
CASE, AIR CLEANER
4WM-14857-00-00
Unavailable
17
CAP, CASE
4WM-14858-00-00
Unavailable
18
NUT, U
95617-05100-00
Unavailable
19
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
20
WASHER, PLATE (463)
90202-05057-00
Unavailable
21
SCREW, PAN
98517-06012-00
Unavailable
22
HOSE, BEND 2
4WM-14882-00-00
Unavailable
23
AIR CUT VALVE ASSY
5VN-14840-00-00
Unavailable
24
CLAMP
90462-20248-00
Unavailable
25
SCREW, PAN
98507-06010-00
Unavailable
26
WASHER(6TA)
92907-06600-00
Unavailable
27
HOSE, BEND 3
4WM-14883-00-00
Unavailable
29
REED VALVE ASSY
5VN-14808-00-00
Unavailable
30
SCREW PAN HEAD
98580-06010-00
Unavailable
32
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
33
WASHER(6TA)
92907-06600-00
Unavailable
34
HOSE, BEND 4
5VN-14884-00-00
Unavailable
35
HOSE, BEND 6
5VN-14886-00-00
Unavailable
36
CLIP
90468-08104-00
Unavailable
37
CLIP
90467-160A2-00
Unavailable
38
PIPE 1
5VN-14871-00-00
Unavailable
39
HOSE (L64)
90445-16004-00
Unavailable
40
BOLT,SOCKET HEAD
91314-06014-00
Unavailable
41
HOSE, VACUUM SENSING 1
5VN-13542-00-00
Unavailable
42
CLIP(41W)
90467-08092-00
Unavailable
43
BRACKET 2
4WM-14868-00-00
Unavailable
44
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
