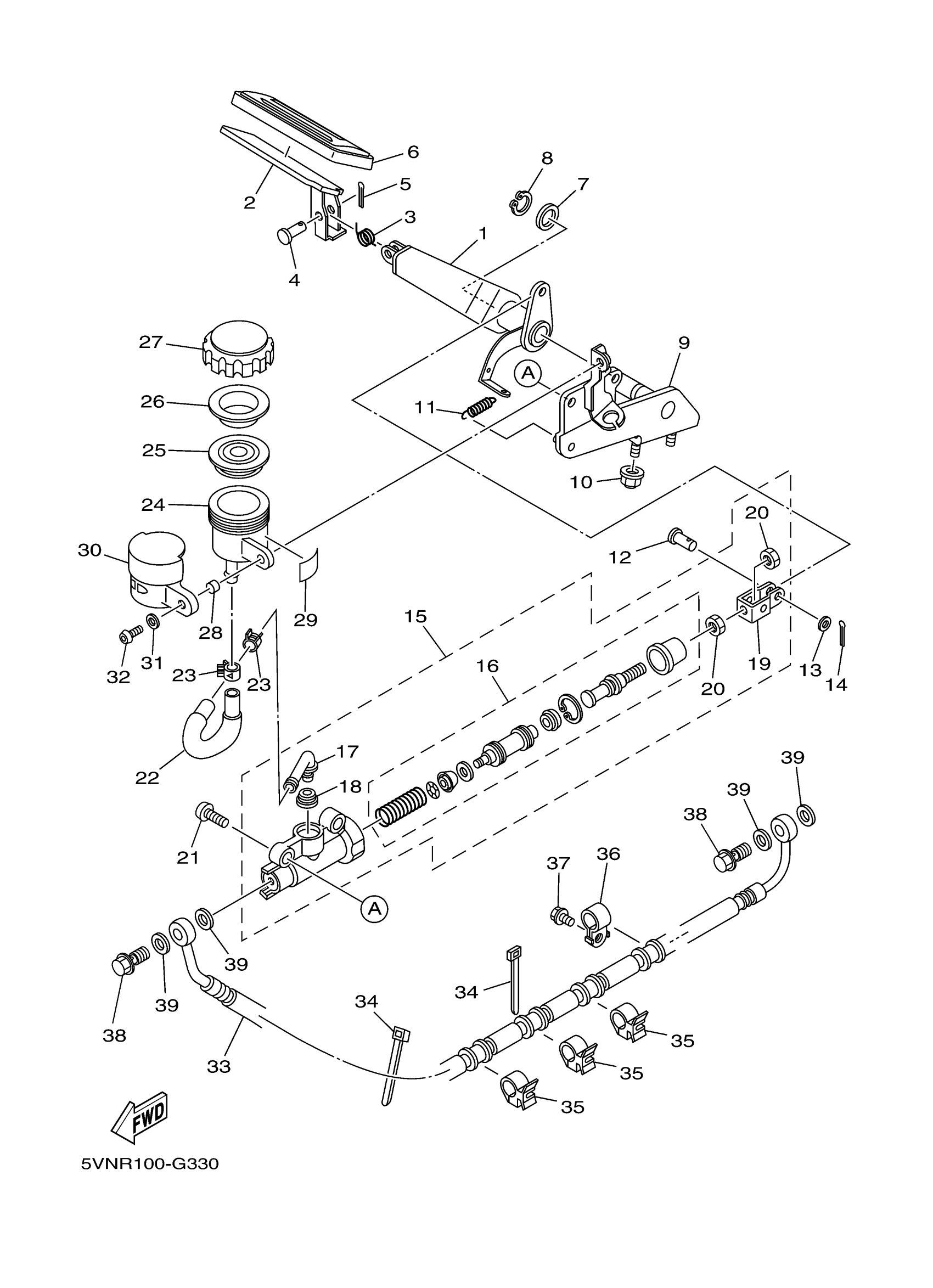

Yamaha XV17ATSXS (ROAD STAR SILVERADO S) 2D9C 2008 REAR MASTER CYLINDER Diagram

PEDAL, BRAKE

4WM-27211-00-00

Unavailable

PEDAL, BRAKE

4WM-27242-00-00

Unavailable

SPRING, TORSION

90508-18023-00

$7.49

PIN, COTTER (1W2)

91701-06022-00

$2.49

PIN, COTTER (648)

91490-20015-00

$2.20

CAP

4WM-27285-00-00

Unavailable

WASHER, PLATE(2GV)

90201-152L1-00

$10.49

CIRCLIP(1AR)

99009-15400-00

$8.49

BRACKET SUB ASSY (LEFT)

5VN-2740A-00-00

Unavailable

NUT, SELF-LOCKING

90185-08169-00

$8.49

SPRING, TENSION

90506-20009-00

$5.60

PIN W/HOLE 307181180000

90240-08013-00

$8.49

WASHER, PLATE 1562722600

90201-08083-00

$9.49

PIN, COTTER

91490-16020-00

Unavailable

RR. MASTER CYLINDER ASSY.

4BP-2583V-01-00

$268.99

CYLINDER KIT, MASTER

3TU-W0042-51-00

Unavailable

JOINT

4BP-2582A-00-00

Unavailable

O-RING

4BP-2585F-01-00

Unavailable

JOINT

4BP-27222-02-00

Unavailable

NUT

90170-08010-00

Unavailable

BOLT, BUTTON HEAD(3YF)

92014-08025-00

Unavailable

HOSE, RESERVOIR

4WM-25895-00-00

Unavailable

CLIP (5K4)

90467-14057-00

Unavailable

TANK, RESERVOIR

31A-25894-10-00

Unavailable

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

COLLAR

90387-06072-00

Unavailable

SEAL

1UF-15379-00-00

Unavailable

COVER, RESERVOIR TANK

4NK-25888-00-00

Unavailable

WASHER, PLATE(52G)

90201-064J1-00

Unavailable

BOLT, BUTTON HEAD

92014-06020-00

Unavailable

HOSE, BRAKE 4

5VN-2581J-00-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

CLAMP(4HM)

90464-15192-00

Unavailable

CLAMP 1

90461-08031-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable

BOLT, UNION

90401-10020-00

Unavailable

GASKET

90430-10005-00

Unavailable
