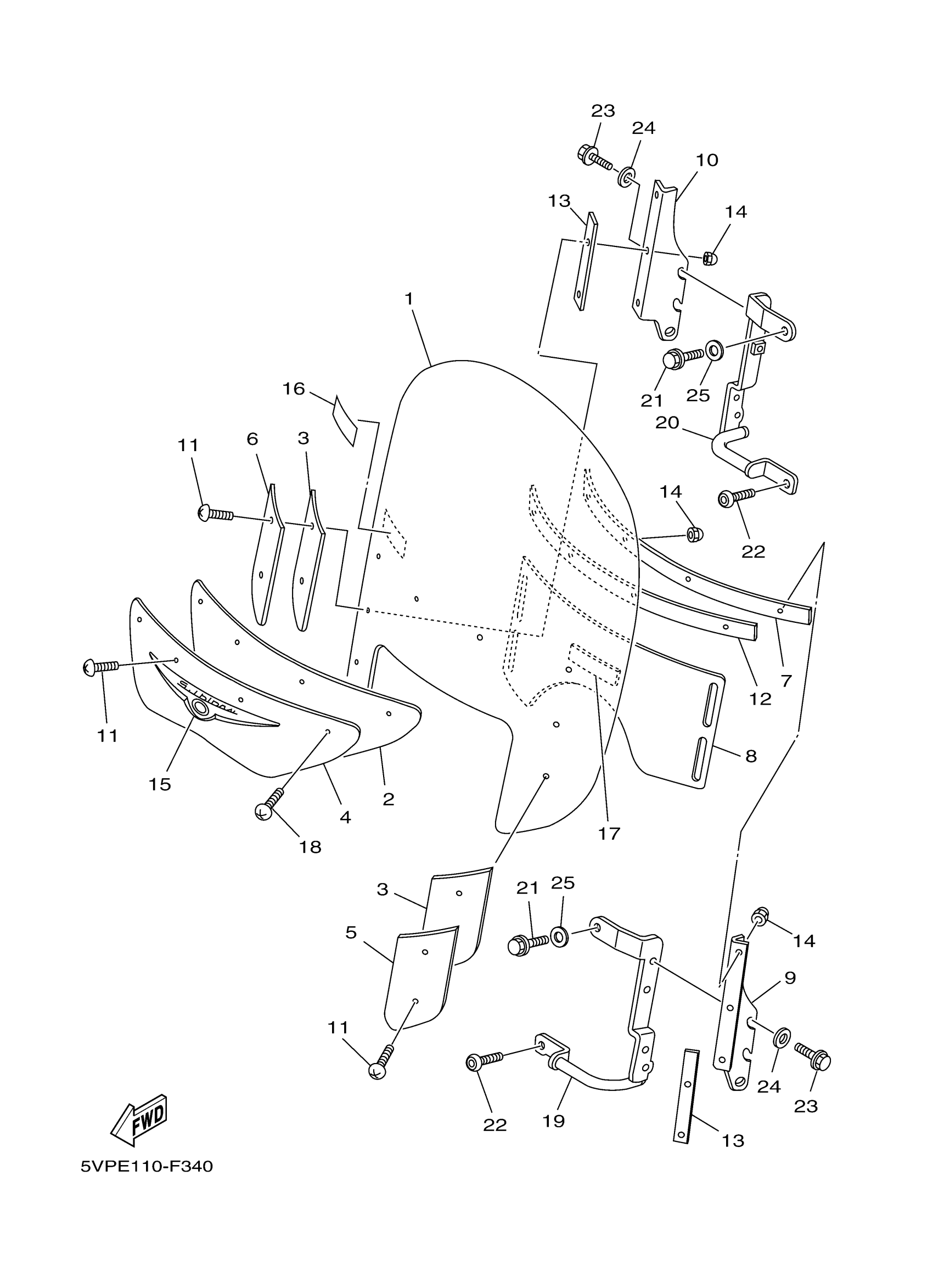

Yamaha XV17ATSXS (ROAD STAR SILVERADO S) 2D9C 2008 COWLING 1 Diagram
#
Description
Price
1
SCREEN
STR-4NL07-11-00
Unavailable
2
DAMPER 5
4NL-F837J-00-00
Unavailable
3
DAMPER 6
4NL-F837K-00-00
Unavailable
4
PLATE
4NL-F8336-00-00
Unavailable
5
PLATE 2
4NL-F8397-00-00
Unavailable
6
PLATE 1
4NL-F8396-00-00
Unavailable
7
HOLDER
4NL-F8337-00-00
Unavailable
8
COVER, HEADLIGHT
5GA-F838E-00-00
Unavailable
9
BRACKET 1
5GA-F836A-00-00
Unavailable
10
BRACKET 2
5GA-F836E-00-00
Unavailable
11
SCREW, COWLING 1
4NL-F8354-00-00
Unavailable
12
MOLE 1
4NL-F8345-00-00
Unavailable
13
MOLE 2
4NL-F8346-00-00
Unavailable
14
NUT
4NL-F8362-00-00
Unavailable
15
EMBLEM
5GA-28315-00-00
Unavailable
16
LABEL, NOTICE WINDSHIELD 1
2C5-F815K-00-00
Unavailable
17
SEAL
4NL-F8307-00-00
Unavailable
18
BOLT, BUTTON HEAD
4NL-F8355-00-00
Unavailable
19
STAY 1
5GA-28356-01-00
Unavailable
20
STAY 2
5GA-28357-01-00
Unavailable
21
BOLT, FLANGE(3XC)
95824-10030-00
Unavailable
22
BOLT, BUTTON HEAD(3YF)
92014-08035-00
Unavailable
23
BOLT, FLANGE(4HM)
95814-08020-00
Unavailable
24
WASHER, PLATE (3L5)
90201-08772-00
Unavailable
25
WASHER PLATE 341222430000
90201-10142-00
Unavailable
