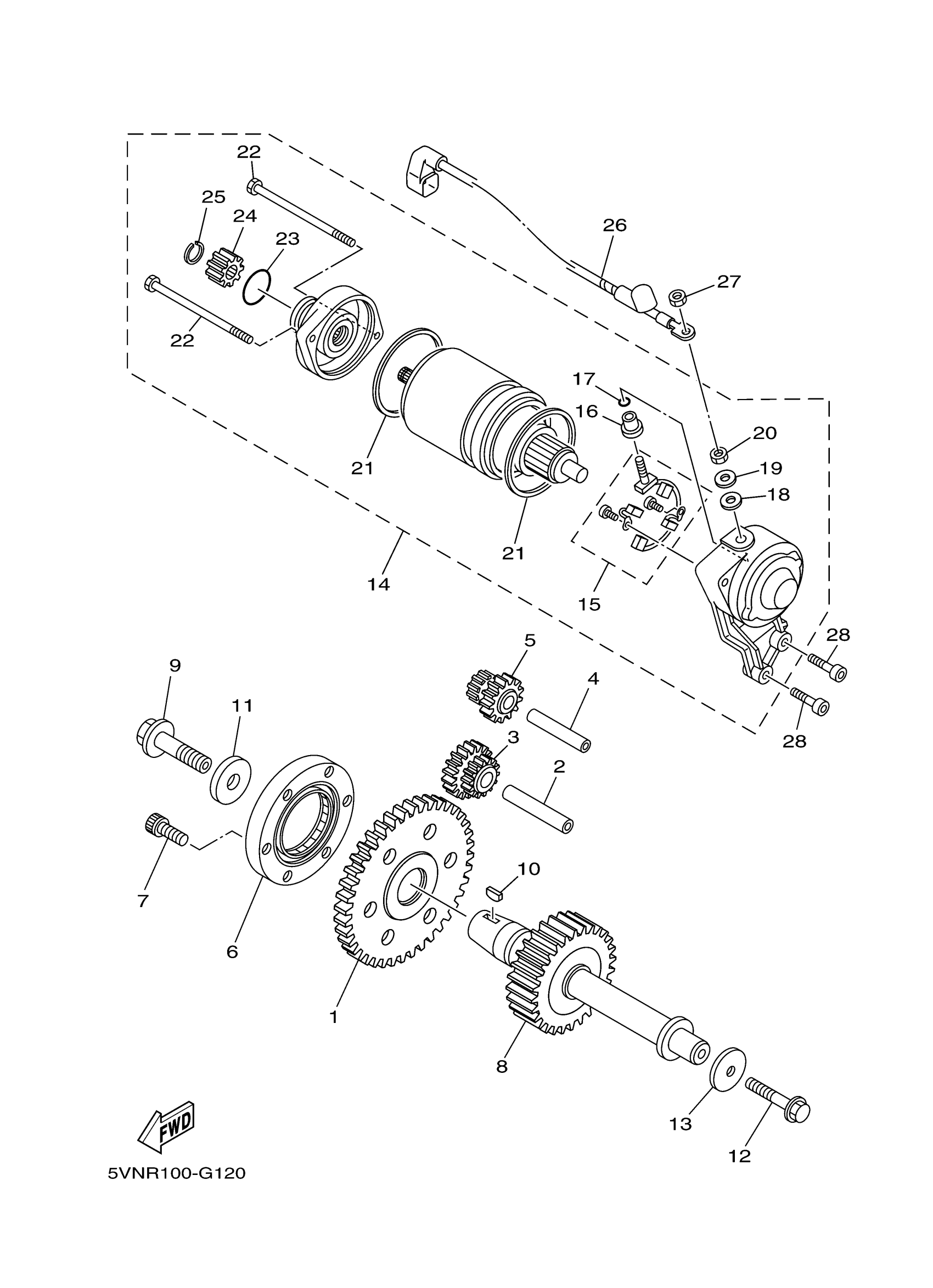

Yamaha XV17ATSEG (ROAD STAR SILVERADO S) 2PF1 2014 STARTER Diagram

#

Description
Price

1

GEAR 3

4WM-15515-00-00

Unavailable

2

SHAFT 2

4WM-15522-00-00

Unavailable

3

GEAR, IDLER 2

4WM-15517-00-00

Unavailable

4

SHAFT 1

4WM-15521-00-00

$13.49

5

GEAR, IDLER 1

4WM-15512-00-00

Unavailable

6

STARTER ONE-WAY ASSY

4WM-15590-00-00

$305.99

7

BOLT,SOCKET

91314-08020-00

$8.49

8

SHAFT

5VN-15659-00-00

Unavailable

9

BOLT, WASHER BASED

90105-12005-00

$29.99

10

KEY, WOODRUFF

90280-05001-00

$12.49

11

WASHER, PLATE

90201-12008-00

$14.99

12

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

13

WASHER

4WM-15653-00-00

Unavailable

14

MOTOR ASSY

5VN-81890-00-00

Unavailable

15

BRUSH SET

1D7-81801-00-00

$73.99

16

BUSH, TERMINAL

5PX-8182G-00-00

Unavailable

17

O-RING (26H)

93210-06632-00

Unavailable

18

WASHER, PLAIN

5PX-8181L-00-00

Unavailable

19

WASHER

1D7-81835-00-00

Unavailable

20

NUT(650)

95380-06700-00

Unavailable

21

GASKET

5PX-81861-00-00

Unavailable

22

SCREW

5VN-81846-00-00

Unavailable

23

O-RING(1RL)

93210-25711-00

Unavailable

24

GEAR, STARTING MOTOR

5PX-15511-00-00

Unavailable

25

CIRCLIP

99009-10800-00

Unavailable

26

CORD COMP.

5VN-8183G-00-00

Unavailable

27

NUT(650)

95380-06700-00

Unavailable

28

BOLT,SOCKET HEAD

91314-06025-00

Unavailable
