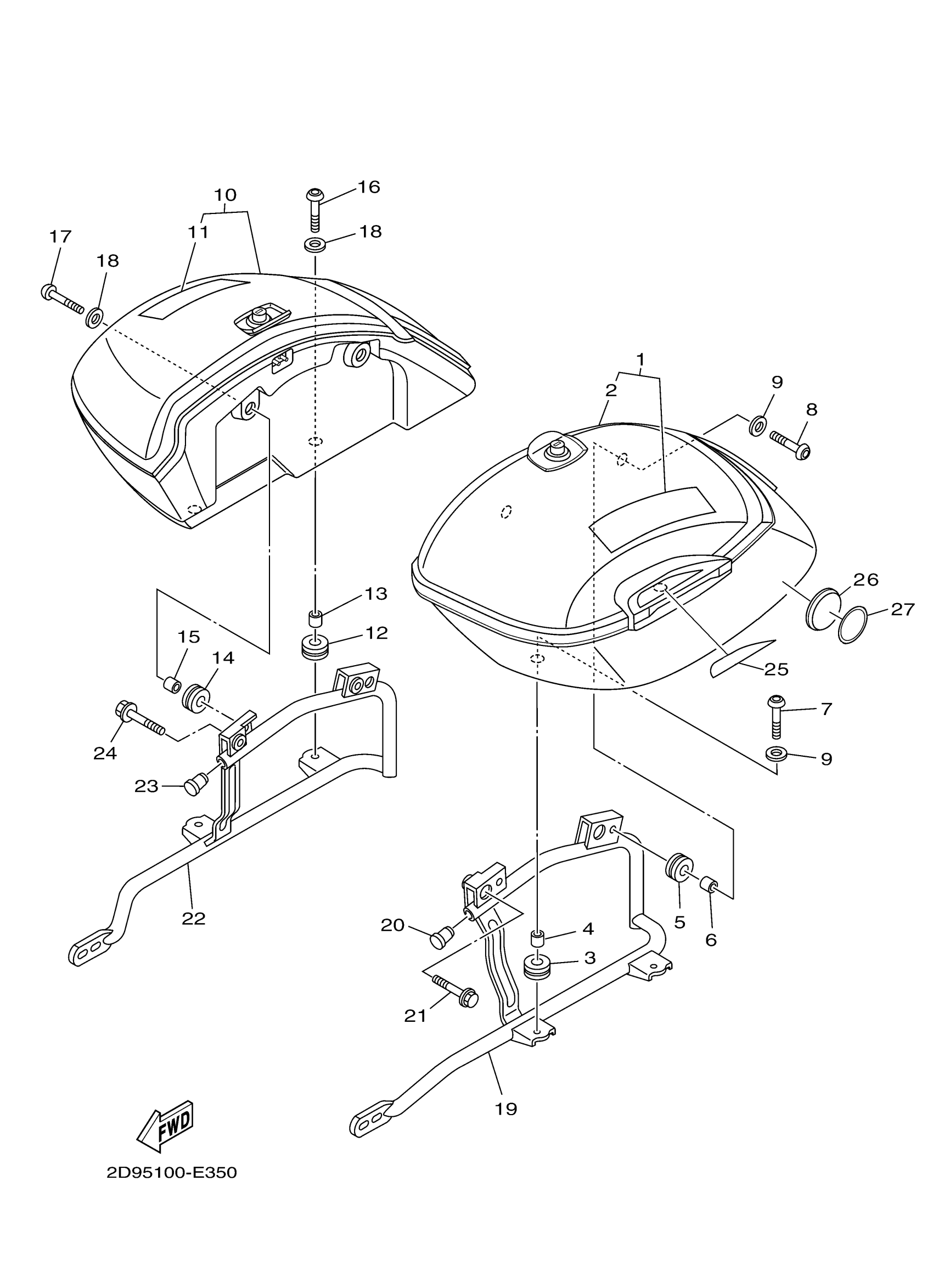

Yamaha XV17ATSEG (ROAD STAR SILVERADO S) 2PF1 2014 SADDLEBAG 1 Diagram

#

Description
Price

1

SADDLEBAG COMP. 1

STR-4WM72-11-DS

Unavailable

2

. LABEL, CAUTION

5GA-F8446-00-00

Unavailable

3

GROMMET 437147470000

90480-20132-00

$8.49

4

COLLAR(88R)

90387-061Y7-00

$4.56

5

GROMMET

90480-20338-00

$4.14

6

COLLAR (8A7)

90387-06518-00

$7.49

7

BOLT, BUTTON

92017-06030-00

$8.49

8

BOLT, BUTTON HEAD

92017-06025-00

$9.49

9

WASHER PLATE 248217570000

90201-06074-00

$9.49

10

SADDELBAG COMP. 2

STR-4WM72-12-DS

Unavailable

11

. LABEL, CAUTION

5GA-F8446-00-00

Unavailable

12

GROMMET 437147470000

90480-20132-00

$8.49

13

COLLAR(88R)

90387-061Y7-00

$4.56

14

GROMMET

90480-20338-00

$4.14

15

COLLAR (8A7)

90387-06518-00

$7.49

16

BOLT, BUTTON

92017-06030-00

$8.49

17

BOLT, BUTTON HEAD

92017-06025-00

$9.49

18

WASHER PLATE 248217570000

90201-06074-00

$9.49

19

FRAME, SADDLEBAG 1

5GA-28473-01-00

Unavailable

20

PLUG

90338-19212-00

Unavailable

21

BOLT, FLANGE

95817-08050-00

Unavailable

22

FRAME, SADDLEBAG 2

5GA-28474-01-00

Unavailable

23

PLUG

90338-19212-00

Unavailable

24

BOLT, FLANGE

95817-08050-00

Unavailable

25

SILVERADO EMBLEM SET

4WM-F8445-V0-00

Unavailable

26

. REFLECTOR BASE, LEFT

STR-4WM72-15-01

Unavailable

26

. REFLECTOR BASE, RIGHT

STR-4WM72-15-02

Unavailable

27

. RED REFLECTOR

STR-4WM72-15-00

Unavailable
