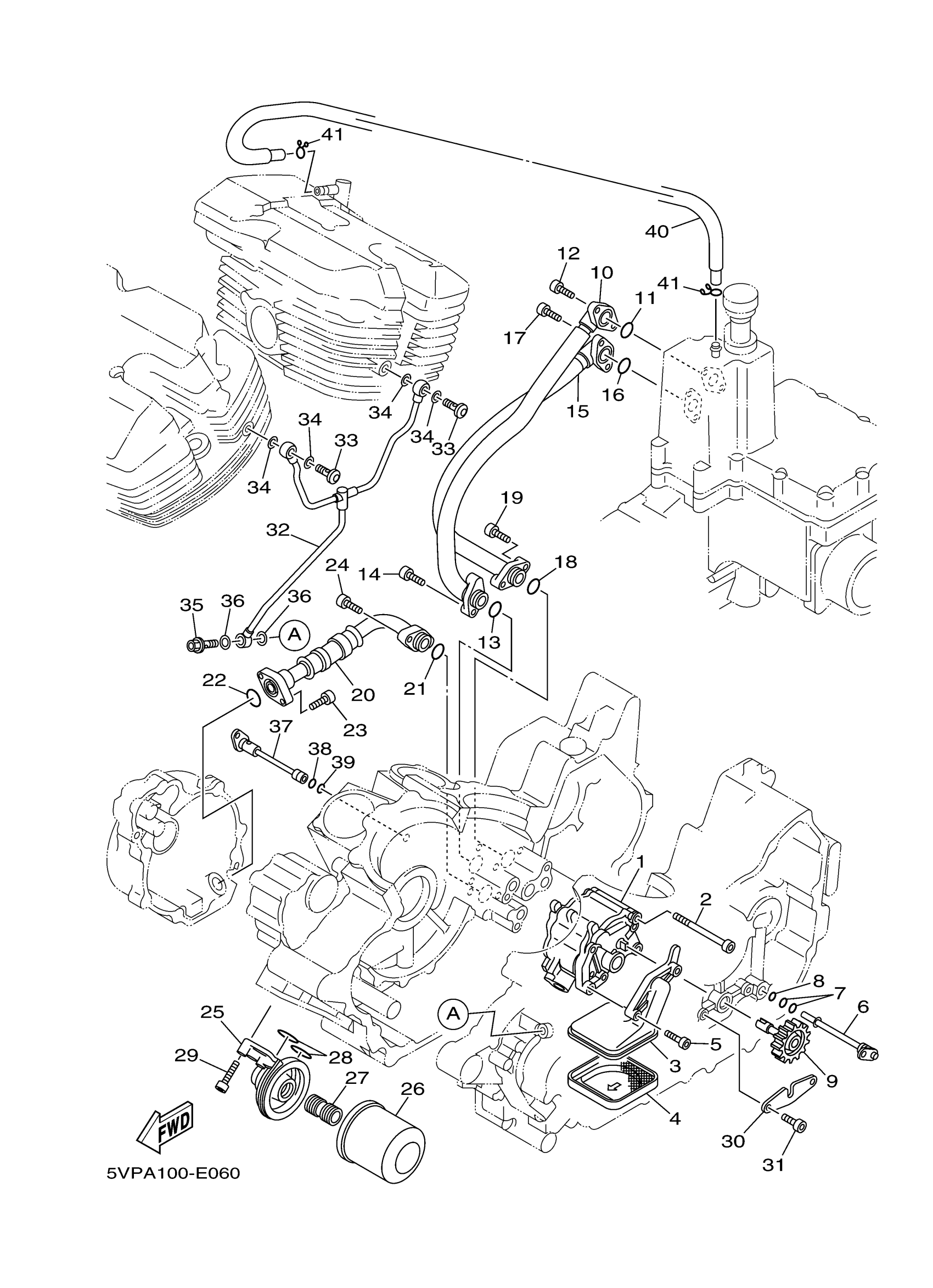

Yamaha XV17ATSEG (ROAD STAR SILVERADO S) 2PF1 2014 OIL PUMP Diagram
#
1
OIL PUMP ASSY
5PX-13300-03-00
Unavailable
2
BOLT, HEXAGON SOCKET HEAD
90110-06309-00
Unavailable
3
HOUSING, STRAINER
4WM-13412-00-00
Unavailable
4
STRAINER, OIL
4WM-13411-00-00
Unavailable
5
BOLT, HEXAGON SOCKET HEAD
90110-06058-00
Unavailable
6
PIPE, DELIVERY 2
4WM-13171-00-00
Unavailable
10
PIPE, OIL 1
4WM-13416-01-00
Unavailable
12
BOLT,SOCKET
91317-06020-00
Unavailable
15
PIPE, OIL 2
4WM-13418-00-00
Unavailable
17
BOLT,SOCKET
91317-06020-00
Unavailable
20
PIPE, DELIVERY 1
5PX-13161-00-00
Unavailable
21
O-RING(36Y)
93210-13657-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD
90110-06106-00
Unavailable
25
PLATE, ADAPTOR
5MB-13461-00-00
Unavailable
26
ELEMENT ASSY, OIL CLEANER
3FV-13440-31-00
Unavailable
27
BOLT, UNION
90401-20007-00
Unavailable
28
O-RING (4V2)
93210-23326-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
30
PLATE, STOPPER 1
4WM-1357N-01-00
Unavailable
31
BOLT,SOCKET
91317-06016-00
Unavailable
32
OIL PIPE COMP. 1
5VN-13405-00-00
Unavailable
33
BOLT, UNION
90401-10175-00
Unavailable
34
GASKET
90430-10188-00
Unavailable
35
BOLT, UNION
90401-08176-00
Unavailable
36
GASKET
90430-08119-00
Unavailable
37
PIPE, DELIVERY 3
4WM-13181-00-00
Unavailable
38
O-RING
93210-08003-00
Unavailable
39
O-RING (11M)
93210-07540-00
Unavailable
40
HOSE, OIL 1
5VN-13464-00-00
Unavailable
41
CLIP
90467-100A1-00
Unavailable
