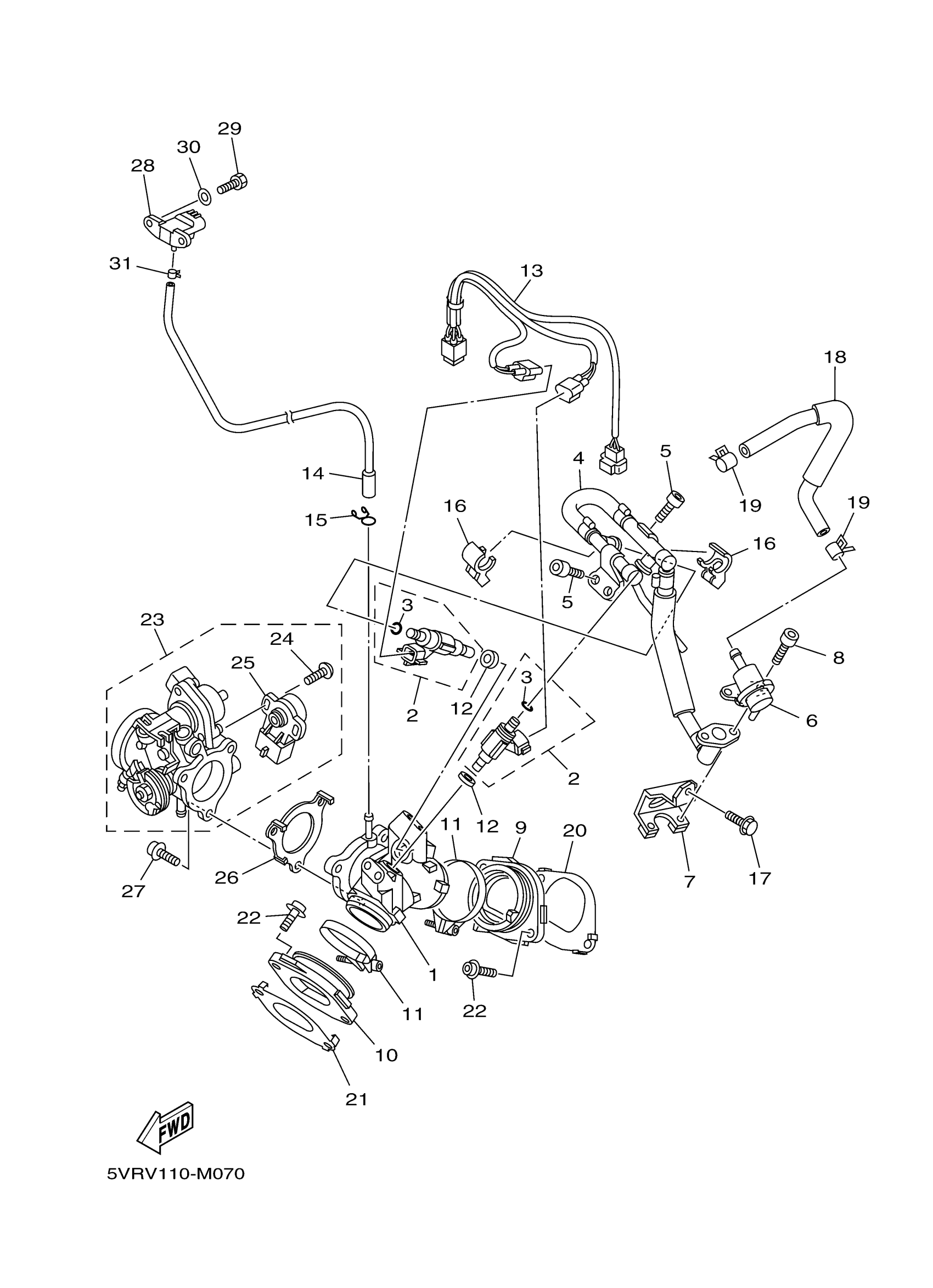

Yamaha XV17ATSDL (ROAD STAR SILVERADO S) 2D9U 2013 INTAKE Diagram

#

Description
Price

1

MANIFOLD

5VN-13640-00-00

$275.99

2

INJECTOR

5VN-13761-00-00

$237.99

3

O-RING

5FL-14147-00-00

$15.49

4

PIPE INLET ASSEMBLY

5VN-13930-00-00

Unavailable

5

BOLT (33M)

91312-06014-00

$5.60

6

REGULATOR, PRESSURE

5UX-13906-00-00

$195.99

7

BRACKET 1

5VN-14291-00-00

Unavailable

8

BOLT, SOCKET

91317-05016-00

$3.28

9

JOINT, CARBURETOR 2

5VN-13596-01-00

$149.99

10

JOINT, CARBURETOR 3

5VN-13597-01-00

Unavailable

11

HOSE CLAMP ASSY

90450-62006-00

$12.49

12

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

13

WIRE, SUB LEAD

5VN-81517-10-00

Unavailable

14

HOSE, AIR

5VN-13895-00-00

Unavailable

15

CLIP (16G)

90467-08021-00

$8.49

16

HOLDER

3D8-14261-00-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

18

PIPE, FUEL 3

5VN-13973-00-00

Unavailable

19

CLIP(3YX)

90467-13133-00

Unavailable

20

SEAL

5VN-14457-00-00

Unavailable

21

SEAL

5VN-14462-00-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06048-00

Unavailable

23

THROTTLE BODY ASSY

5VN-13750-10-00

Unavailable

24

SCREW

8CC-14216-10-00

Unavailable

25

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

26

SEAL

5VN-14467-00-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-06069-00

Unavailable

28

SENSOR, PRESSURE

5PS-82380-00-00

Unavailable

29

BOLT(4TW)

97017-05016-00

Unavailable

30

WASHER(1RW)

92907-05600-00

Unavailable

31

CLIP(42X)

90467-07093-00

Unavailable
