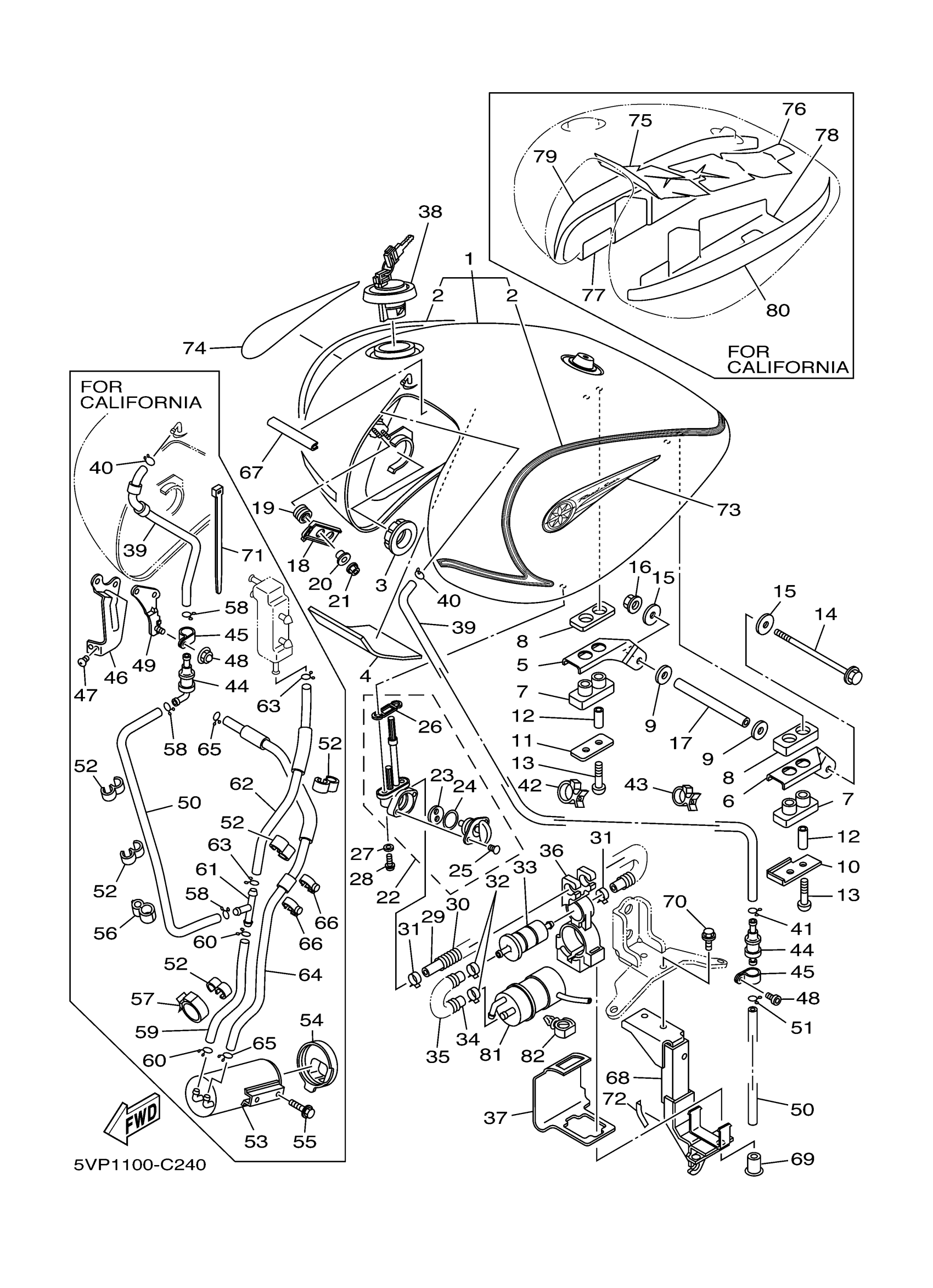

Yamaha XV17ATSC (ROAD STAR SILVERADO CA) 5VP2 2004 FUEL TANK Diagram
#
1
FUEL TANK COMP. (LIGHT YELLOWISH GRAY ME 9) (MARSHAL GOLD)
4WM-Y2410-31-W9
Unavailable
1
FUEL TANK COMP. (BLACK METALLIC X)
4WM-YK241-31-P7
Unavailable
2
. GRAPHIC SET (MARSHAL GOLD)
5GA-24240-60-00
Unavailable
4
SEAL
5VN-2414G-00-00
Unavailable
5
BRACKET, FUEL TANK 1
5MB-24191-00-00
Unavailable
6
BRACKET, FUEL TANK 2
5MB-24192-00-00
Unavailable
7
DAMPER, LOCATING 1
5MB-24181-00-00
Unavailable
10
WASHER, SPECIAL
5MB-24186-00-00
Unavailable
11
WASHER, SPECIAL
2GH-24186-00-00
Unavailable
12
COLLAR
90387-06062-00
Unavailable
14
BOLT, FLANGE
95817-06140-00
Unavailable
15
WASHER, PLATE 1012832300
90201-06066-00
Unavailable
16
NUT, CROWN(1FN)
90176-06055-00
Unavailable
17
COLLAR
90387-06061-00
Unavailable
18
BRACKET, FUEL TANK 1
4WM-24291-00-00
Unavailable
19
GROMMET
4WM-24339-00-00
Unavailable
20
COLLAR(82M)
90387-050T5-00
Unavailable
21
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
22
FUEL COCK ASSY 1
4WM-24500-10-00
Unavailable
23
VALVE PACKING
3AC-24523-00-00
Unavailable
24
SEAL, COCK
3AJ-24534-01-00
Unavailable
25
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
26
O-RING
4X8-24512-00-00
Unavailable
27
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
28
SCREW 256241430000
90149-06011-00
Unavailable
29
PIPE, FUEL 1
5VN-24311-00-00
Unavailable
30
SPRING
4WM-24393-00-00
Unavailable
31
CLIP (7K7)
90467-11044-00
Unavailable
32
CLIP(3YX)
90467-13133-00
Unavailable
33
FILTER ASSY
1FK-24560-10-00
Unavailable
34
PIPE 2
4WM-24312-00-00
Unavailable
35
SPRING
4WM-24394-00-00
Unavailable
36
BAND 1
4WM-24398-00-00
Unavailable
37
COVER
4WM-24217-00-00
Unavailable
38
CAP ASSY
4NK-24602-20-00
Unavailable
39
PIPE 10
5VN-24321-00-00
Unavailable
39
PIPE 10
5VN-24321-10-00
Unavailable
40
CLIP
90467-09002-00
Unavailable
41
CLIP
90467-090A2-00
Unavailable
42
CLAMP(4KM)
90464-25217-00
Unavailable
43
CLAMP(4HM)
90464-15192-00
Unavailable
44
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
44
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
45
CLAMP
90464-15014-00
Unavailable
45
CLAMP
90464-15014-00
Unavailable
46
BRACKET 4
4WM-2148X-00-00
Unavailable
47
GASKET, EXHAUST
98507-05008-00
Unavailable
48
NUT, CROWN(47X)
90176-05054-00
Unavailable
48
SCREW, BINDING
98907-05012-00
Unavailable
49
STAY
5VN-24662-00-00
Unavailable
50
PIPE 11
5VN-24322-00-00
Unavailable
50
HOSE (L400)
90445-116K9-00
Unavailable
51
CLIP
90467-100A1-00
Unavailable
52
CLAMP(6M7)
90464-09M31-00
Unavailable
53
CANISTER ASSY
4WM-24170-00-00
Unavailable
54
COVER, CANISTER
4WM-2419E-00-00
Unavailable
55
BOLT, FLANGE
95817-06025-00
Unavailable
56
CLAMP(4GL)
90464-10233-00
Unavailable
57
CLAMP(4GY)
90464-20191-00
Unavailable
58
CLIP
90467-090A2-00
Unavailable
59
PIPE 12
5VN-24323-00-00
Unavailable
60
CLIP
90467-090A2-00
Unavailable
61
WAY 3 (10L)
90413-07007-00
Unavailable
62
PIPE, OVERFLOW
5VN-24318-00-00
Unavailable
63
CLIP
90467-090A2-00
Unavailable
64
PIPE, SUCTION 1
5VN-24335-00-00
Unavailable
65
CLIP
90467-090A2-00
Unavailable
66
CLAMP(4GL)
90464-11201-00
Unavailable
67
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
68
BRACKET, FUEL PUMP
5VN-24491-00-00
Unavailable
69
NUT (8J2)
90179-05271-00
Unavailable
70
BOLT, FLANGE
95817-06016-00
Unavailable
71
CLAMP
5Y9-12491-00-00
Unavailable
72
MOLD, FUEL TANK
5VN-24188-00-00
Unavailable
73
EMBLEM
5VN-2416B-11-00
Unavailable
73
EMBLEM
5VN-2416B-21-00
Unavailable
74
EMBLEM
5VN-2417B-11-00
Unavailable
74
EMBLEM
5VN-2417B-21-00
Unavailable
75
DAMPER, SIDE COVER
5VN-24145-00-00
Unavailable
76
DAMPER, SIDE COVER
5VN-24145-10-00
Unavailable
77
DAMPER, SIDE COVER
5VN-24145-20-00
Unavailable
78
DAMPER, SIDE COVER
5VN-24145-30-00
Unavailable
79
DAMPER, SIDE COVER
5VN-24145-40-00
Unavailable
80
DAMPER, SIDE COVER
5VN-24145-50-00
Unavailable
81
FUEL PUMP COMP
5VN-13907-01-00
Unavailable
82
CLAMP
90464-13249-00
Unavailable
