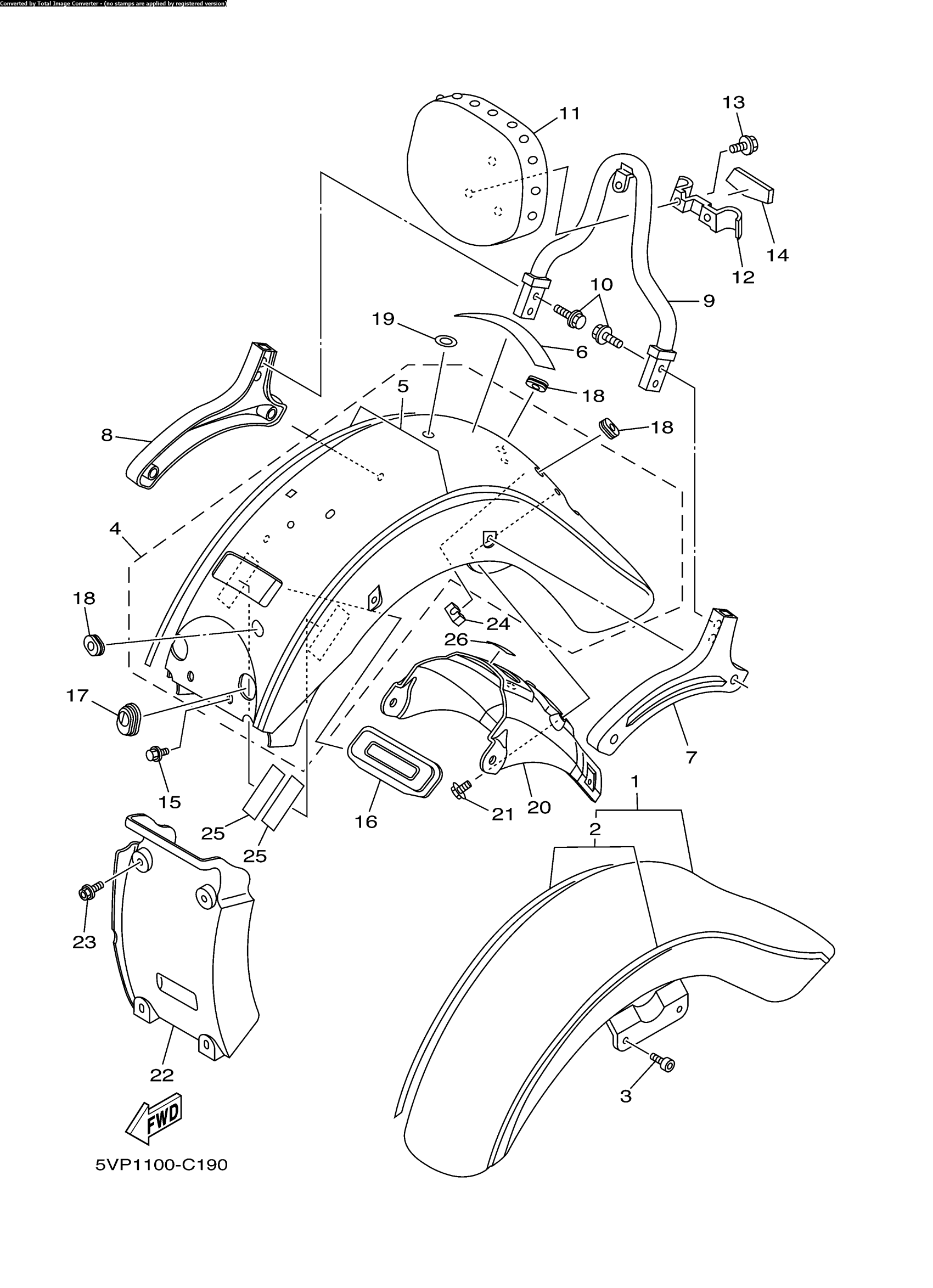

Yamaha XV17ATSC (ROAD STAR SILVERADO CA) 5VP2 2004 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY
5VN-Y2150-01-4Y
Unavailable
1
FRONT FENDER COMP.
5VN-YK215-01-P7
Unavailable
2
. GRAPHIC SET, FRONT FENDER (MARSHAL GOLD)
4WM-21570-L0-00
Unavailable
4
REAR FENDER COMP. (LIGHT YELLOWISH GRAY ME 9) (MARSHAL GOLD)
5VN-Y2161-20-1X
Unavailable
4
REAR FENDER C0MP.
5VN-YK216-00-P1
Unavailable
5
.. GRAPHIC SET, REAR FENDER (MARSHAL GOLD)
4WM-2165A-L0-00
Unavailable
7
GRIP 1
5GA-2164A-00-00
Unavailable
8
GRIP 2
5GA-2164E-00-00
Unavailable
9
STAY 1
5GA-2164F-00-00
Unavailable
11
BACK REST ASSY
5GA-2840F-01-00
Unavailable
14
EMBLEM
5GA-24786-01-00
Unavailable
15
BOLT, WITH WASHER
90119-06152-00
Unavailable
16
DAMPER
4WM-21649-00-00
Unavailable
17
DAMPER 1
4WM-21638-00-00
Unavailable
18
GROMMET
90480-01015-00
Unavailable
19
SEAL 2
5VN-21735-00-00
Unavailable
20
STAY, REAR
5VN-21643-00-00
Unavailable
21
BOLT, FLANGE
95817-06012-00
Unavailable
22
GUARD, MUD (LIGHT YELLOWISH GRAY ME 9)
4WM-21629-00-P2
Unavailable
22
GUARD, MUD
4WM-21629-00-PA
Unavailable
23
BOLT, WITH WASHER
90119-06226-00
Unavailable
24
DAMPER 2
5VN-21639-00-00
Unavailable
25
PROTECTOR
5PW-23472-00-00
Unavailable
26
DAMPER
22F-2139X-00-00
Unavailable
