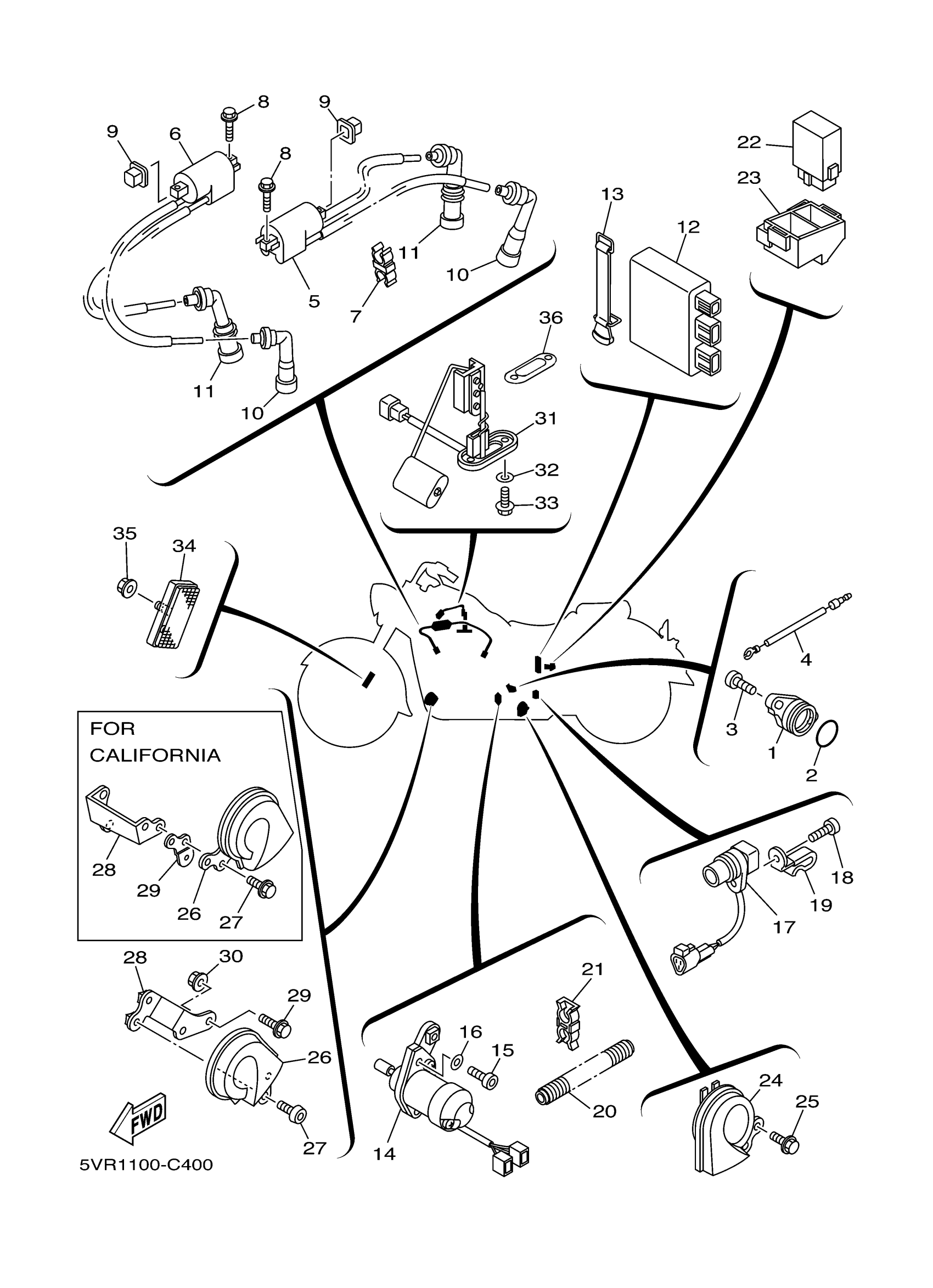

Yamaha XV17ATSC (ROAD STAR SILVERADO CA) 5VP2 2004 ELECTRICAL 1 Diagram
#
4
WIRE, SUB LEAD
4WM-82509-00-00
Unavailable
9
DAMPER, IGNITION COIL
4U8-82317-00-00
Unavailable
12
IGNITOR UNIT ASSY
5VN-82305-00-00
Unavailable
14
SOLENOID
5VN-86110-00-00
Unavailable
16
WASHER, PLATE
90202-06002-00
Unavailable
17
SENSOR, SPEED
4WM-83755-03-00
Unavailable
18
BOLT,SOCKET HEAD
91314-06014-00
Unavailable
19
CLAMP(4MX)
90465-06376-00
Unavailable
20
COVER
4WM-81842-00-00
Unavailable
21
CLAMP
90464-18266-00
Unavailable
22
FLASHER RELAY ASSY
4WM-83350-00-00
Unavailable
23
BAND
5VN-83836-00-00
Unavailable
24
HORN
4WM-83371-00-00
Unavailable
25
BOLT, FLANGE
95817-06012-00
Unavailable
26
HORN
4WM-83371-10-00
Unavailable
26
HORN
4WM-83371-20-00
Unavailable
27
BOLT, BUTTON HEAD
92017-06012-00
Unavailable
27
BOLT, FLANGE
95817-06014-00
Unavailable
28
STAY, HORN
5VN-83378-30-00
Unavailable
28
STAY, HORN
5VN-83378-10-00
Unavailable
29
STAY
5VN-24216-00-00
Unavailable
29
BOLT, WASHER BASED
90105-06009-00
Unavailable
30
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
31
SENDER UNIT ASSY, FUEL METER
5VN-85752-31-00
Unavailable
32
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
33
BOLT, FLANGE
95817-06016-00
Unavailable
34
FRONT REFLECTOR ASSY
11H-85110-01-00
Unavailable
35
NUT, S/L FLANGE
95607-05200-00
Unavailable
36
GASKET, SENDER UNIT
3D8-85753-00-00
Unavailable
