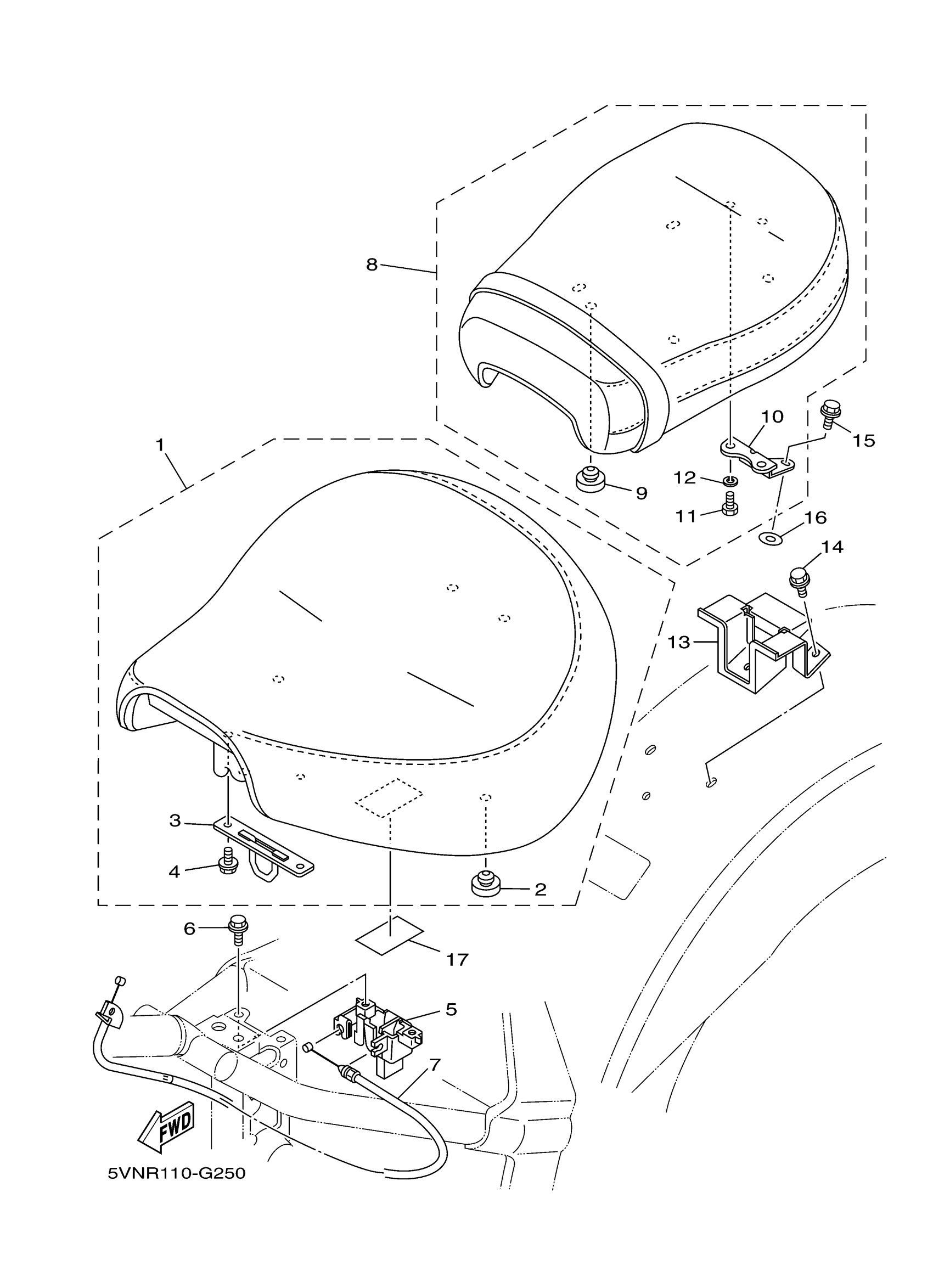

Yamaha XV17ATSBW (ROAD STAR SILVERADO S) 2D9R 2012 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5VN-24710-01-00

Unavailable

2

PAD, SEAT

22W-24741-00-00

$7.20

3

BRACKET, SEAT

4WM-24728-00-00

$13.33

4

BOLT, FLANGE

95817-06012-00

$1.40

5

SEAT LOCK ASSY

4JP-24780-03-00

$60.01

6

BOLT, FLANGE

95817-06016-00

$1.40

7

CABLE, SEAT LOCK

4WM-2478E-00-00

$37.78

8

TANDEM SEAT ASSY

5VN-24750-01-00

Unavailable

9

PAD, SEAT

22W-24741-00-00

$7.20

10

STAY, SEAT

4NK-2471A-00-00

$20.05

11

BOLT, HEXAGON

97017-06016-00

$5.76

12

WASHER, SPRING

92907-06100-00

$0.98

13

BRACKET, SEAT LEVER 1

4WM-2475H-00-00

Unavailable

14

BOLT, FLANGE

95817-06012-00

$1.40

15

BOLT, FLANGE(2UJ)

95024-08012-00

$5.75

16

WASHER

5VN-24736-00-00

Unavailable

17

LABEL, TIRE

4NK-21668-A0-00

Unavailable
