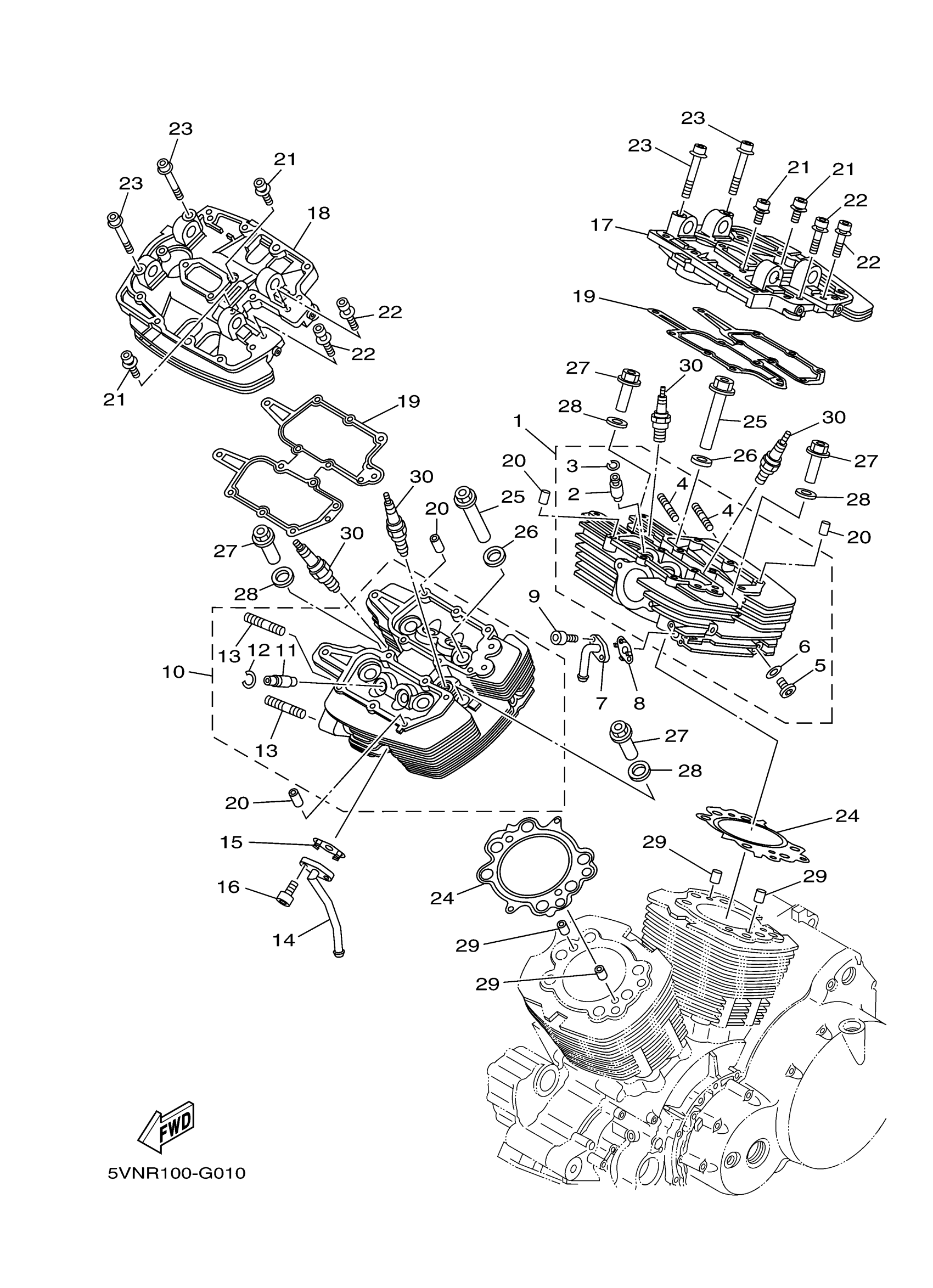

Yamaha XV17ATSAR (ROAD STAR SILVERADO S) 2D9M 2011 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

2D9-11101-00-00

Unavailable

2

GUIDE, INTAKE VALVE

4WM-11133-10-00

$97.05

3

CIRCLIP (1L9)

93440-12052-00

$1.62

4

BOLT, STUD 3

95617-08625-00

$2.57

5

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

6

WASHER, PLATE

90201-12790-00

$6.39

7

PIPE 3

5VN-14873-10-00

Unavailable

8

GASKET

5PX-14815-00-00

$8.17

9

BOLT, SOCKET

91314-06016-00

$5.75

10

CYLINDER HEAD ASSY

2D9-11101-10-00

Unavailable

11

GUIDE, INTAKE VALVE

4WM-11133-10-00

$97.05

12

CIRCLIP (1L9)

93440-12052-00

$1.62

13

BOLT, STUD 3

95617-08625-00

$2.57

14

PIPE 4

5VN-14874-20-00

Unavailable

15

GASKET

5PX-14815-00-00

$8.17

16

BOLT, SOCKET

91314-06016-00

$5.75

17

HEAD, CYLINDER 3

5VN-11131-00-00

Unavailable

18

HEAD, CYLINDER 4

5VN-11141-00-00

Unavailable

19

GASKET, CYLINDER HEAD 2

5VN-11182-01-00

Unavailable

20

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

21

BOLT(3YL)

90109-065F8-00

Unavailable

22

BOLT

90109-061F7-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-08033-00

Unavailable

24

GASKET, CYLINDER HEAD 1

5PX-11181-01-00

Unavailable

25

NUT, HOLDING

5PX-11171-00-00

Unavailable

26

WASHER, HOLDING 1

5VN-11175-00-00

Unavailable

27

NUT, HOLDING

4WM-11172-00-00

Unavailable

28

WASHER, HOLDING

4WM-11176-00-00

Unavailable

29

COLLAR(2JG)

90387-062T5-00

Unavailable

30

DPR7EA9 NGK SPLUG 10PK

DPR-7EA90-00-00

$3.77

30

DPR7EA9 NGK SPLUG 10PK

DPR-7EA90-00-00

$3.77
