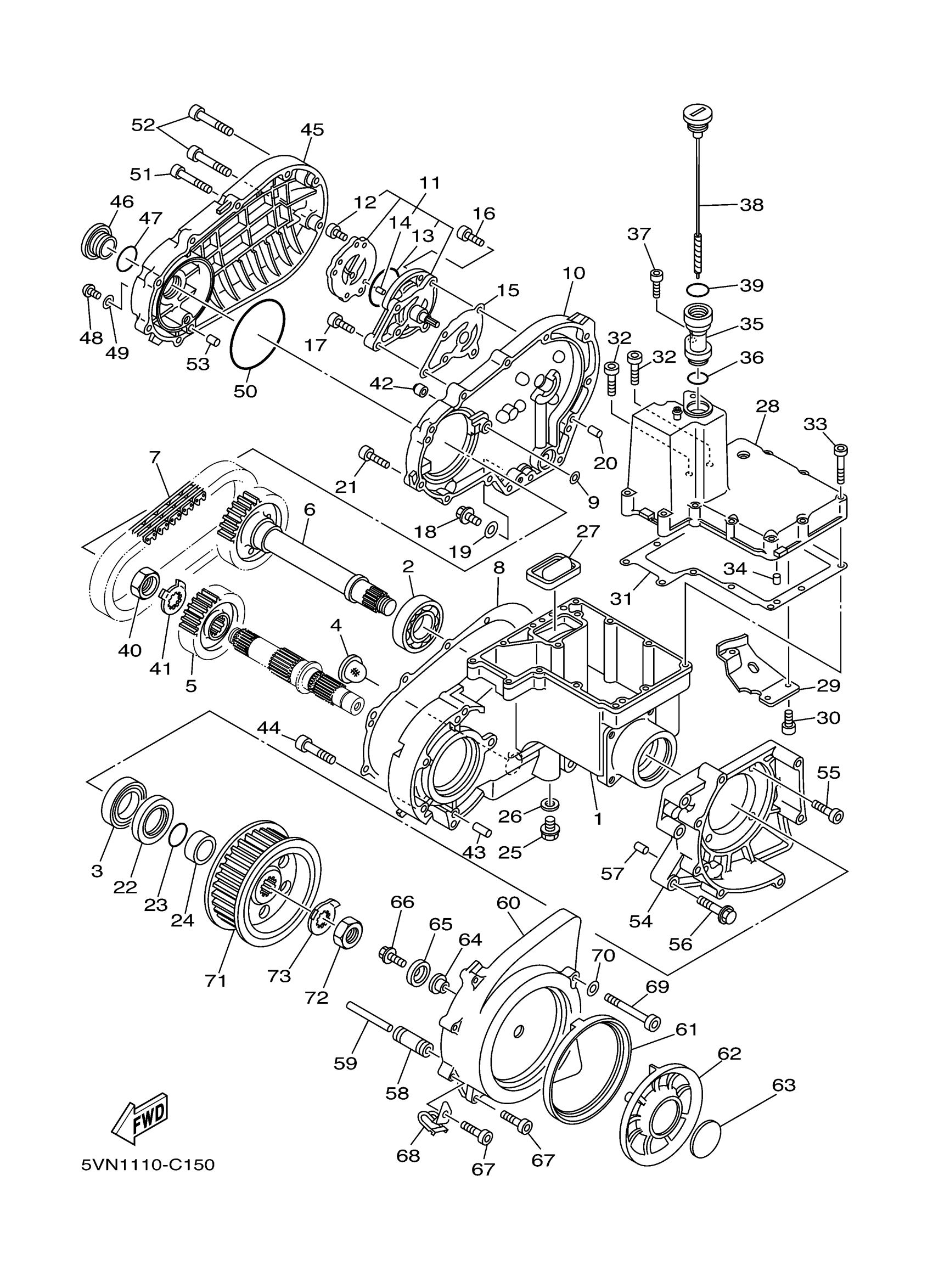

Yamaha XV17ATC (ROAD STAR (spoke wheels) Two-Tone CA) 5VNB 2005 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

CASE, TRANSFER 1

5MB-17541-11-00

Unavailable

2

BEARING (8U9)

93306-20712-00

$79.99

3

BEARING (5X5)

93306-20627-00

$75.99

4

CLEANER

4WM-13286-00-00

$16.49

5

SPROCKET, CHAIN DRIVE

4WM-17682-00-00

Unavailable

6

MIDDLE DRIVEN SHAFT ASSY

4WM-1755A-00-00

$541.99

7

CHAIN, PRIMARY

4WM-16139-01-00

$298.99

8

GASKET 1

5PX-17929-00-00

Unavailable

9

GASKET 2

4WM-17931-00-00

$5.49

10

CASE, TRANSFER 2

5PX-17542-00-00

Unavailable

11

OIL PUMP ASSY

5PX-13100-00-00

Unavailable

12

BOLT,SOCKET

91317-06014-00

$9.49

13

. O-RING

93210-48214-00

Unavailable

14

PIN, DOWEL

93603-07073-00

$9.49

15

GASKET, PUMP CASE

4WM-13116-00-00

$6.99

16

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

17

BOLT,SOCKET

91317-06025-00

Unavailable

18

BOLT, FLANGE

95814-08016-00

Unavailable

19

GASKET

90430-08119-00

Unavailable

20

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

21

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

22

OIL SEAL(36Y)

93102-40330-00

Unavailable

23

O-RING(36Y)

93210-30660-00

Unavailable

24

COLLAR(36Y)

90387-304K7-00

Unavailable

25

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

26

GASKET

214-11198-01-00

Unavailable

27

STRAINER 2

4WM-13421-00-00

Unavailable

28

CAP

5MB-17631-10-00

Unavailable

28

CAP

5MB-17631-10-00

Unavailable

29

PLATE, CAP

4WM-1763A-00-00

Unavailable

30

BOLT,SOCKET

91317-06014-00

$9.49

31

GASKET,3

4WM-17932-00-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

33

BOLT,SOCKET

91317-06040-00

Unavailable

34

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

35

JOINT

5MB-13132-10-00

Unavailable

36

O-RING (4V2)

93210-23326-00

Unavailable

37

BOLT,SOCKET

91317-06025-00

Unavailable

38

PLUG, OIL LEVEL

4WM-15362-00-00

Unavailable

39

O-RING(1KT)

93210-27778-00

Unavailable

40

NUT

90179-22004-00

Unavailable

41

WASHER, LOCK(47X)

90215-26241-00

Unavailable

42

NUT (371)

90179-08004-00

Unavailable

43

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

44

BOLT, SOCKET

91314-08050-00

Unavailable

45

COVER

4WM-15779-00-00

Unavailable

46

PLUG, STRAIGHT SCREW(2GV)

90340-32116-00

Unavailable

47

O-RING (341)

93210-32172-00

Unavailable

48

BOLT, BUTTON HEAD

92014-06010-00

Unavailable

49

GASKET 838153840000

90430-06016-00

Unavailable

50

O-RING (4X7)

93210-92448-00

Unavailable

51

BOLT,SOCKET

91314-06050-00

Unavailable

52

BOLT, SOCKET

91314-08055-00

Unavailable

53

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

54

STAY

5VN-17613-00-00

Unavailable

55

BOLT, SOCKET

91317-08030-00

Unavailable

56

BOLT, FLANGE(8AB)

95817-10050-00

Unavailable

57

PIN

99480-10018-00

Unavailable

58

SLIDER

4WM-17653-00-00

Unavailable

59

PIN, DOWEL

93606-76002-00

Unavailable

60

COVER

5VN-17076-00-00

Unavailable

61

RING, RUBBER

4WM-15449-00-00

Unavailable

62

PLATE 1

4WM-17665-01-00

Unavailable

63

PLATE 2

4WM-17675-00-00

Unavailable

64

GROMMET

4H7-15486-00-00

Unavailable

65

WASHER (4H7)

90209-06096-00

Unavailable

66

BOLT, FLANGE

95817-06012-00

Unavailable

67

BOLT, SOCKET

91314-06035-00

Unavailable

68

CLAMP

90462-06003-00

Unavailable

69

BOLT, HEXAGON SOCKET HEAD

90110-08002-00

Unavailable

70

WASHER, PLATE

90201-08035-00

Unavailable

71

PULLEY, BELT

5VN-17651-00-00

Unavailable

72

NUT

90179-22004-00

Unavailable

73

WASHER, LOCK(47X)

90215-26241-00

Unavailable
