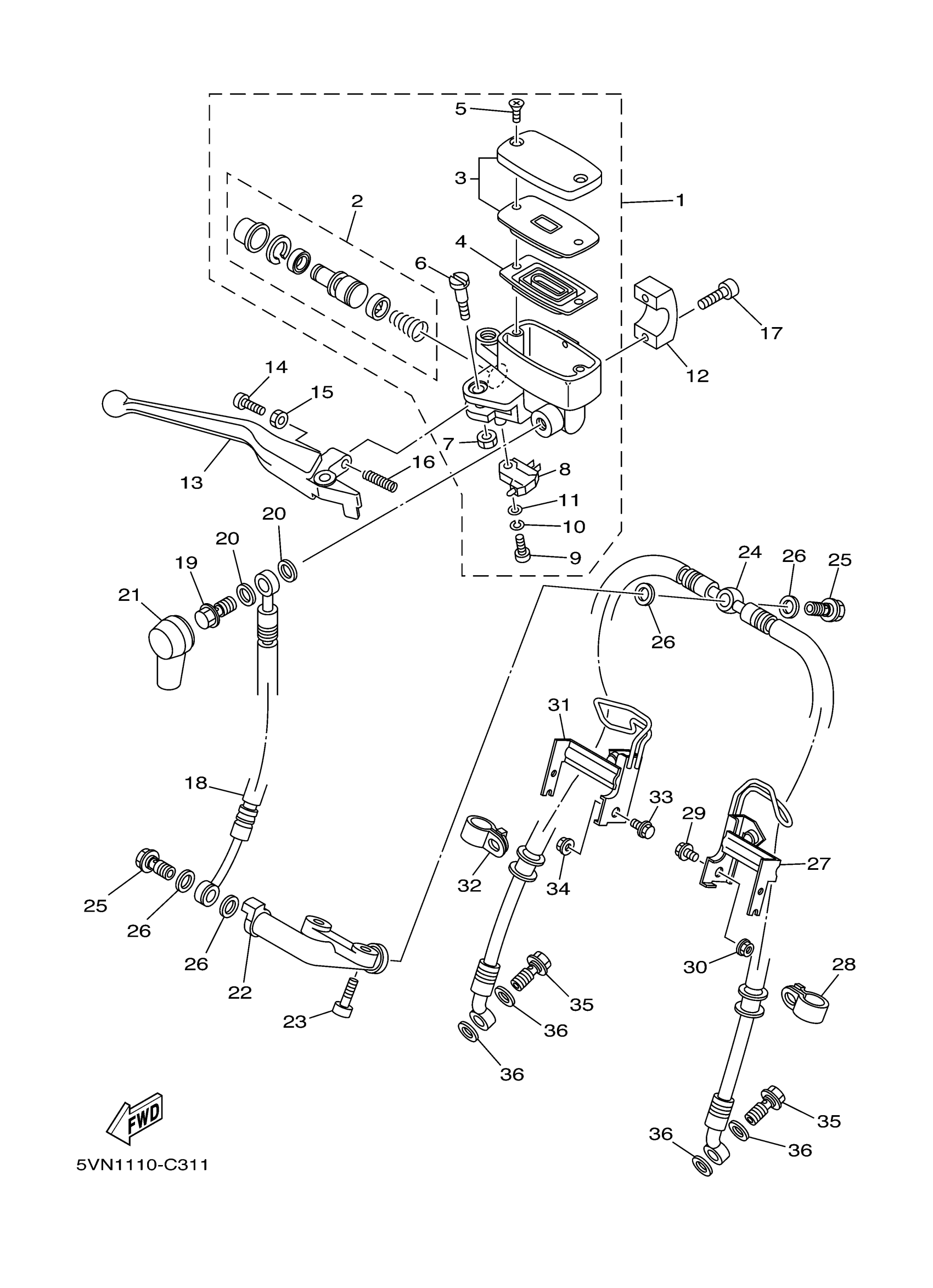

Yamaha XV17ATC (ROAD STAR (spoke wheels) Two-Tone CA) 5VNB 2005 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5PX-W2587-01-00

Unavailable

2

CYLINDER KIT, MASTER

5PX-W0041-00-00

$75.99

3

RESERVOIR CAP SET

4NK-W2585-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$22.99

5

SCREW

3D8-2589H-10-00

$7.99

6

BOLT, LEVER

4NK-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$8.49

8

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

9

SCREW, PAN HEAD

98511-04012-00

Unavailable

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

BRACKET, MASTER CYLINDER

4NK-25867-00-00

Unavailable

13

LEVER 2

5VN-83922-00-00

$53.99

14

SCREW (2L0)

90149-06131-00

$8.49

15

NUT HEXAGON 306839270000

90170-06010-00

$8.49

16

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

18

HOSE, BRAKE 1

5VN-25872-01-00

Unavailable

19

BOLT, UNION(3GM)

90401-10159-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

22

JOINT

4NK-25885-00-00

Unavailable

23

BOLT,SOCKET

91317-06020-00

Unavailable

24

HOSE, BRAKE 2

5VN-25873-00-00

Unavailable

25

BOLT, UNION(3GM)

90401-10159-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

HOLDER, BRAKE HOSE 1

4WM-25875-00-00

Unavailable

28

CLAMP 1

90461-08031-00

Unavailable

29

BOLT, FLANGE

90105-06007-00

Unavailable

30

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

31

HOLDER, BRAKE HOSE

4WM-25886-00-00

Unavailable

32

CLAMP 1

90461-08031-00

Unavailable

33

BOLT, FLANGE

90105-06007-00

Unavailable

34

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

35

BOLT, UNION(3GM)

90401-10159-00

Unavailable

36

WASHER, PLATE(481)

90201-10118-00

Unavailable
