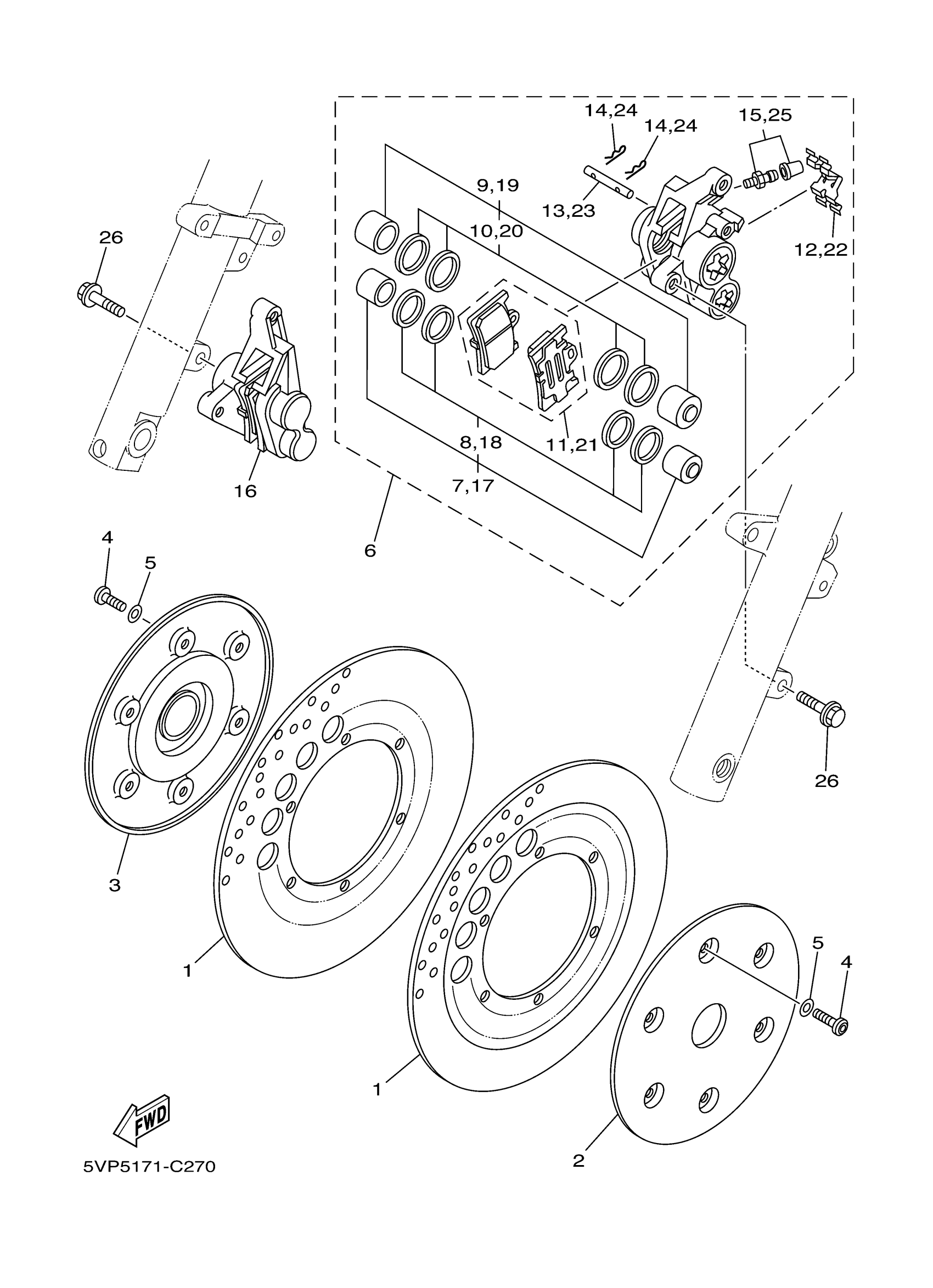

Yamaha XV17ATC (ROAD STAR (spoke wheels) Two-Tone CA) 5VNB 2005 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

3JB-2582U-01-00

Unavailable

2

RING, WHEEL 1 (LEFT)

4NK-2514A-00-00

Unavailable

3

RING, WHEEL 2 (RIGHT)

4WM-2515A-00-00

$188.99

4

SCREW

90149-08052-00

$8.49

5

WASHER, PLATE

90201-08014-00

$7.49

6

CALIPER ASSY (LEFT)

5VN-2580T-00-00

$438.99

7

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

8

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

9

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

10

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

11

BRAKE PAD KIT

5VN-25805-00-00

$64.99

12

SUPPORT, PAD

5VN-25919-00-00

$35.99

13

PIN, PAD

4SV-25924-00-00

$42.99

14

CLIP, PAD PIN

3GM-25925-00-00

$11.99

15

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

16

CALIPER ASSY (RIGHT)

5VN-2580U-00-00

Unavailable

17

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

18

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

19

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

20

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

21

BRAKE PAD KIT

5VN-25805-00-00

$64.99

22

SUPPORT, PAD

5VN-25919-00-00

$35.99

23

PIN, PAD

4SV-25924-00-00

$42.99

24

CLIP, PAD PIN

3GM-25925-00-00

$11.99

25

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

26

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
