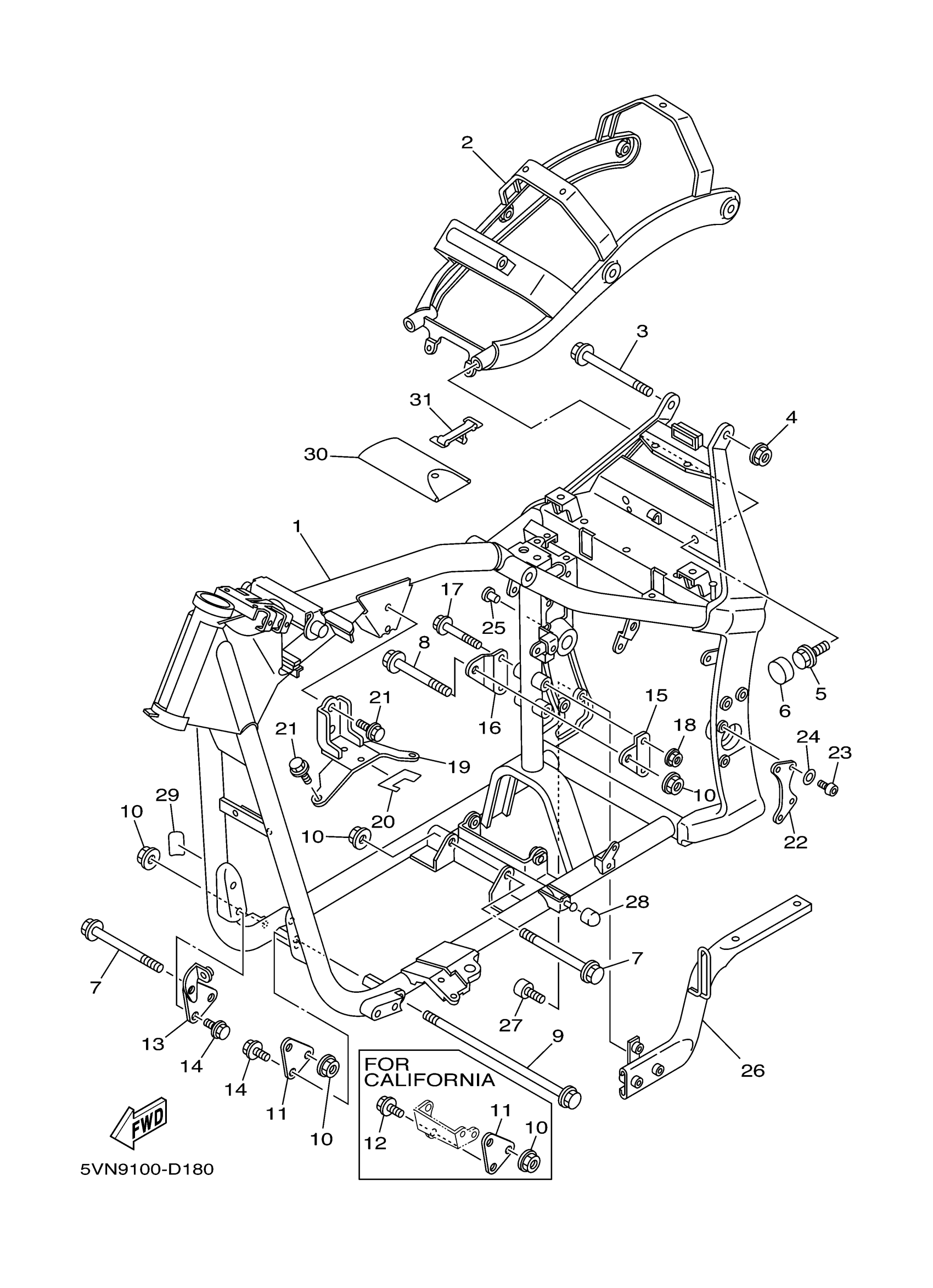

Yamaha XV17ATC (ROAD STAR (spoke wheels) Two-Tone CA) 5VNB 2005 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5VN-21110-01-00

Unavailable

2

REAR FRAME COMP.

5VN-21190-00-00

Unavailable

3

BOLT, FLANGE

90105-12016-00

Unavailable

4

NUT, SELF-LOCKING

90185-12002-00

$12.49

5

BOLT, FLANGE

95817-10035-00

$9.49

6

CAP, TOOL BOX

4WM-21399-00-00

$7.99

7

BOLT, FLANGE

90105-12087-00

Unavailable

8

BOLT, WASHER BASED(36Y)

90105-12309-00

$11.49

9

BOLT, WASHER BASED

90105-126A6-00

Unavailable

10

NUT, U FLANGE

95607-12200-00

$5.60

11

STAY, ENGINE 5

4WM-21314-00-00

$17.49

12

BOLT, FLANGE

95817-10020-00

$8.49

13

STAY, ENGINE 5

5VN-21318-00-00

Unavailable

14

BOLT, FLANGE(3HP)

95817-10016-00

$8.49

14

BOLT, FLANGE(3HP)

95817-10016-00

$8.49

15

STAY, ENGINE 2

4WM-21315-00-00

Unavailable

16

STAY, ENGINE 3

4WM-21316-00-00

Unavailable

17

BOLT, WASHER BASED(4HM)

90105-10737-00

Unavailable

18

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

19

STAY, ENGINE 3

5VN-21317-00-00

Unavailable

20

SEAL

5VN-2139B-00-00

Unavailable

21

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

22

STAY 1

5VN-2137F-00-00

Unavailable

23

BOLT

90111-10003-00

Unavailable

24

WASHER, PLATE

90201-11013-00

Unavailable

25

PLUG (341-26329-00)

90338-09012-00

Unavailable

26

STAY, MUFFLER 1

5MB-21445-00-00

Unavailable

27

BOLT, SOCKET

91317-10025-00

Unavailable

28

STOPPER, MAIN STAND

3VR-27114-00-00

Unavailable

29

SEAL

5VN-21268-00-00

Unavailable

30

TOOL KIT

5VN-28100-00-00

Unavailable

31

BAND, TOOL

46X-21376-00-00

Unavailable
