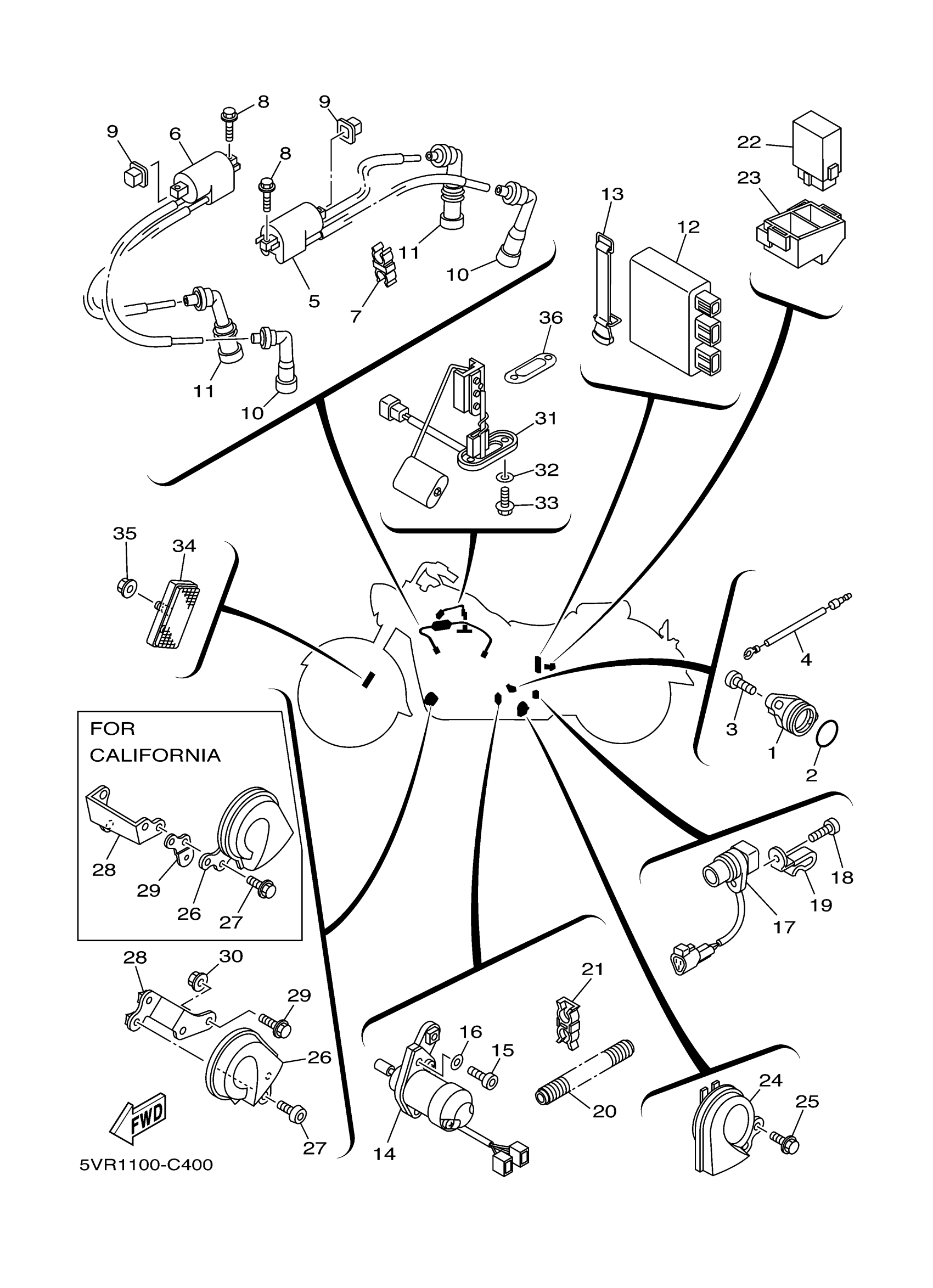

Yamaha XV17ATC (ROAD STAR (spoke wheels) Two-Tone CA) 5VNB 2005 ELECTRICAL 1 Diagram

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

O-RING (371)

93210-29196-00

$8.49

SCREW

90149-06041-00

$1.28

WIRE, SUB LEAD

4WM-82509-00-00

Unavailable

IGNITION COIL ASSY

5VN-82310-00-00

$201.99

IGNITION COIL ASSY

5VN-82310-10-00

$194.99

CLAMP(3XV)

90464-09142-00

$2.70

BOLT, FLANGE

95817-06020-00

$3.81

DAMPER, IGNITION COIL

4U8-82317-00-00

Unavailable

PLUG CAP ASSY

4VW-82370-00-00

$69.99

PLUG CAP ASSY

4NK-82370-00-00

$73.99

IGNITOR UNIT ASSY

5VN-82305-00-00

Unavailable

BAND,BATTERY

7H3-82131-00-00

$17.49

SOLENOID

5VN-86110-00-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(1JK)

90110-06114-00

$10.49

WASHER, PLATE

90202-06002-00

Unavailable

SENSOR, SPEED

4WM-83755-03-00

Unavailable

BOLT,SOCKET HEAD

91314-06014-00

Unavailable

CLAMP(4MX)

90465-06376-00

Unavailable

COVER

4WM-81842-00-00

Unavailable

CLAMP

90464-18266-00

Unavailable

FLASHER RELAY ASSY

4WM-83350-00-00

Unavailable

BAND

5VN-83836-00-00

Unavailable

HORN

4WM-83371-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable

HORN

4WM-83371-10-00

Unavailable

HORN

4WM-83371-20-00

Unavailable

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

BOLT, FLANGE

95817-06014-00

Unavailable

STAY, HORN

5VN-83378-30-00

Unavailable

STAY, HORN

5VN-83378-10-00

Unavailable

STAY

5VN-24216-00-00

Unavailable

BOLT, WASHER BASED

90105-06009-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

SENDER UNIT ASSY, FUEL METER

5VN-85752-31-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

BOLT, FLANGE

95817-06016-00

Unavailable

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

NUT, S/L FLANGE

95607-05200-00

Unavailable

GASKET, SENDER UNIT

3D8-85753-00-00

Unavailable
