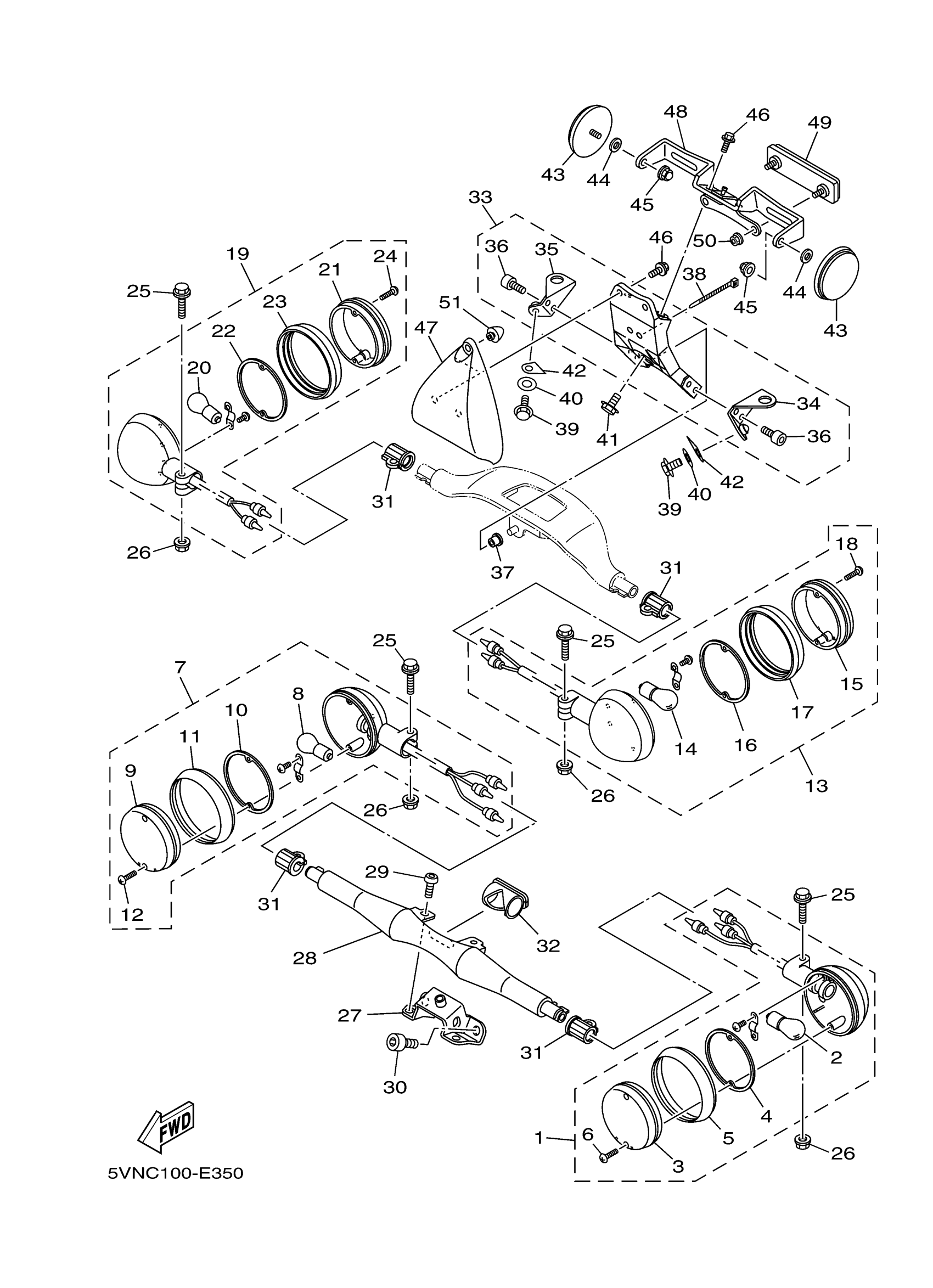

Yamaha XV17ASZCB (ROAD STAR S CA) 5VRL 2010 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5VN-83310-02-00

$123.99

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

3

LENS, FLASHER

5VN-83312-10-00

$16.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

LENS, RIM

1D6-83363-00-00

$28.99

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

5VN-83320-02-00

$102.99

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

9

LENS, FLASHER

5VN-83312-20-00

$16.49

10

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

11

LENS, RIM

1D6-83363-10-00

$28.99

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

REAR FLASHER LIGHT ASSY 1

5VN-83330-02-00

$125.99

14

BULB, FLASHER (12V-21W)

5VN-83331-00-00

$14.49

15

LENS, FLASHER

1D6-83312-20-00

Unavailable

16

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

17

LENS, RIM

1D6-83363-10-00

$28.99

18

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

19

REAR FLASHER LIGHT ASSY 2

5VN-83340-02-00

Unavailable

20

BULB, FLASHER (12V-21W)

5VN-83331-00-00

$14.49

21

LENS, FLASHER

1D6-83312-10-00

Unavailable

22

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

23

LENS, RIM

1D6-83363-00-00

$28.99

24

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

25

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

26

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

27

STAY 8

5VN-2317V-00-00

Unavailable

28

STAY, FLASHER 2

5VN-83369-00-00

Unavailable

29

BOLT, BUTTON HEAD

92014-06010-00

Unavailable

30

BOLT, BUTTON

92014-08016-00

Unavailable

31

DAMPER, FLASHER 1

5VN-83321-00-00

Unavailable

32

PLUG, BLIND

4NK-83345-00-00

Unavailable

33

LICENCE BRACKET ASSY

5VN-84550-00-00

Unavailable

34

STAY, SETTING

5VN-8431R-00-00

Unavailable

35

METAL, ADJUSTING

5VN-8431T-00-00

Unavailable

36

BOLT,SOCKET

91317-06012-00

Unavailable

37

GROMMET

90480-10010-00

Unavailable

38

BAND

1UA-82591-00-00

Unavailable

39

BOLT, FLANGE

95817-06012-00

Unavailable

40

WASHER, PLATE(52G)

90201-064J1-00

Unavailable

41

BOLT, FLANGE

95817-06014-00

Unavailable

42

SEAL 3

5VN-2173M-00-00

Unavailable

43

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

44

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

45

NUT, CROWN

90176-05001-00

Unavailable

46

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

47

BRACKET

5VN-84703-00-00

Unavailable

48

BRACKET, LICENSE

5VN-84751-00-00

Unavailable

49

REAR REFLECTOR ASSY

1FK-85130-00-00

Unavailable

50

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

51

DAMPER 2

42U-21639-00-00

Unavailable
