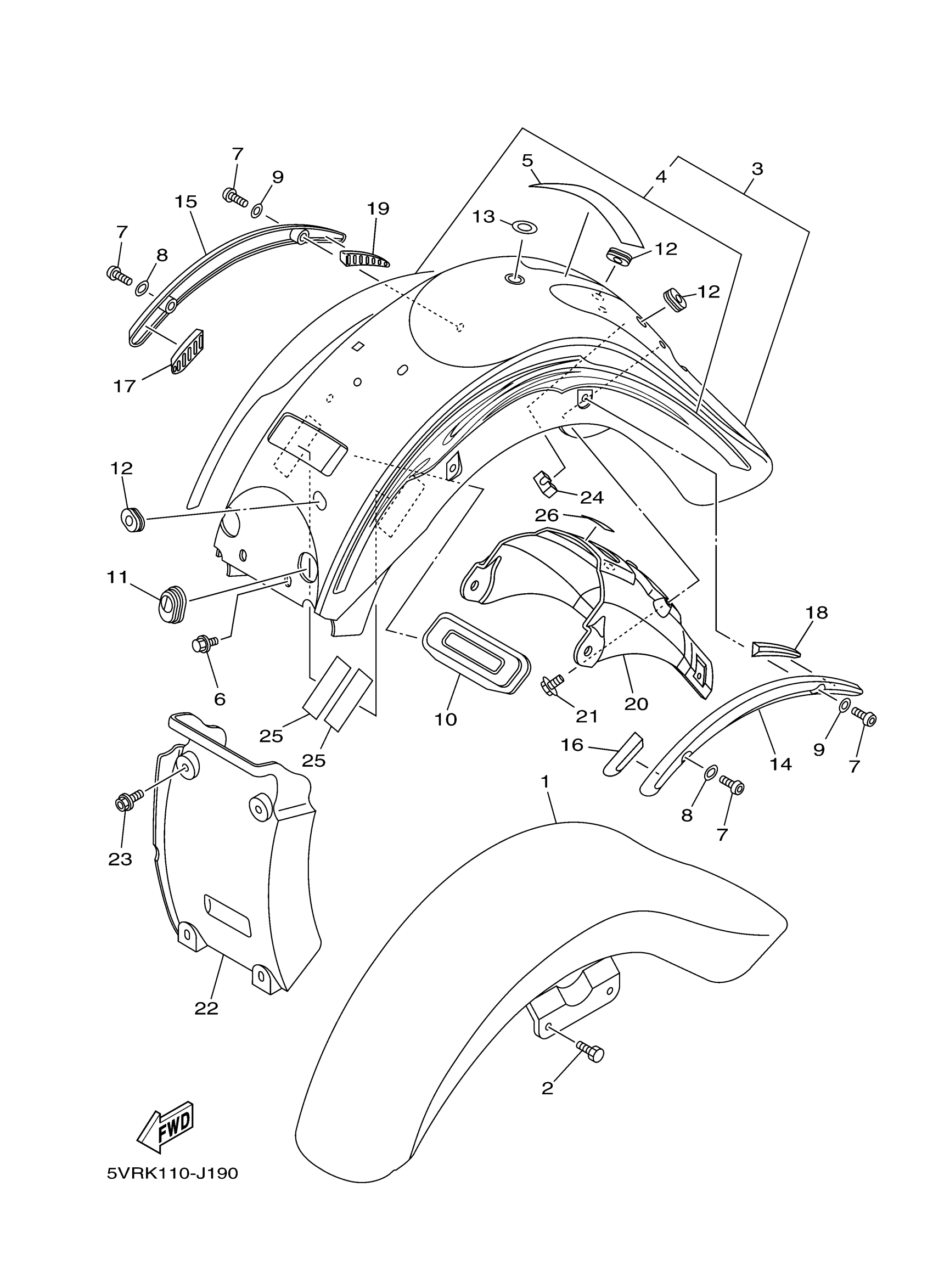

Yamaha XV17ASZCB (ROAD STAR S CA) 5VRL 2010 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5VN-YK215-01-P7

Unavailable

2

BOLT,SOCKET

91314-08025-00

$8.49

3

REAR FENDER COMP.

5VN-Y2161-N0-P1

Unavailable

4

. GRAPHIC SET,REAR FENDER

5VN-2165A-20-00

Unavailable

5

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

BOLT, BUTTON HEAD(3YF)

92014-08025-00

$7.49

8

WASHER, SPECIAL 1

5VN-21615-00-00

$10.99

9

WASHER, SPECIAL 2

5VN-21616-00-00

Unavailable

10

DAMPER

4WM-21649-00-00

$50.99

11

DAMPER 1

4WM-21638-00-00

$10.99

12

GROMMET

90480-01015-00

$7.49

13

SEAL 2

5VN-21735-00-00

$7.99

14

STAY 1

4WM-2164F-00-00

$168.99

15

STAY 2

4WM-2164G-00-00

Unavailable

16

DAMPER 1

4WM-21541-00-00

Unavailable

17

DAMPER 2

4WM-21542-00-00

Unavailable

18

DAMPER

4WM-2174X-00-00

Unavailable

19

DAMPER

4WM-2174Y-00-00

Unavailable

20

STAY, REAR

5VN-21643-00-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

Unavailable

22

GUARD, MUD

4WM-21629-00-PA

Unavailable

23

BOLT, WITH WASHER

90119-06226-00

Unavailable

24

DAMPER 2

5VN-21639-10-00

Unavailable

25

PROTECTOR

5PW-23472-00-00

Unavailable

26

DAMPER

22F-2139X-00-00

Unavailable
