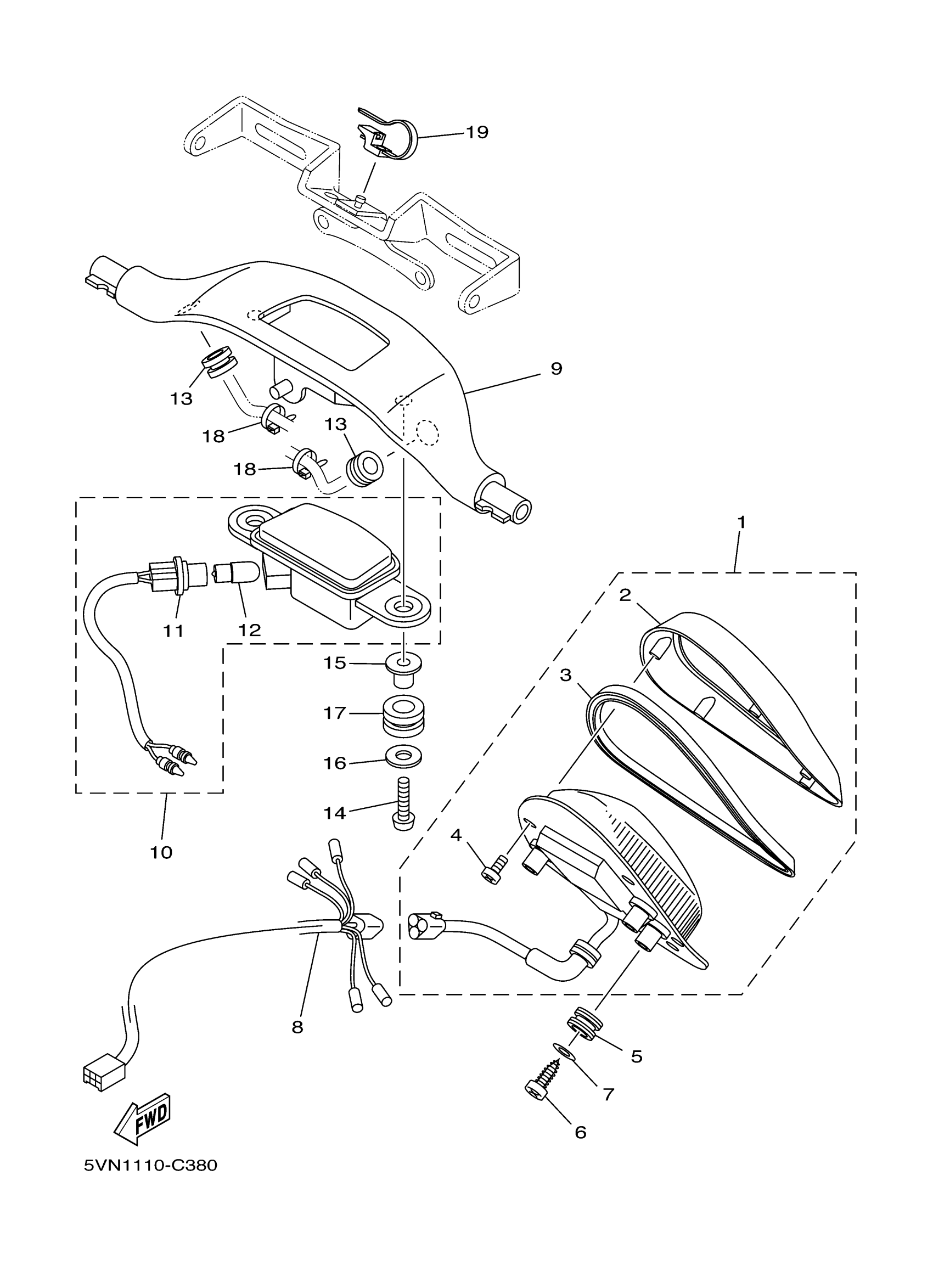

Yamaha XV17ASXSC (ROAD STAR S CA) 5VRE 2008 TAILLIGHT Diagram

TAILLIGHT ASSY

5VN-84700-00-00

Unavailable

COVER, TAILLIGHT

5VN-84716-00-00

$84.99

GASKET, TAIL LENS

5VN-84723-00-00

$37.99

SCREW, LENS FITTING

5VN-84724-00-00

$2.34

DAMPER

5PX-84553-00-00

$3.64

SCREW, TRUSS TAP.

97707-50012-00

$4.63

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

CORD, TAILLIGHT

5VN-84717-10-00

Unavailable

STAY, FLASHER 1

5VN-83368-01-00

Unavailable

LICENCE LIGHT UNIT ASSY

5VN-84745-00-00

Unavailable

SOKET CORD ASSY

5VN-8473E-00-00

Unavailable

BULB

4SV-84347-00-00

$8.99

GROMMET(3GM)

90480-10517-00

$8.49

BOLT, BUTTON HEAD

92017-06025-00

$9.49

COLLAR 437216330000

90387-07391-00

Unavailable

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

GROMMET

90480-14004-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

CLAMP

90464-25002-00

Unavailable
