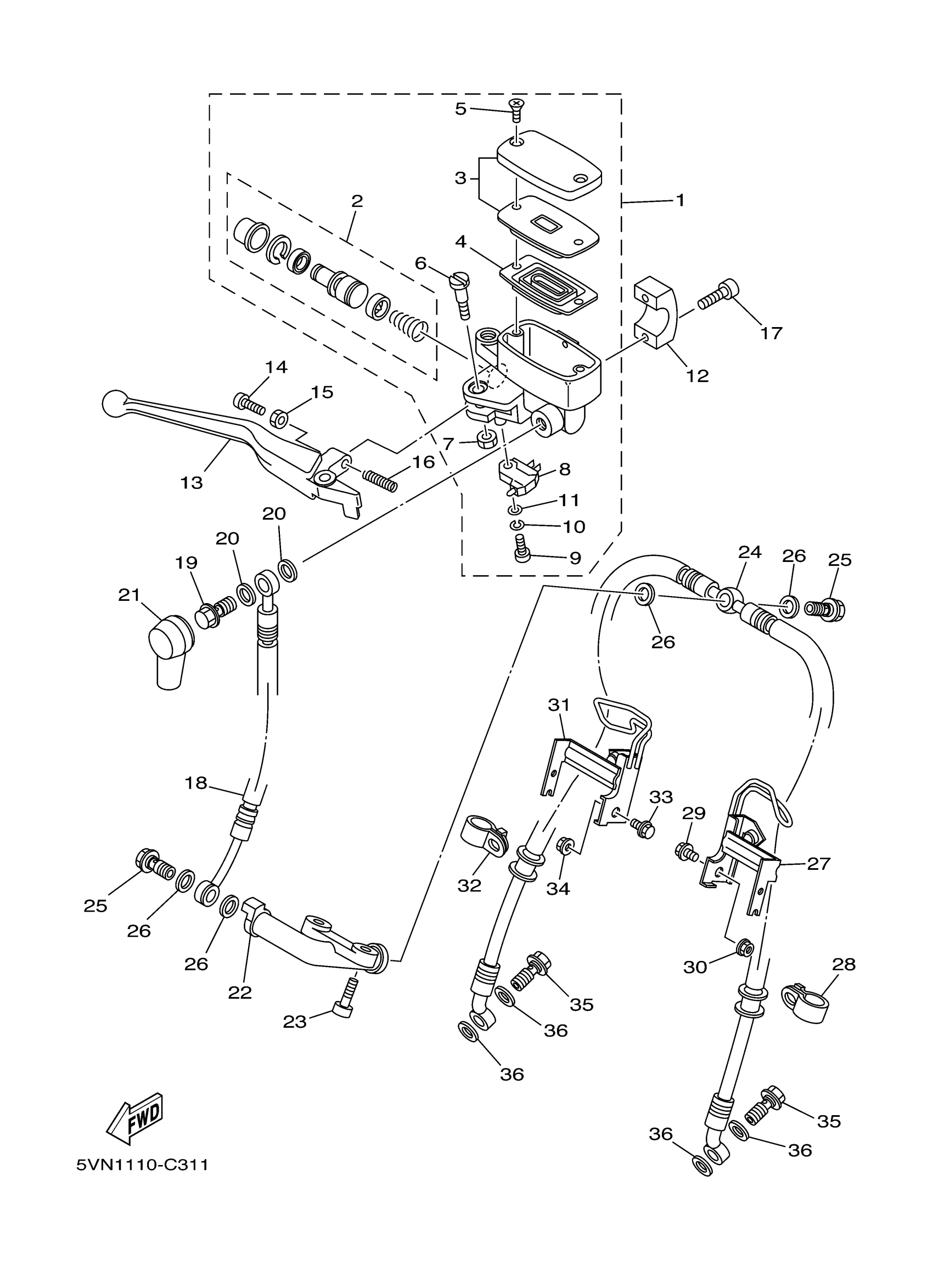

Yamaha XV17ASXSC (ROAD STAR S CA) 5VRE 2008 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5VN-W2587-00-00

$441.99

2

CYLINDER KIT, MASTER

5PX-W0041-00-00

$75.99

3

RESERVOIR CAP SET

5VN-W2585-00-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$22.99

5

SCREW

5VN-2589H-00-00

$2.34

6

BOLT, LEVER

4NK-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$8.49

8

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

9

SCREW, PAN HEAD

98517-04012-00

$3.88

10

WASHER(6TA)

92907-04100-00

$8.49

11

WASHER(JF2)

92907-04600-00

$1.71

12

BRACKET, MASTER CYLINDER

5VN-25867-00-00

Unavailable

13

LEVER 2

5VN-83922-10-00

Unavailable

14

SCREW (2L0)

90149-06131-00

$8.49

15

NUT HEXAGON 306839270000

90170-06010-00

$8.49

16

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

18

HOSE, BRAKE 1

5VN-25872-01-00

Unavailable

19

BOLT, UNION

90401-10020-00

Unavailable

20

GASKET

90430-10005-00

Unavailable

21

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

22

JOINT

4NK-25885-00-00

Unavailable

23

BOLT,SOCKET

91317-06020-00

Unavailable

24

HOSE, BRAKE 2

5VN-25873-00-00

Unavailable

25

BOLT, UNION

90401-10020-00

Unavailable

26

GASKET

90430-10005-00

Unavailable

27

HOLDER, BRAKE HOSE 1

4WM-25875-00-00

Unavailable

28

CLAMP 1

90461-08031-00

Unavailable

29

BOLT, FLANGE

90105-06007-00

Unavailable

30

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

31

HOLDER, BRAKE HOSE

4WM-25886-00-00

Unavailable

32

CLAMP 1

90461-08031-00

Unavailable

33

BOLT, FLANGE

90105-06007-00

Unavailable

34

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

35

BOLT, UNION

90401-10020-00

Unavailable

36

GASKET

90430-10005-00

Unavailable
