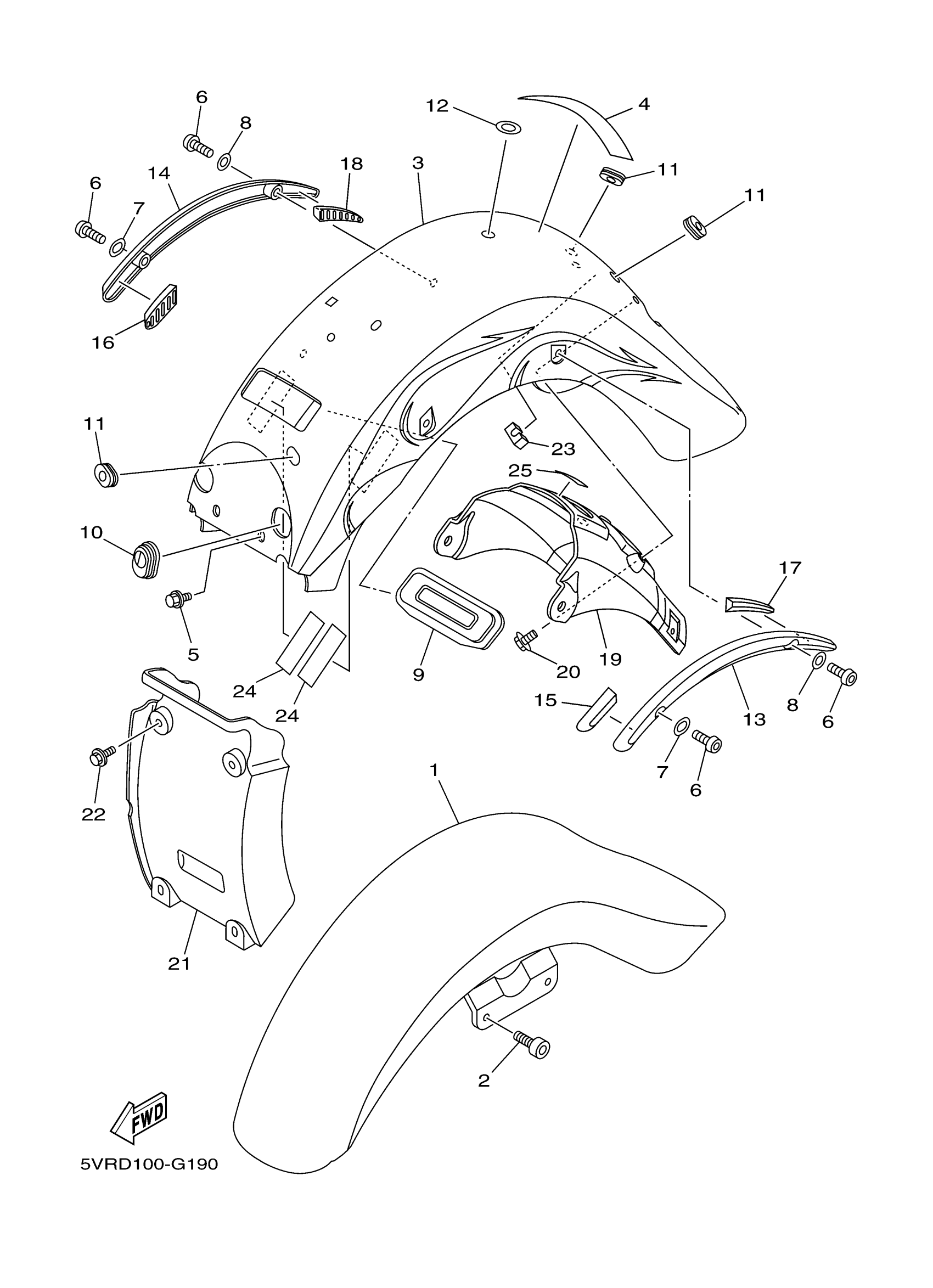

Yamaha XV17ASXSC (ROAD STAR S CA) 5VRE 2008 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5VN-YK215-01-PC

Unavailable

2

BOLT,SOCKET

91314-08025-00

$8.49

3

REAR FENDER COMP. (DARK BLUISH GRAY METALLIC 8)

5VN-Y2161-F0-P6

Unavailable

4

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

5

BOLT, WITH WASHER

90119-06152-00

$7.49

6

BOLT, BUTTON HEAD(3YF)

92014-08025-00

$7.49

7

WASHER, SPECIAL 1

5VN-21615-00-00

$10.99

8

WASHER, SPECIAL 2

5VN-21616-00-00

Unavailable

9

DAMPER

4WM-21649-00-00

$50.99

10

DAMPER 1

4WM-21638-00-00

$10.99

11

GROMMET

90480-01015-00

$7.49

12

SEAL 2

5VN-21735-00-00

$7.99

13

STAY 1

4WM-2164F-00-00

$168.99

14

STAY 2

4WM-2164G-00-00

Unavailable

15

DAMPER 1

4WM-21541-00-00

$19.99

16

DAMPER 2

4WM-21542-00-00

Unavailable

17

DAMPER

4WM-2174X-00-00

Unavailable

18

DAMPER

4WM-2174Y-00-00

Unavailable

19

STAY, REAR

5VN-21643-00-00

Unavailable

20

BOLT, FLANGE

95817-06012-00

Unavailable

21

GUARD, MUD

4WM-21629-00-PJ

Unavailable

22

BOLT, WITH WASHER

90119-06226-00

Unavailable

23

DAMPER 2

5VN-21639-10-00

Unavailable

24

PROTECTOR

5PW-23472-00-00

Unavailable

25

DAMPER

22F-2139X-00-00

Unavailable
