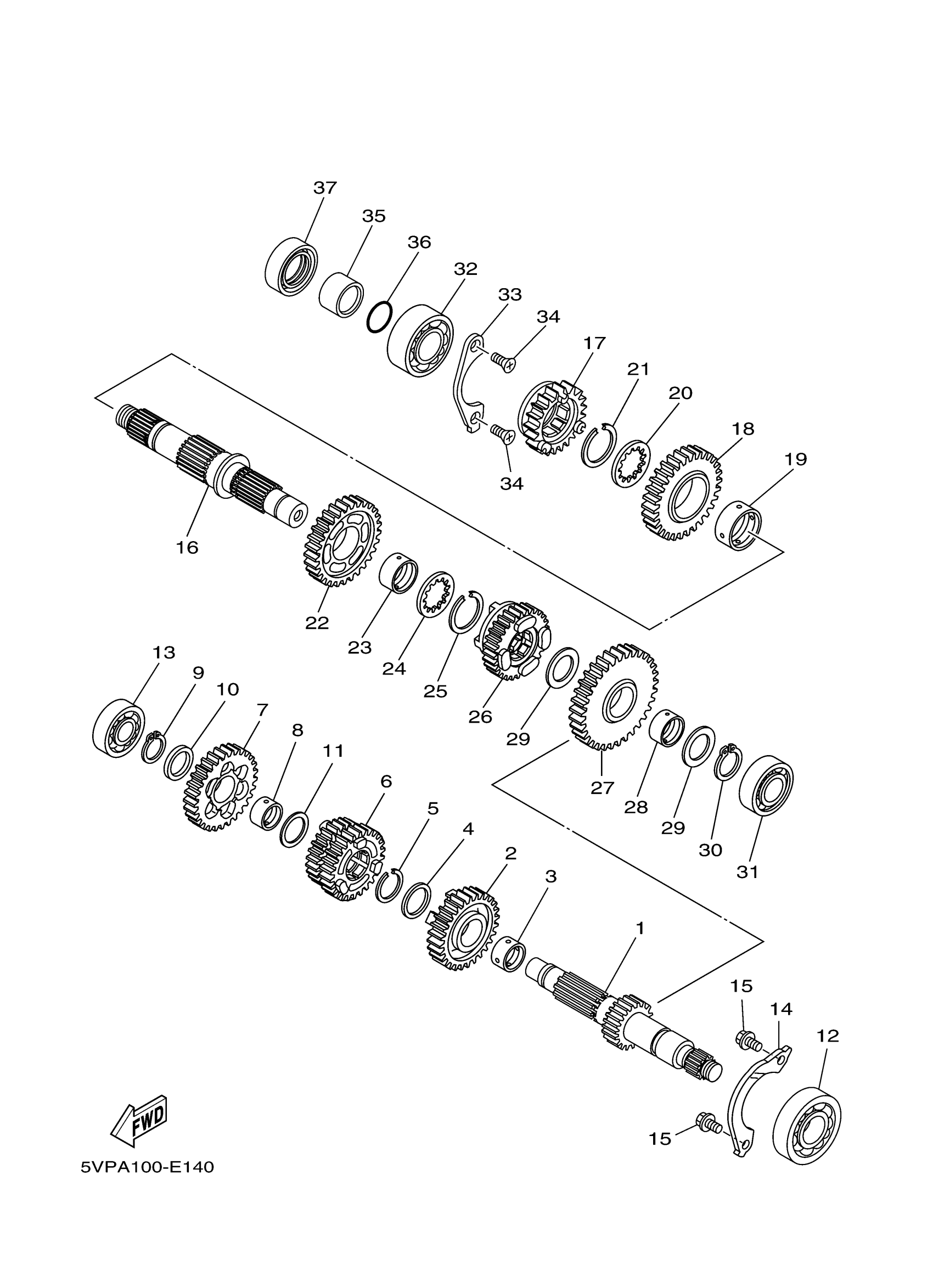

Yamaha XV17ASEP (ROAD STAR S) 2PU1 2014 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5PX-17411-30-00

$270.99

2

GEAR, 4TH PINION

5VN-17141-10-00

$92.99

3

COLLAR

90387-28010-00

Unavailable

4

WASHER

90209-25014-00

Unavailable

5

CIRCLIP (2H7)

93440-28062-00

$8.49

6

GEAR, 2ND PINION

5YU-17121-01-00

Unavailable

7

GEAR, 5TH PINION

5VN-17151-10-00

Unavailable

8

COLLAR

90387-23003-00

Unavailable

9

CIRCLIP (4H7)

93410-23056-00

$7.49

10

WASHER, PLATE(1FK)

90201-232K5-00

Unavailable

11

WASHER, PLATE

90201-23014-00

$3.76

12

BEARING

93306-37806-00

Unavailable

13

BEARING

93306-30441-00

$63.99

14

PLATE, BEARING COVER

5YU-15381-00-00

Unavailable

15

BOLT, FLANGE

95817-06014-00

Unavailable

16

AXLE, DRIVE

5PX-17421-30-00

Unavailable

17

GEAR, 5TH WHEEL

5VN-17251-10-00

Unavailable

18

GEAR, 2ND WHEEL

5VN-17221-10-00

Unavailable

19

COLLAR(1UX)

90387-350R5-00

Unavailable

20

WASHER

90209-33008-00

Unavailable

21

CIRCLIP (371)

93440-34025-00

Unavailable

22

GEAR, 3RD WHEEL

5YU-17231-00-00

Unavailable

23

COLLAR

90387-31003-00

Unavailable

24

WASHER

90209-28008-00

Unavailable

25

CIRCLIP

93440-31187-00

Unavailable

26

GEAR, 4TH WHEEL

5VN-17241-10-00

Unavailable

27

GEAR, 1ST WHEEL

5YU-17211-00-00

Unavailable

28

COLLAR

90387-25013-00

Unavailable

29

WASHER, PLATE

90201-25017-00

Unavailable

30

CIRCLIP (256)

93410-25017-00

Unavailable

31

BRG,R-B 6205DU8 52MM NK

93306-20550-00

Unavailable

32

BEARING

93305-20607-00

Unavailable

33

PLATE, BEARING COVER

5YU-15383-00-00

Unavailable

34

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

35

COLLAR

90387-3015P-00

Unavailable

36

O-RING(50M)

93210-27672-00

Unavailable

37

OIL SEAL

93103-38184-00

Unavailable
