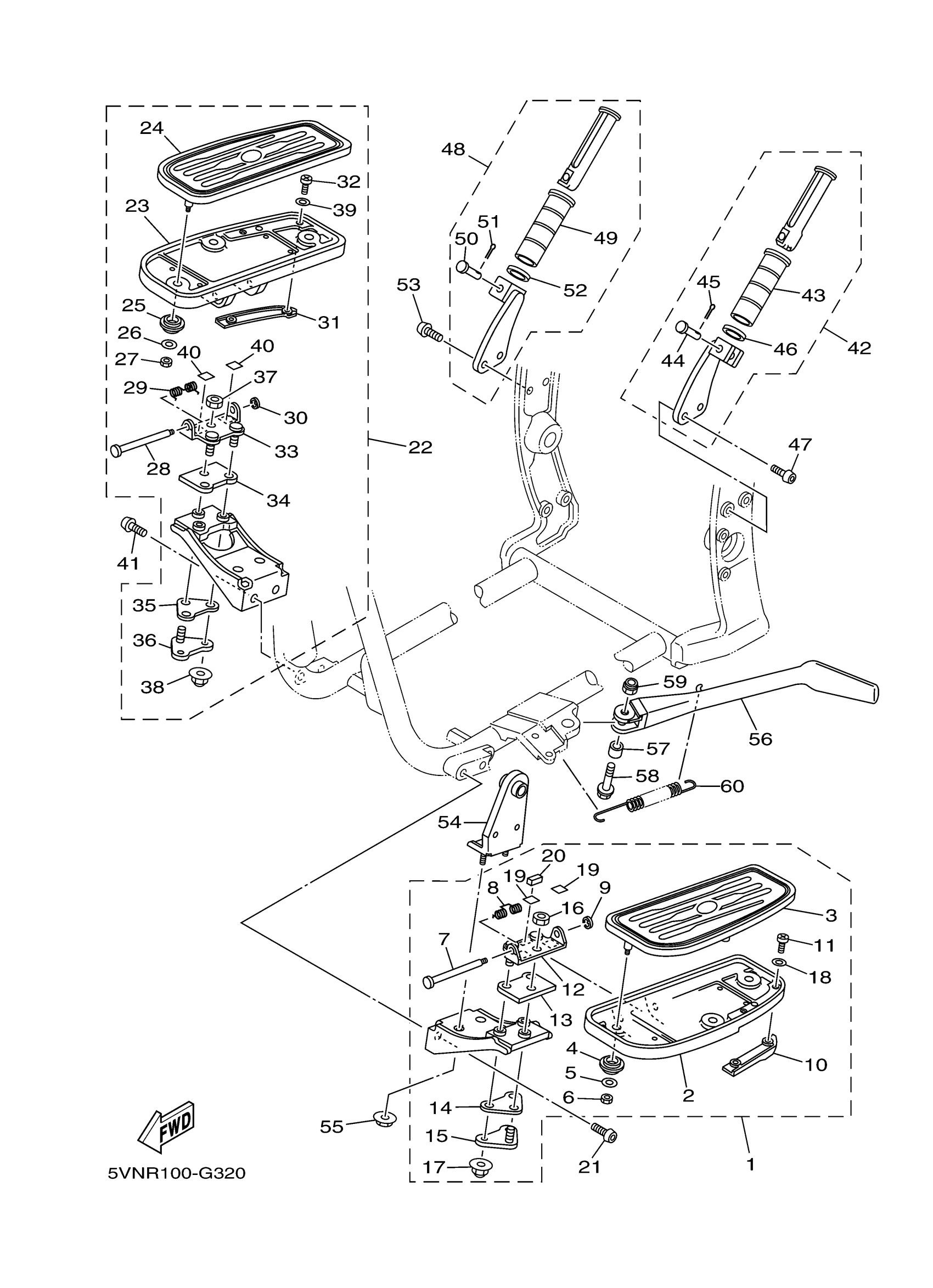

Yamaha XV17ASEP (ROAD STAR S) 2PU1 2014 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

5VN-27410-10-00

Unavailable

2

FOOTREST

4NK-27451-10-00

Unavailable

3

COVER, FOOTREST

4WM-27413-00-00

Unavailable

4

DAMPER, FOOTREST

4WM-27414-00-00

$4.85

5

WASHER PLATE 829771780000

90201-05033-00

$6.62

6

NUT, U

95617-05100-00

$6.22

7

SHAFT

3D8-27427-00-00

$5.85

8

SPRING, RETURN

4NK-27426-00-00

$6.24

9

CIRCLIP(53L)

99001-06600-00

$0.67

10

MOLE 1

4WM-27496-00-00

Unavailable

11

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.29

12

BRACKET, FOOTREST 2

5VN-27422-00-00

$21.44

13

DAMPER, FOOTREST

5VN-27414-00-00

$6.42

14

DAMPER, FOOTREST 2

5VN-27424-00-00

$6.42

15

PLATE, SOTPPER

5VN-27123-00-00

Unavailable

16

NUT(6TA)

95317-06600-00

Unavailable

17

. NUT, CAP

90176-06007-00

$2.19

18

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

19

SEAL

1D7-27485-00-00

Unavailable

20

STOPPER

5VN-2743E-00-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-10019-00

Unavailable

22

FRONT FOOTREST ASSY (RIGHT)

5VN-27420-10-00

Unavailable

23

FOOTREST

4NK-27461-10-00

Unavailable

24

COVER, FOOTREST

4WM-27423-00-00

Unavailable

25

DAMPER, FOOTREST

4WM-27414-00-00

$4.85

26

WASHER PLATE 829771780000

90201-05033-00

$6.62

27

NUT, U

95617-05100-00

$6.22

28

SHAFT

3D8-27427-00-00

$5.85

29

SPRING, RETURN

4NK-27426-00-00

$6.24

30

CIRCLIP(53L)

99001-06600-00

$0.67

31

MOLE 2

4WM-27497-00-00

Unavailable

32

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.29

33

BRACKET, FOOTREST 2

5VN-27422-00-00

$21.44

34

DAMPER, FOOTREST

5VN-27414-00-00

$6.42

35

DAMPER, FOOTREST 2

5VN-27424-00-00

$6.42

36

PLATE, SOTPPER

5VN-27123-00-00

Unavailable

37

NUT(6TA)

95317-06600-00

Unavailable

38

. NUT, CAP

90176-06007-00

$2.19

39

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

40

SEAL

1D7-27485-00-00

Unavailable

41

BOLT,HEX. SOCKET BUTTON

90111-10019-00

Unavailable

42

REAR FOOTREST ASSY 1

4WM-27430-11-00

Unavailable

43

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

44

PIN, CLEVIS

90240-06146-00

Unavailable

45

PIN, COTTER (648)

91490-20015-00

Unavailable

46

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

47

BOLT

90111-08002-00

Unavailable

48

REAR FOOTREST ASSY 2

4WM-27440-11-00

Unavailable

49

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

50

PIN, CLEVIS

90240-06146-00

Unavailable

51

PIN, COTTER (648)

91490-20015-00

Unavailable

52

WASHER, PLATE(8CJ)

90201-210U0-00

Unavailable

53

BOLT

90111-08002-00

Unavailable

54

BRACKET 3

5VN-27443-00-00

Unavailable

55

NUT, SELF-LOCKING

90185-08169-00

Unavailable

56

STAND, SIDE

4WM-27311-00-00

Unavailable

57

COLLAR(4NK)

90387-1007K-00

Unavailable

58

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable

59

NUT, U

90185-10037-00

Unavailable

60

SPRING, TENSION(36Y)

90506-29358-00

Unavailable
