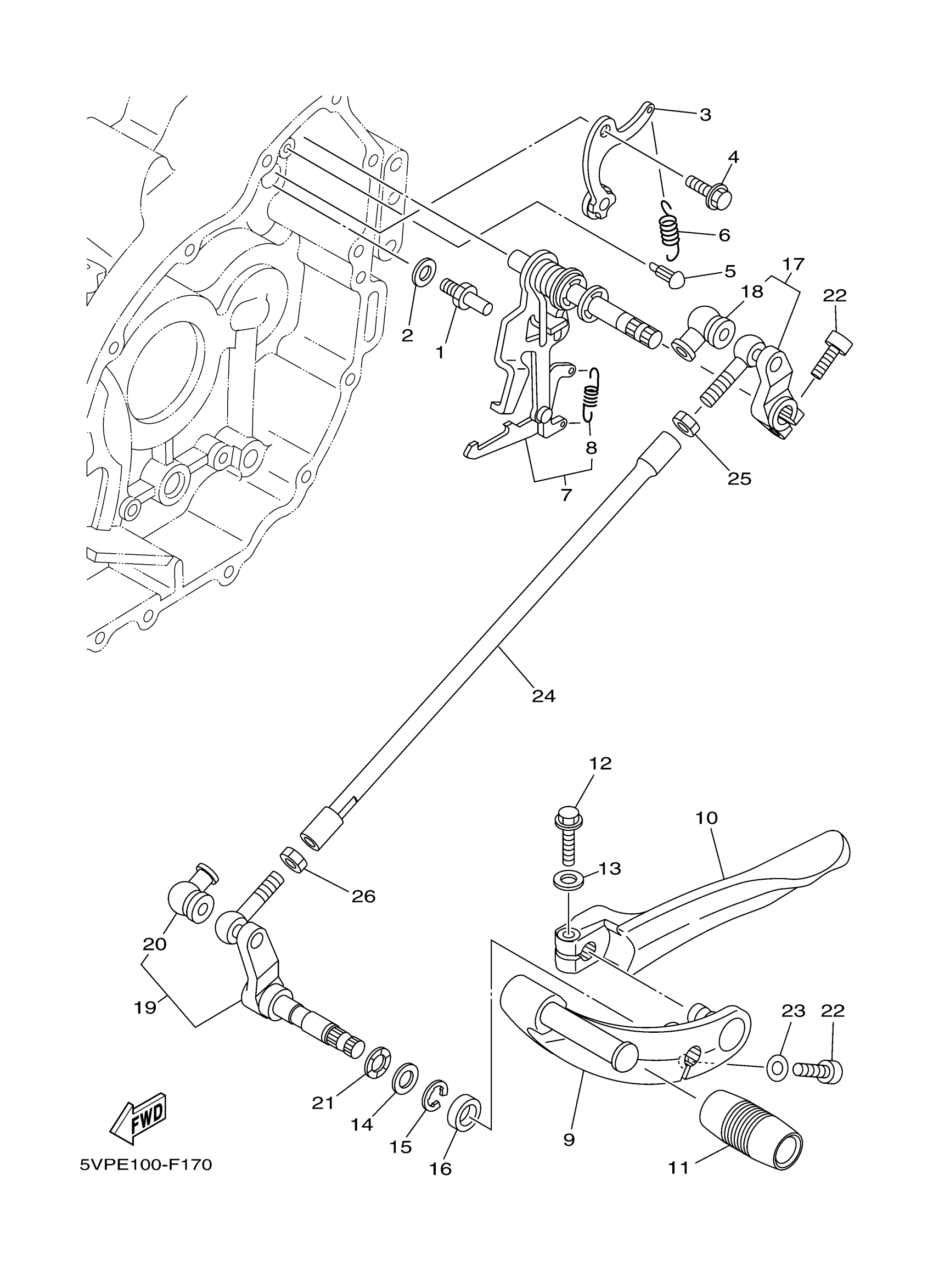

Yamaha XV17ASEP (ROAD STAR S) 2PU1 2014 SHIFT SHAFT Diagram

#

Description
Price

1

BOLT (1J7)

90109-08441-00

$8.49

2

WASHER PLATE 141181390000

90201-08085-00

$9.49

3

STOPPER LEVER ASSY

26H-18140-02-00

Unavailable

4

BOLT

90109-06036-00

$9.49

5

HOOK, SPRING

132-16346-00-00

$9.99

6

SPRING, TENSION

90506-16006-00

$3.55

7

SHIFT SHAFT ASSY

4WM-18101-01-00

Unavailable

8

SPRING, TENSION (4H7)

90506-08227-00

$4.19

9

PEDAL, SHIFT

1D7-18162-10-00

$460.99

10

PEDAL, REAR

1D7-18163-10-00

$227.99

11

COVER, SHIFT PEDAL

5VN-18113-00-00

$15.49

12

BOLT,SOCKET HEAD

91314-06025-00

$8.49

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

WASHER, PLATE

90201-12036-00

$7.49

15

CIRCLIP

99006-10600-00

$9.49

16

COVER, DUST

4WM-18154-00-00

Unavailable

17

SHIFT SHAFT ASSY

5VN-18130-00-00

Unavailable

18

COVER, DUST

2H9-18154-00-00

Unavailable

19

KNOB, SHIFTER

5VN-18164-00-00

Unavailable

20

COVER, DUST

2H9-18154-00-00

Unavailable

21

WASHER, WAVE

90206-12M00-00

Unavailable

22

BOLT,SOCKET HEAD

91314-06025-00

$8.49

23

WASHER, PLAIN (646)

92990-06600-00

$2.80

24

ROD, SHIFT

4WM-18115-00-00

Unavailable

25

. NUT

95380-08700-00

Unavailable

26

NUT(1KT)

90170-08358-00

Unavailable
