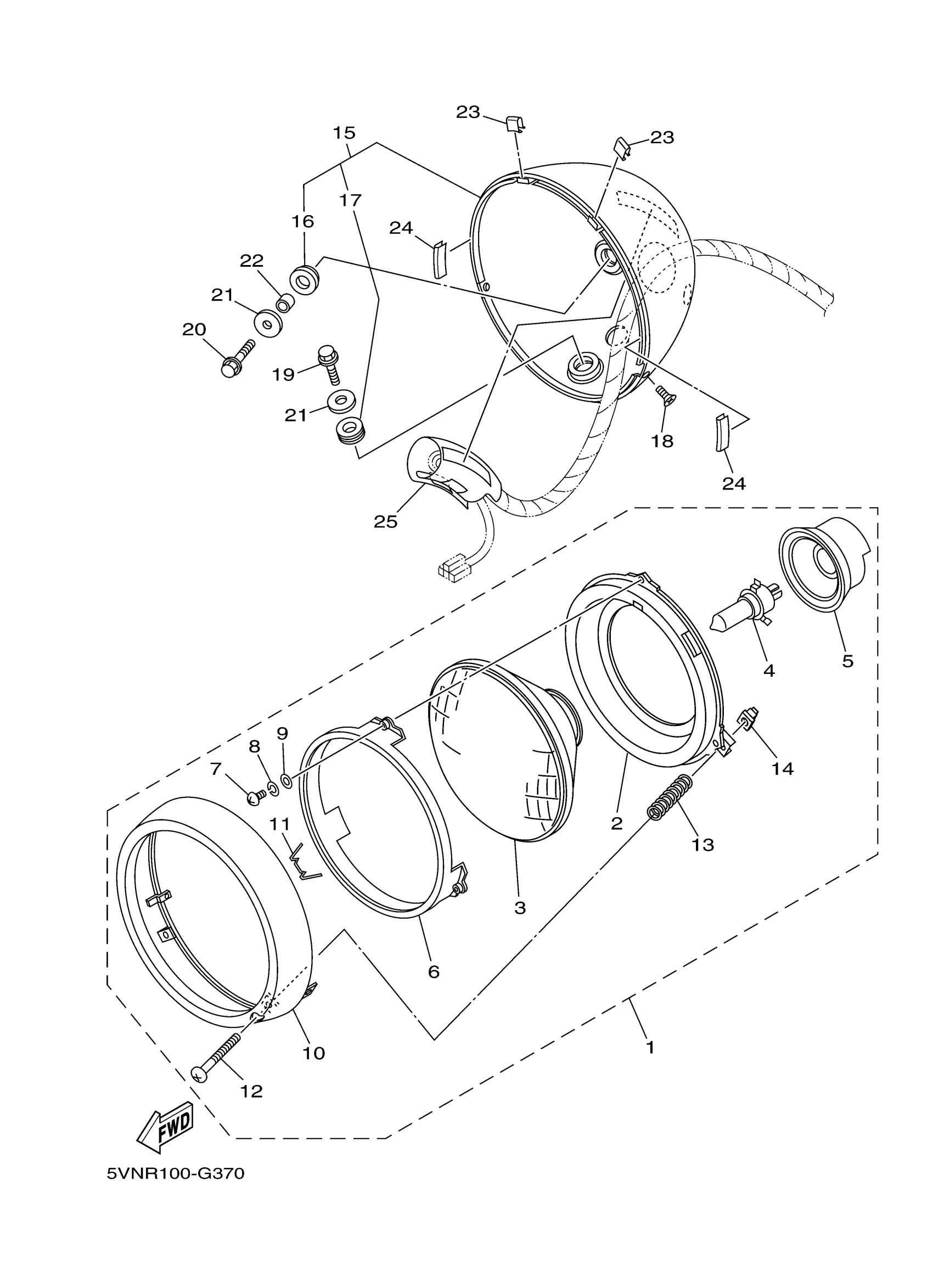

Yamaha XV17ASEP (ROAD STAR S) 2PU1 2014 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

5VN-84310-00-00

Unavailable

2

RING, MOUNTING

5VN-84394-00-00

Unavailable

3

LENS ASSY

4NK-84320-00-00

$216.99

4

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

5

COVER, SOCKET

3SX-84397-00-00

Unavailable

6

RING, RETAINING

2F9-84395-00-00

$58.99

7

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

WASHER, PLAIN

5VN-84344-00-00

Unavailable

10

RIM, HEADLIGHT

5VN-84315-00-00

$245.99

11

SPRING, REFLECTOR SET (FRAN)

290-84124-21-00

Unavailable

12

SCREW 214841316100

90157-04001-00

$8.49

13

SPRING, ADJUST

341-84332-60-00

$9.99

14

NUT, ADJUST

198-84334-60-00

$7.99

15

BODY ASSY

4WM-84330-00-00

$349.99

16

DAMPER, HEADLIGHT 1

42X-84366-00-00

Unavailable

17

DAMPER, HEADLIGHT 1

4WM-84366-00-00

Unavailable

18

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

19

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

21

WASHER, PLATE

90201-06086-00

Unavailable

22

COLLAR(4NK)

90387-0610J-00

Unavailable

23

SEAL

5JW-23844-00-00

Unavailable

24

SEAL

5VN-23844-00-00

Unavailable

25

HOLDER, 1

3D8-8411T-00-00

Unavailable
