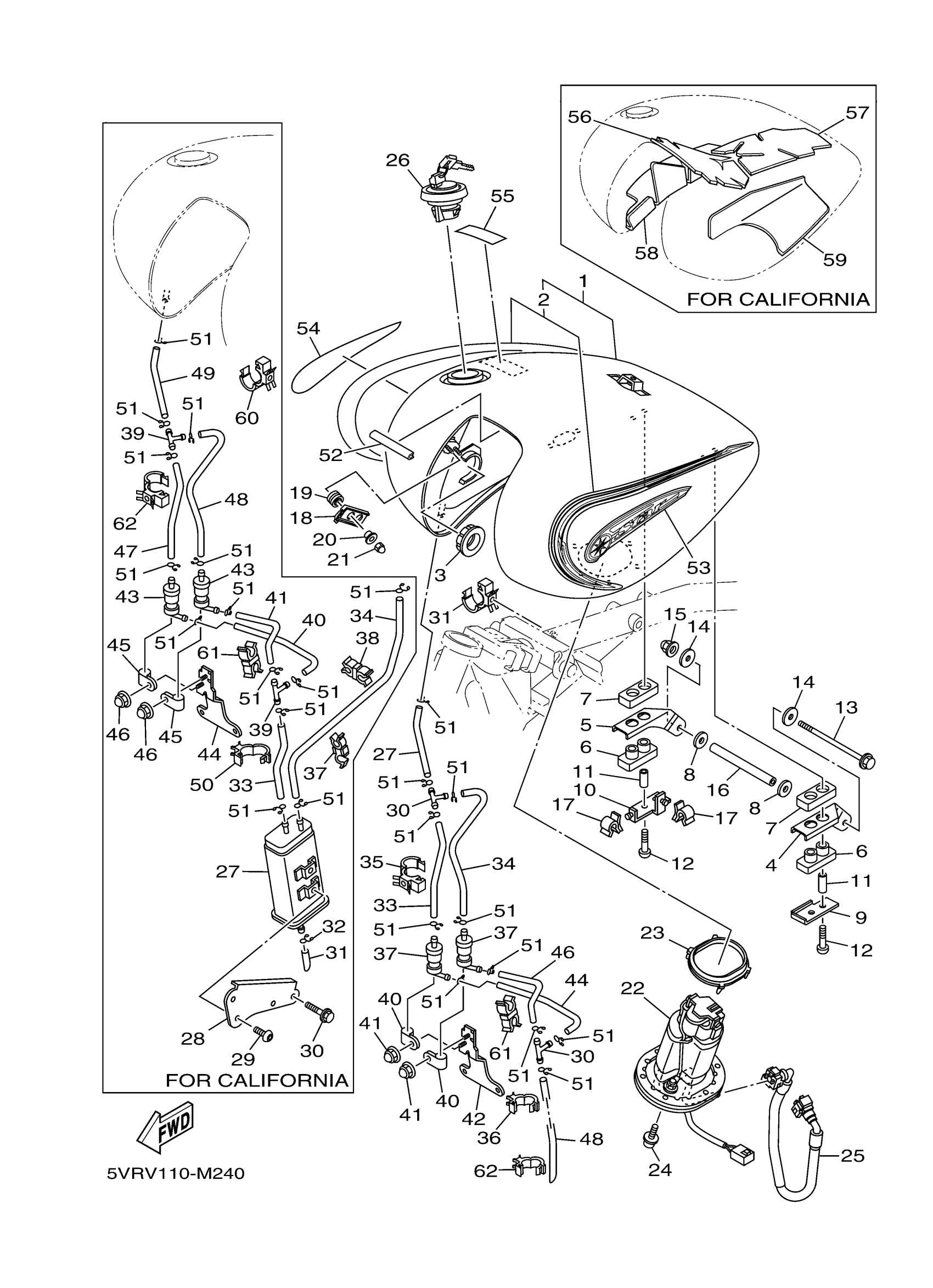

Yamaha XV17ASEP (ROAD STAR S) 2PU1 2014 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5VN-Y2410-00-W1

Unavailable

2

GRAPHIC SET

5VR-24240-90-00

Unavailable

3

DAMPER, LOCATING

4H7-24181-00-00

$6.99

4

BRACKET, FUEL TANK 1

5MB-24191-00-00

Unavailable

5

BRACKET, FUEL TANK 2

5MB-24192-00-00

Unavailable

6

DAMPER, LOCATING 1

5MB-24181-00-00

Unavailable

7

DAMPER, LOCATING 2

5MB-24182-00-00

$7.99

8

DAMPER, LOCATING 3

5MB-24183-00-00

$7.99

9

WASHER, SPECIAL

5MB-24186-00-00

Unavailable

10

WASHER, SPECIAL

5VN-24186-00-00

$14.49

11

COLLAR

90387-06062-00

Unavailable

12

BOLT, BUTTON

92017-06035-00

$3.13

13

BOLT, FLANGE

95817-06140-00

Unavailable

14

WASHER, PLATE 1012832300

90201-06066-00

$9.49

15

NUT, CROWN(1FN)

90176-06055-00

$5.60

16

COLLAR

90387-06061-00

Unavailable

17

CLAMP(4GY)

90464-08189-00

Unavailable

18

BRACKET, FUEL TANK 1

4WM-24291-00-00

Unavailable

19

GROMMET

4WM-24339-00-00

Unavailable

20

COLLAR(82M)

90387-050T5-00

Unavailable

21

NUT, CROWN

95302-05800-00

Unavailable

22

FUEL PUMP COMP.

5VN-13907-11-00

Unavailable

23

O-RING

5VN-24486-00-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

25

PIPE, FUEL 1

5VN-13971-01-00

Unavailable

26

CAP ASSY

4NK-24602-20-00

Unavailable

27

CANISTER ASSY

5PX-24170-00-00

Unavailable

28

BRACKET 5

5VN-2742L-00-00

Unavailable

29

BOLT,HEX. SOCKET BUTTON

90111-06103-00

Unavailable

30

BOLT, WASHER BASED

90105-06009-00

Unavailable

31

PIPE 14

3D8-24325-00-00

Unavailable

32

CLIP

90467-100A1-00

Unavailable

33

PIPE 11

5VN-24322-20-00

Unavailable

34

PIPE, OVERFLOW

5VN-24318-10-00

Unavailable

37

CLAMP

90464-09022-00

Unavailable

38

CLAMP

90464-09014-00

Unavailable

39

WAY 3 (10L)

90413-07007-00

Unavailable

40

PIPE 17

5VN-243A3-00-00

Unavailable

41

PIPE 18

5VN-243A4-00-00

Unavailable

43

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

44

STAY

5VN-24662-10-00

Unavailable

45

CLAMP

90464-15014-00

Unavailable

46

NUT, CROWN(47X)

90176-05054-00

Unavailable

47

PIPE 15

5VN-243A1-00-00

Unavailable

48

PIPE 16

5VN-243A2-00-00

Unavailable

49

PIPE 10

5VN-24321-30-00

Unavailable

50

CLAMP(4GY)

90464-20191-00

Unavailable

51

CLIP

90467-090A2-00

Unavailable

52

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

53

EMBLEM

35S-2416B-00-00

Unavailable

54

EMBLEM

35S-2417B-00-00

Unavailable

55

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

56

DAMPER, SIDE COVER

5VN-24145-00-00

Unavailable

57

DAMPER, PLATE 1

5VN-2414H-00-00

Unavailable

58

DAMPER, PLATE 2

5VN-2414J-00-00

Unavailable

59

DAMPER, PLATE 3

5VN-2414K-00-00

Unavailable

60

CLAMP(4KM)

90464-25217-00

Unavailable

61

CLAMP

90464-10M59-00

Unavailable

62

CLAMP(4KM)

90464-25217-00

Unavailable
