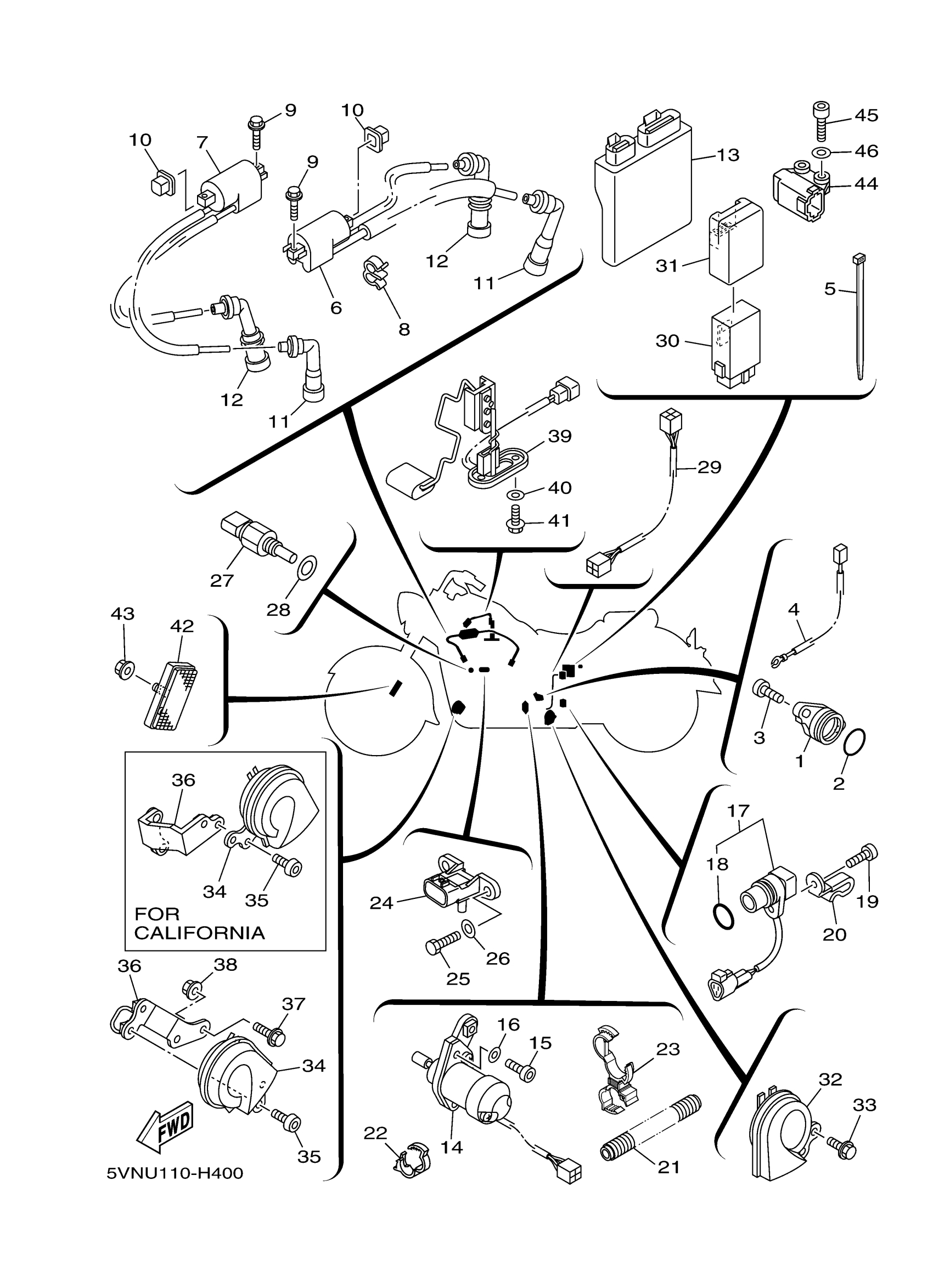

Yamaha XV17ASEP (ROAD STAR S) 2PU1 2014 ELECTRICAL 1 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

2

O-RING (371)

93210-29196-00

$8.49

3

SCREW

90149-06041-00

$1.28

4

WIRE, SUB LEAD

5VN-82509-00-00

$8.99

5

CLAMP

90464-16061-00

$8.49

6

IGNITION COIL ASSY

5VN-82310-20-00

Unavailable

7

IGNITION COIL ASSY

4WM-82310-10-00

Unavailable

8

CLIP(33M)

90468-15139-00

$7.49

9

BOLT, FLANGE

95817-06020-00

$3.81

10

DAMPER, IGNITION COIL

4U8-82317-00-00

Unavailable

11

PLUG CAP ASSY

4VW-82370-00-00

$69.99

12

PLUG CAP ASSY

4NK-82370-00-00

$73.99

13

ENGINE CONTROL UNIT ASSY

5VN-8591A-00-00

$889.99

14

SOLENOID

5VN-86110-10-00

$311.99

15

BOLT, HEXAGON SOCKET HEAD(1JK)

90110-06114-00

$10.49

16

WASHER, PLATE

90202-06002-00

Unavailable

17

SENSOR, SPEED

5YU-83755-02-00

Unavailable

18

O-RING

4D9-81168-00-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06014-00

Unavailable

20

CLAMP(4MX)

90465-06376-00

Unavailable

21

COVER

5VN-81842-00-00

Unavailable

22

CLAMP

90464-16003-00

Unavailable

23

CLAMP

90464-20008-00

Unavailable

24

SENSOR, PRESSURE

5PS-82380-00-00

Unavailable

25

BOLT(4GV)

97017-05012-00

Unavailable

26

WASHER(1RW)

92907-05600-00

Unavailable

27

THERMO UNIT

5PX-83591-00-00

Unavailable

28

WASHER, PLATE 3412175700

90201-12172-00

Unavailable

29

WIER, LEAD 1

5VN-82583-00-00

Unavailable

30

FLASHER RELAY ASSY

5VN-83350-11-00

Unavailable

31

HOLDER, RELAY

5VN-81952-00-00

Unavailable

32

HORN

4WM-83371-00-00

Unavailable

33

BOLT, FLANGE

95817-06012-00

Unavailable

34

HORN

5VN-83371-10-00

Unavailable

35

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

36

STAY, HORN

5VN-83378-20-00

Unavailable

39

SENDER UNIT ASSY, FUEL METER

5VN-85752-21-00

Unavailable

40

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

41

BOLT, FLANGE

95817-06016-00

Unavailable

42

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

43

NUT, S/L FLANGE

95607-05200-00

Unavailable

44

SENSOR, LEAN ANGLE

5VU-82576-03-00

Unavailable

45

BOLT,SOCKET

91317-04025-00

Unavailable

46

WASHER, PLATE (8M6)

90201-047A2-00

Unavailable
