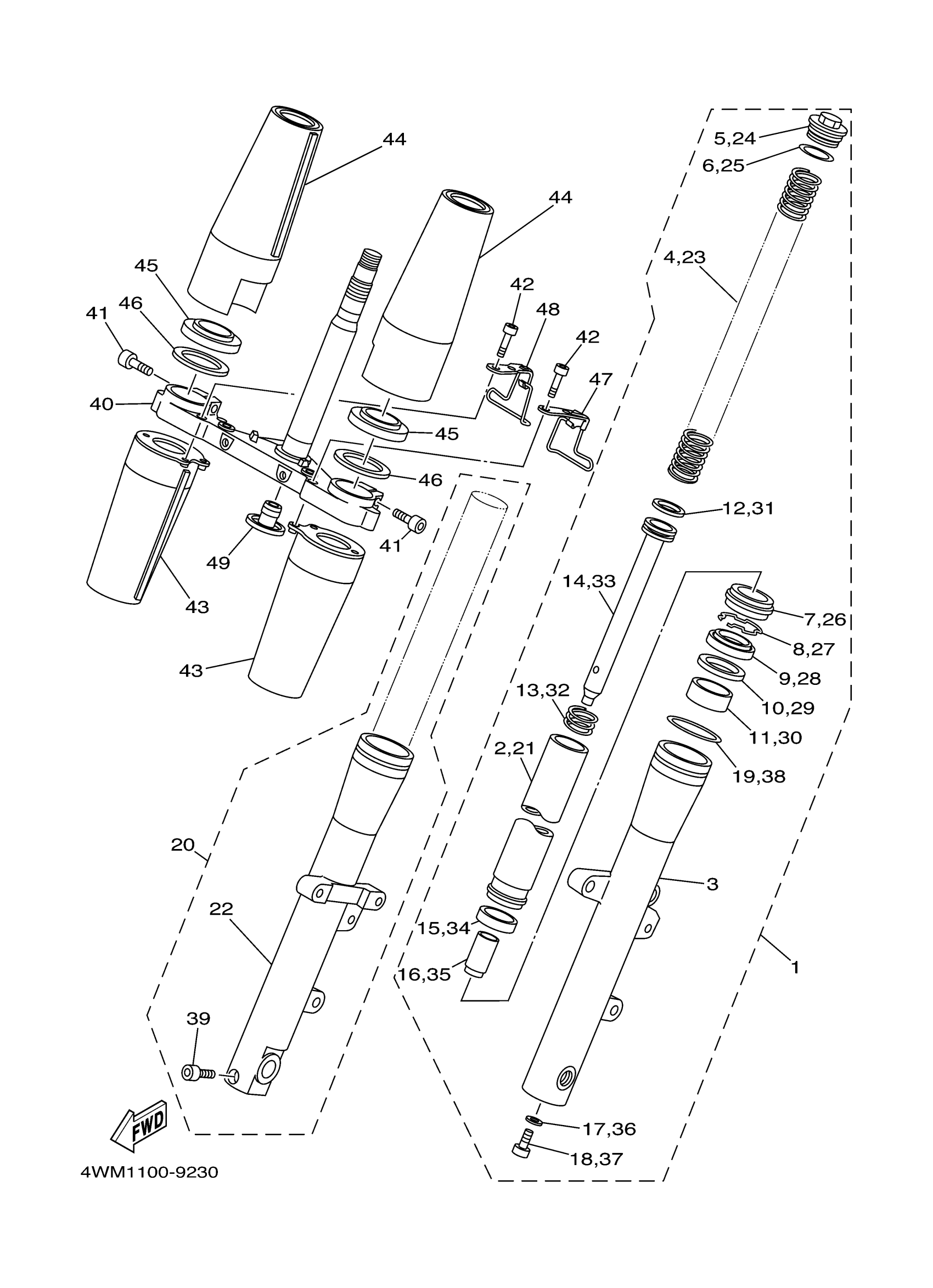

Yamaha XV17ASDCB (ROAD STAR S CA) 5VRW 2013 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5MB-23102-01-00
Unavailable
2
INNER TUBE COMP.1
4WM-23110-00-00
Unavailable
3
TUBE, OUTER (LEFT)
5MB-23126-00-00
Unavailable
4
SPRING, FRONT FORK
4WM-23141-00-00
Unavailable
7
SEAL, DUST
4NK-23144-00-00
Unavailable
8
RING, SNAP
34L-23153-00-00
Unavailable
11
METAL, SLIDE 1
4NK-23125-00-00
Unavailable
13
SPRING, REBOUND
4NK-23151-00-00
Unavailable
14
PISTON, FRONT FORK
4WM-23171-00-00
Unavailable
16
SPACER, OIL LOCK
4WM-23166-00-00
Unavailable
17
GASKET
3MA-23163-10-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
4NK-23181-00-00
Unavailable
19
GUIDE, BOOT
4NK-23193-00-00
Unavailable
20
FRONT FORK ASSY (R.H)
5MB-23103-01-00
Unavailable
21
INNER TUBE COMP.1
4WM-23110-00-00
Unavailable
22
TUBE, OUTER (RIGHT)
5MB-23136-00-00
Unavailable
23
SPRING, FRONT FORK
4WM-23141-00-00
Unavailable
26
SEAL, DUST
4NK-23144-00-00
Unavailable
27
RING, SNAP
34L-23153-00-00
Unavailable
30
METAL, SLIDE 1
4NK-23125-00-00
Unavailable
32
SPRING, REBOUND
4NK-23151-00-00
Unavailable
33
PISTON, FRONT FORK
4WM-23171-00-00
Unavailable
35
SPACER, OIL LOCK
4WM-23166-00-00
Unavailable
36
GASKET
3MA-23163-10-00
Unavailable
37
BOLT, HEXAGON SOCKET HEAD
4NK-23181-00-00
Unavailable
38
GUIDE, BOOT
4NK-23193-00-00
Unavailable
39
BOLT, SOCKET
91314-08035-00
Unavailable
40
UNDER BRACKET COMP.
4WM-23340-01-00
Unavailable
41
BOLT, SOCKET
91317-08030-00
Unavailable
42
BOLT, HEXAGON SOCKET HEAD
4NK-23181-10-00
Unavailable
43
COVER, LOWER 1
5MB-23123-00-00
Unavailable
44
COVER, UPPER 1
5MB-23121-00-00
Unavailable
45
GASKET
4NK-23163-00-00
Unavailable
46
WASHER, FELT
4NK-23165-00-00
Unavailable
47
HOLDER, BRAKE HOSE 2
4WM-25876-00-00
Unavailable
48
HOLDER, BRAKE HOSE
4WM-25887-00-00
Unavailable
49
COVER, LOWER 1
4KM-23123-01-00
Unavailable
