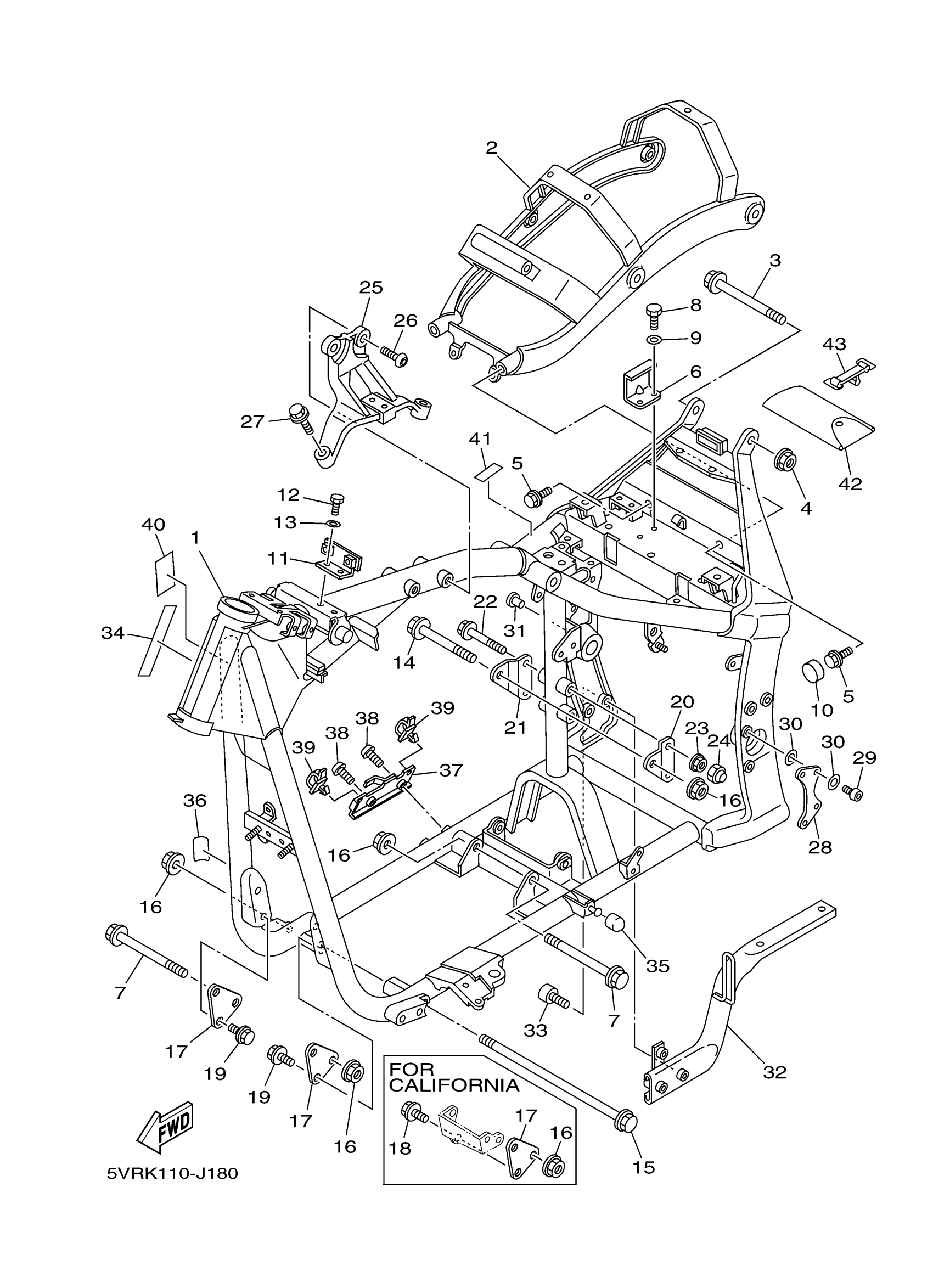

Yamaha XV17ASDCB (ROAD STAR S CA) 5VRW 2013 FRAME Diagram
#
1
FRAME COMP.
5VN-21110-20-00
Unavailable
2
REAR FRAME COMP.
5VN-21190-00-00
Unavailable
3
BOLT, FLANGE
90105-12016-00
Unavailable
6
BRKT
5VN-2115C-00-00
Unavailable
7
BOLT, FLANGE
90105-12087-00
Unavailable
8
BOLT
97027-05010-00
Unavailable
11
BRACKET, SEAT
5VN-2134M-00-00
Unavailable
12
BOLT
97027-05010-00
Unavailable
15
BOLT, WASHER BASED
90105-126A6-00
Unavailable
16
NUT, U FLANGE
95607-12200-00
Unavailable
17
STAY, ENGINE 5
4WM-21314-00-00
Unavailable
19
BOLT, FLANGE(3HP)
95817-10016-00
Unavailable
20
STAY, ENGINE 2
4WM-21315-00-00
Unavailable
21
STAY, ENGINE 3
4WM-21316-00-00
Unavailable
22
BOLT, WASHER BASED(4HM)
90105-10737-00
Unavailable
23
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
24
CAP
5YU-2143A-00-00
Unavailable
25
STAY, ENGINE 3
5VN-21317-10-00
Unavailable
26
BOLT,HEX. SOCKET BUTTON
90111-10047-00
Unavailable
28
STAY 1
5VN-2137F-00-00
Unavailable
29
BOLT
90111-10003-00
Unavailable
30
WASHER, PLATE
90201-11013-00
Unavailable
31
PLUG (341-26329-00)
90338-09012-00
Unavailable
32
STAY, MUFFLER 1
5MB-21445-00-00
Unavailable
33
BOLT, SOCKET
91317-10025-00
Unavailable
34
PROTECTOR
3D8-2117G-00-00
Unavailable
35
STOPPER, MAIN STAND
3VR-27114-00-00
Unavailable
36
SEAL
5VN-21268-00-00
Unavailable
37
PLATE, CONNECTOR
5VN-8257V-00-00
Unavailable
38
BOLT, BUTTON
92017-06020-00
Unavailable
39
CLAMP
90464-07001-00
Unavailable
40
SEAL
5BM-21268-00-00
Unavailable
41
OIL, LABEL
5VP-1548B-00-00
Unavailable
42
TOOL KIT
5VN-28100-00-00
Unavailable
43
BAND, TOOL
46X-21376-00-00
Unavailable
