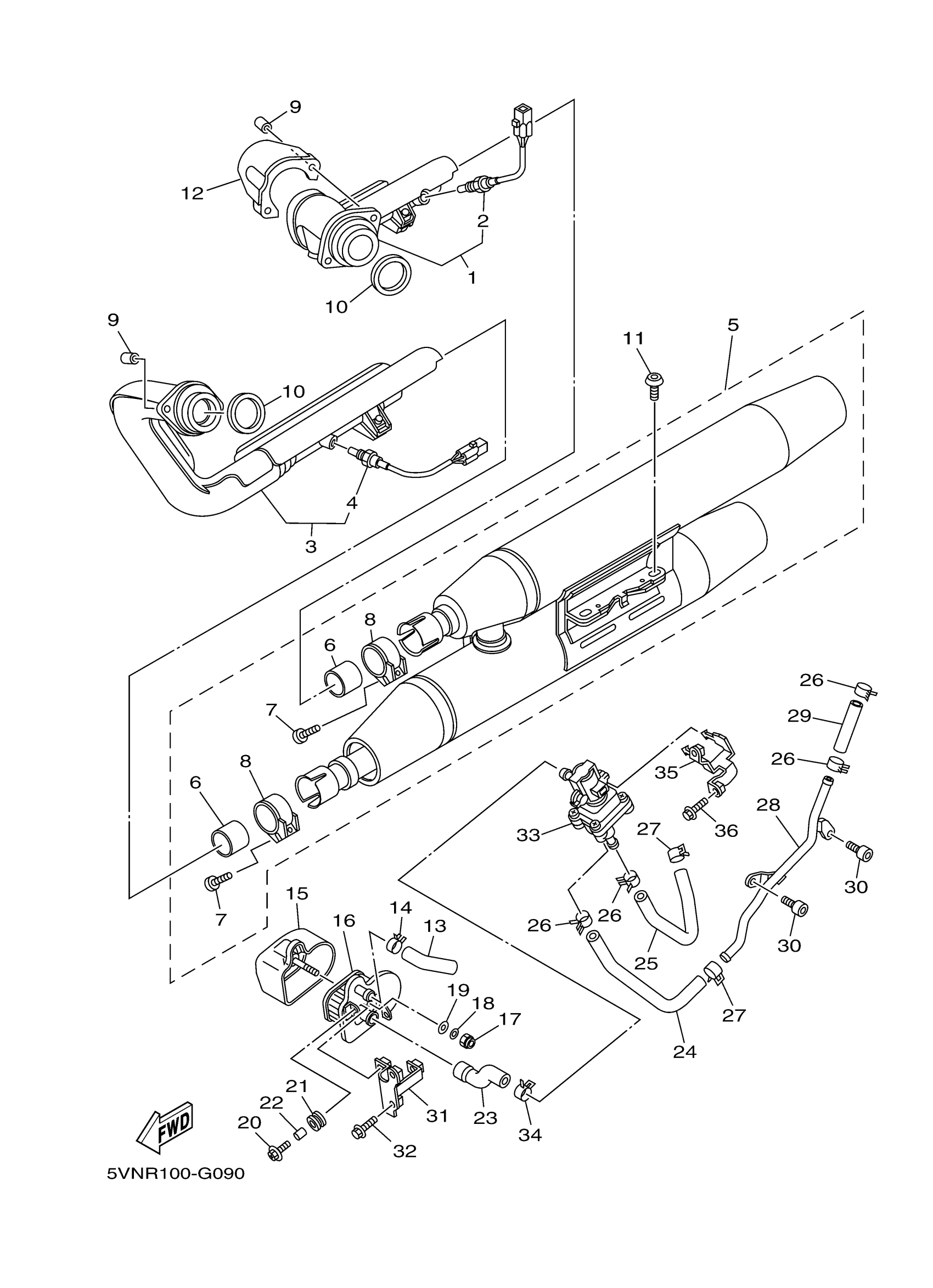

Yamaha XV17ASDCB (ROAD STAR S CA) 5VRW 2013 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSY 1
2D9-14610-00-00
Unavailable
3
EXHAUST PIPE ASSY 2
2D9-14620-00-00
Unavailable
5
MUFFLER ASSY 1
2D9-14710-00-00
Unavailable
12
COVER, EXHAUST
2D9-14624-00-00
Unavailable
13
HOSE, BEND 5
4WM-14885-00-00
Unavailable
16
CAP, CASE
5VN-14858-00-00
Unavailable
17
NUT, U
95617-05100-00
Unavailable
18
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
19
WASHER, PLATE (463)
90202-05057-00
Unavailable
20
BOLT, W/WASHER (3V2)
90119-05020-00
Unavailable
21
GROMMET(3GM)
90480-10517-00
Unavailable
22
COLLAR(4EU)
90387-0501W-00
Unavailable
23
HOSE, BEND 2
5VN-14882-00-00
Unavailable
24
HOSE, BEND 4
5VN-14884-10-00
Unavailable
25
HOSE, BEND 6
5VN-14886-20-00
Unavailable
26
CLIP
90468-08104-00
Unavailable
27
CLIP
90467-160A2-00
Unavailable
28
PIPE 1
5VN-14871-10-00
Unavailable
29
HOSE (L64)
90445-16004-00
Unavailable
30
BOLT,SOCKET HEAD
91314-06014-00
Unavailable
31
BRACKET 2
5VN-14868-00-00
Unavailable
32
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
33
AIR INDUCTION SYSTEM ASSY
5VN-14803-00-00
Unavailable
34
CLIP(3TB)
90467-17128-00
Unavailable
35
BRACKET 3
5VN-14869-00-00
Unavailable
36
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
