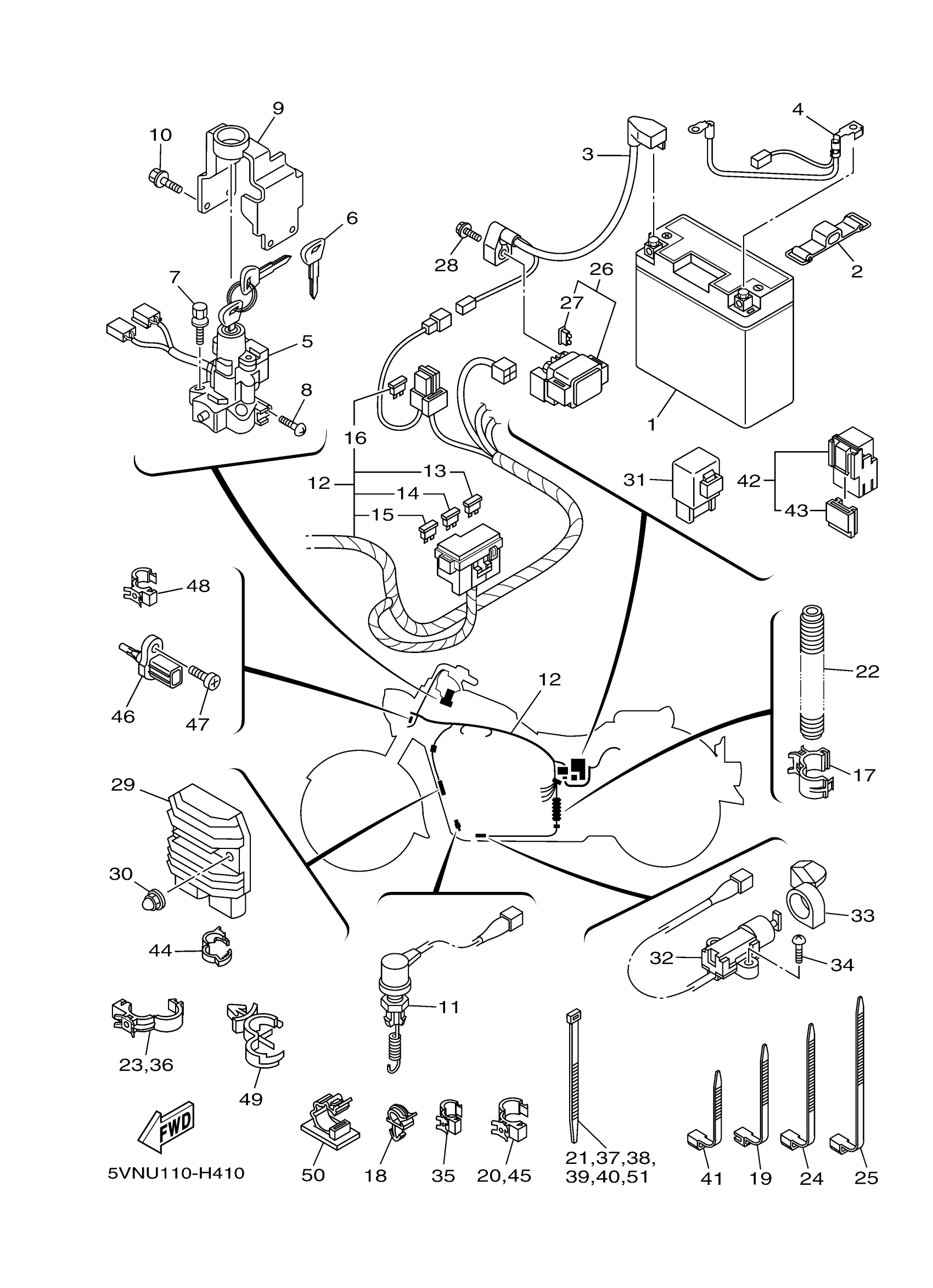

Yamaha XV17ASDCB (ROAD STAR S CA) 5VRW 2013 ELECTRICAL 2 Diagram
#
1
GT14B4 GS BATTERY - FA
GT1-4B400-00-00
Unavailable
3
WIRE, PLUS LEAD
5VN-82115-00-00
Unavailable
4
WIRE, MINUS LEAD
5VN-82116-00-00
Unavailable
9
COVER, MAIN SWITCH
4WM-82568-00-00
Unavailable
11
STOP SWITCH ASSY
5VN-82530-11-00
Unavailable
12
WIRE HARNESS ASSY
5VN-82590-40-00
Unavailable
14
FUSE (15A)
67F-82151-50-00
Unavailable
15
. FUSE (3A)
67F-82151-30-00
Unavailable
16
FUSE (50A)
5JW-82151-10-00
Unavailable
17
CLAMP(4GY)
90464-20191-00
Unavailable
18
CLAMP
90464-08263-00
Unavailable
19
CLAMP(4FM)
90464-15195-00
Unavailable
20
CLAMP(4HM)
90464-15192-00
Unavailable
21
BAND
1UA-82591-00-00
Unavailable
22
TUBE
4WM-82139-00-00
Unavailable
23
CLAMP(4GY)
90464-20191-00
Unavailable
24
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
25
CLAMP, HOSE(3KJ)
90460-15126-00
Unavailable
26
STARTER RELAY ASSY (RC19-078A)
5VN-81940-00-00
Unavailable
27
FUSE (12V 15A)
36Y-82151-00-00
Unavailable
28
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
29
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
Unavailable
30
NUT, CROWN(1FN)
90176-06055-00
Unavailable
31
RELAY ASSY
5VK-81950-33-00
Unavailable
32
SWITCH, SIDE STAND
3D8-82566-71-00
Unavailable
33
COVER
4WM-8252U-00-00
Unavailable
34
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
35
CLAMP(4GY)
90464-10190-00
Unavailable
36
CLAMP(4GY)
90464-20191-00
Unavailable
37
BAND
1UA-82591-00-00
Unavailable
38
BAND
1UA-82591-00-00
Unavailable
39
BAND
1UA-82591-00-00
Unavailable
40
BAND
1UA-82591-00-00
Unavailable
41
CLAMP
90464-25004-00
Unavailable
42
RELAY ASSY (5EA-02)
5EA-81950-20-00
Unavailable
43
HOLDER,RELAY
5EA-81952-00-00
Unavailable
44
CLAMP
90464-16003-00
Unavailable
45
CLAMP(4HM)
90464-15192-00
Unavailable
46
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
Unavailable
47
SCREW, PAN
98517-05012-00
Unavailable
48
CLAMP(4GY)
90464-08189-00
Unavailable
49
CLAMP(M80)
90464-07209-00
Unavailable
50
CLAMP
90464-20014-00
Unavailable
51
BAND
1UA-82591-00-00
Unavailable
