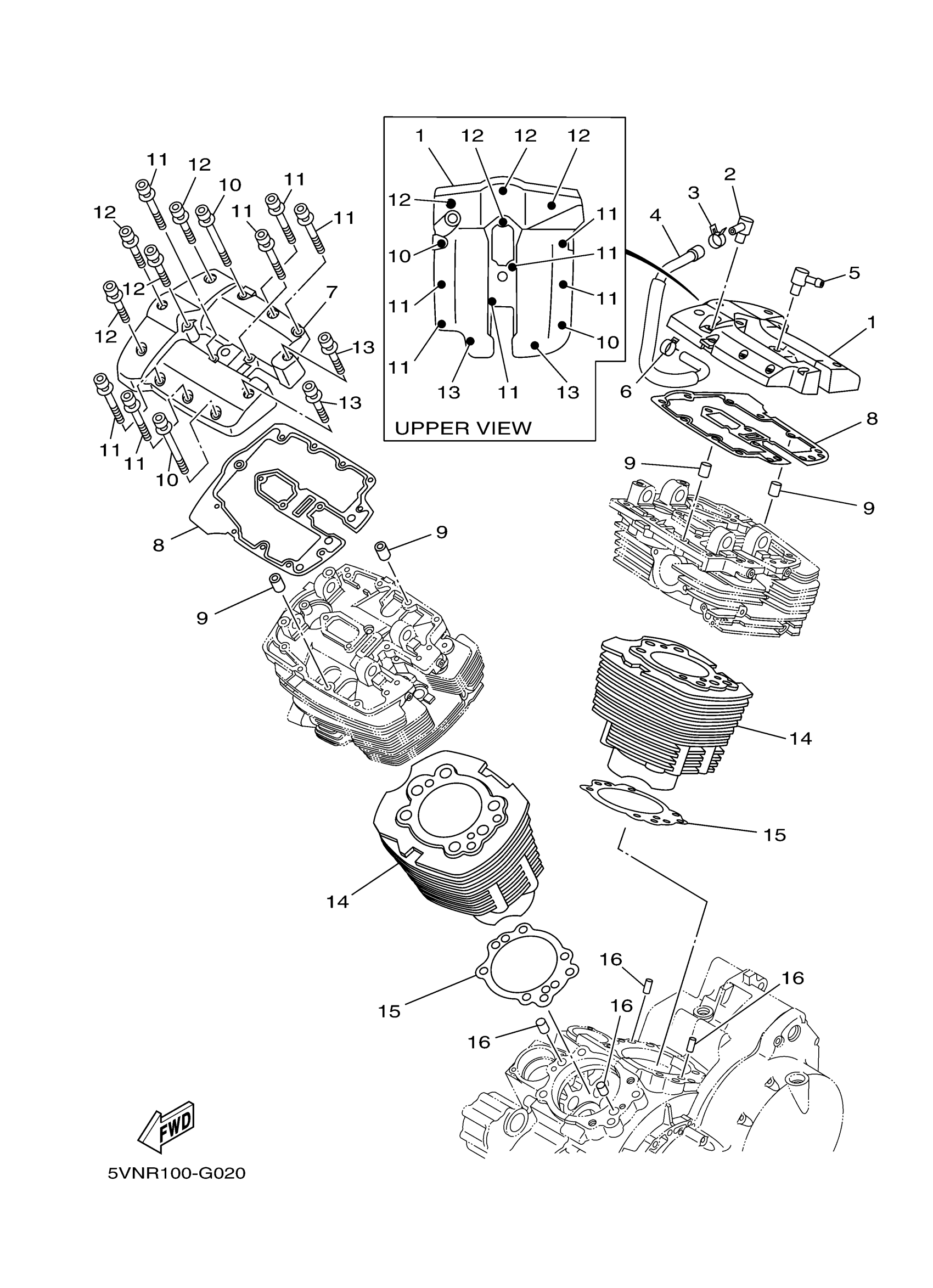

Yamaha XV17ASDCB (ROAD STAR S CA) 5VRW 2013 CYLINDER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD 1

5VN-11191-00-00

Unavailable

2

BREATHER

4GL-15371-01-00

Unavailable

3

CLIP (7K7)

90467-11044-00

$8.49

4

PIPE, BREATHER 1

5VN-11166-10-00

Unavailable

5

PIPE, BREATHER 3

4WM-11126-00-00

Unavailable

6

CLIP (5K4)

90467-14057-00

$8.49

7

COVER, CYLINDER HEAD 2

5VN-11192-00-00

Unavailable

8

GASKET, HEAD COVER 1

5VN-11193-01-00

Unavailable

9

PIN, DOWEL(3XW)

91808-16023-00

$8.49

10

BOLT, HEXAGON SOCKET HEAD

90110-06298-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD

90110-06312-00

$3.35

12

BOLT, HEXAGON SOCKET HEAD

90110-06299-00

$7.49

13

BOLT, HEXAGON SOCKET HEAD

90110-06299-00

$7.49

14

CYLINDER 1

5VN-11311-01-00

Unavailable

15

GASKET, CYLINDER

4WM-11351-00-00

$25.99

16

COLLAR (4X7)

90387-087A5-00

Unavailable
