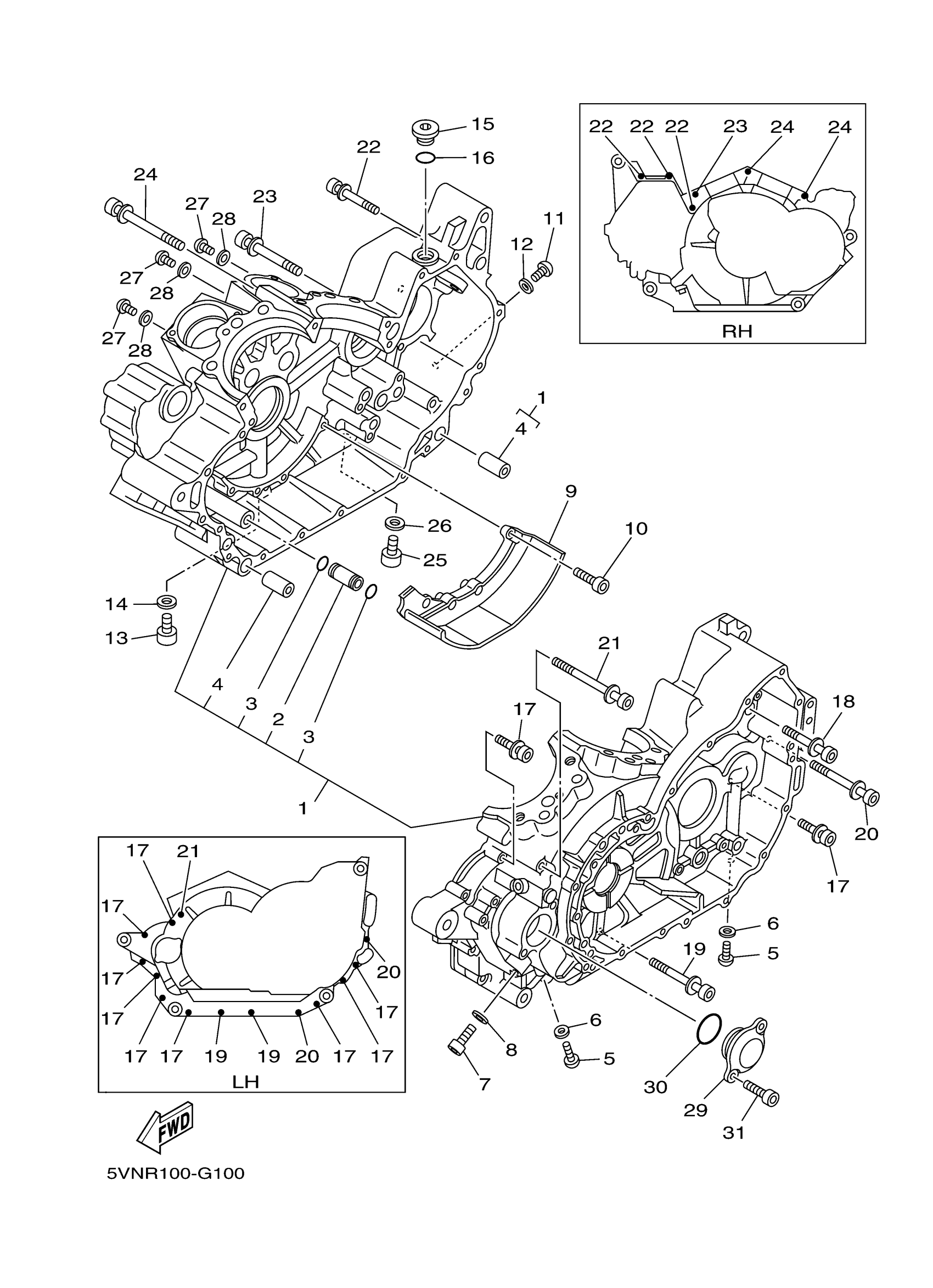

Yamaha XV17ASDCB (ROAD STAR S CA) 5VRW 2013 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
5VN-15100-20-00
Unavailable
2
NOZZLE 1
4WM-15138-00-00
Unavailable
6
GASKET
90430-05126-00
Unavailable
9
PLATE, BUFFLE 1
4WM-15123-00-00
Unavailable
10
BOLT,SOCKET
91317-06020-00
Unavailable
12
GASKET
90430-05126-00
Unavailable
16
O-RING
93210-20003-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
90110-06299-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
90110-06298-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
90110-06313-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD
90110-06314-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-06315-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD
90110-06298-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD
90110-08095-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD
90110-08098-00
Unavailable
27
BOLT, BUTTON HEAD(4NK)
92014-05010-00
Unavailable
28
GASKET
90430-05126-00
Unavailable
29
COVER, CAP
5VN-15417-00-00
Unavailable
30
O-RING(2TY)
93210-36769-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
90110-06310-00
Unavailable
