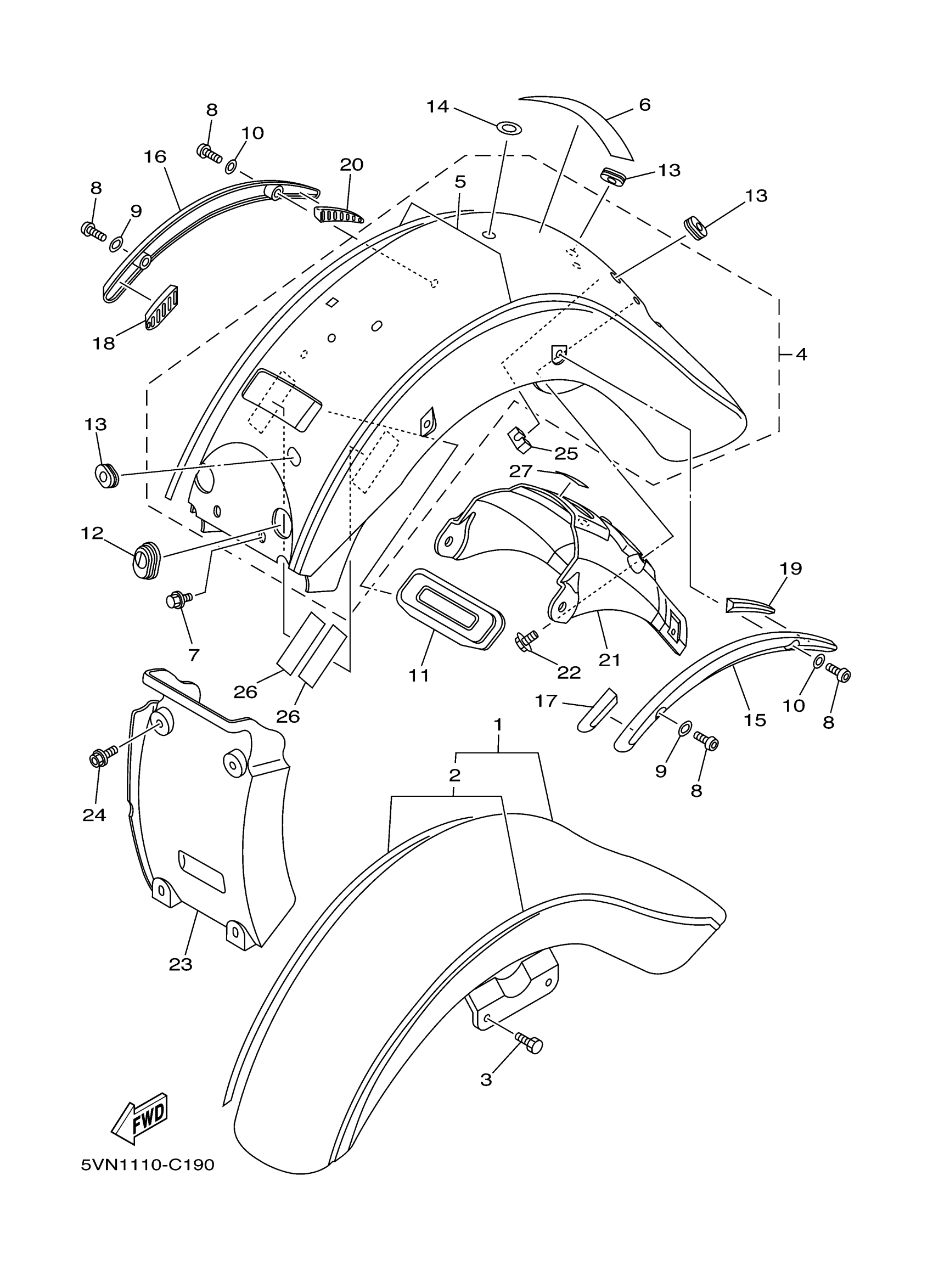

Yamaha XV17ASC (ROAD STAR CA) 5VN2 2004 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY (BLUISH WHITE COCKTAIL 1)
5VN-Y2150-00-P6
Unavailable
1
FRONT FENDER ASSY (BLACK METALLIC X) (DULL RED METALLIC D)
5VN-Y2150-30-5Y
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DULL RED METALLIC D)
4WM-21570-K0-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (BLUISH WHITE COCKTAIL 1)
5VN-21570-00-00
Unavailable
4
REAR FENDER COMP. (BLUISH WHITE COCKTAIL 1)
5VN-Y2161-00-P0
Unavailable
4
REAR FENDER COMP. (BLACK METALLIC X) (DULL RED METALLIC D)
5VN-Y2161-30-2X
Unavailable
5
.. GRAPHIC SET, REAR FENDER (DULL RED METALLIC D)
4WM-2165A-K0-00
Unavailable
5
.. GRAPHIC SET, REAR FENDER (BLUISH WHITE COCKTAIL 1)
5VN-2165A-00-00
Unavailable
10
WASHER, SPECIAL 2
5VN-21616-00-00
Unavailable
12
DAMPER 1
4WM-21638-00-00
Unavailable
13
GROMMET
90480-01015-00
Unavailable
14
SEAL 2
5VN-21735-00-00
Unavailable
15
STAY 1
4WM-2164F-00-00
Unavailable
16
STAY 2
4WM-2164G-00-00
Unavailable
17
DAMPER 1
4WM-21541-00-00
Unavailable
18
DAMPER 2
4WM-21542-00-00
Unavailable
19
DAMPER
4WM-2174X-00-00
Unavailable
20
DAMPER
4WM-2174Y-00-00
Unavailable
21
STAY, REAR
5VN-21643-00-00
Unavailable
22
BOLT, FLANGE
95817-06012-00
Unavailable
23
GUARD, MUD
4WM-21629-00-P8
Unavailable
23
GUARD, MUD (DULL RED METALLIC D)
4WM-21629-00-P9
Unavailable
24
BOLT, WITH WASHER
90119-06226-00
Unavailable
25
DAMPER 2
5VN-21639-00-00
Unavailable
26
PROTECTOR
5PW-23472-00-00
Unavailable
27
DAMPER
22F-2139X-00-00
Unavailable
