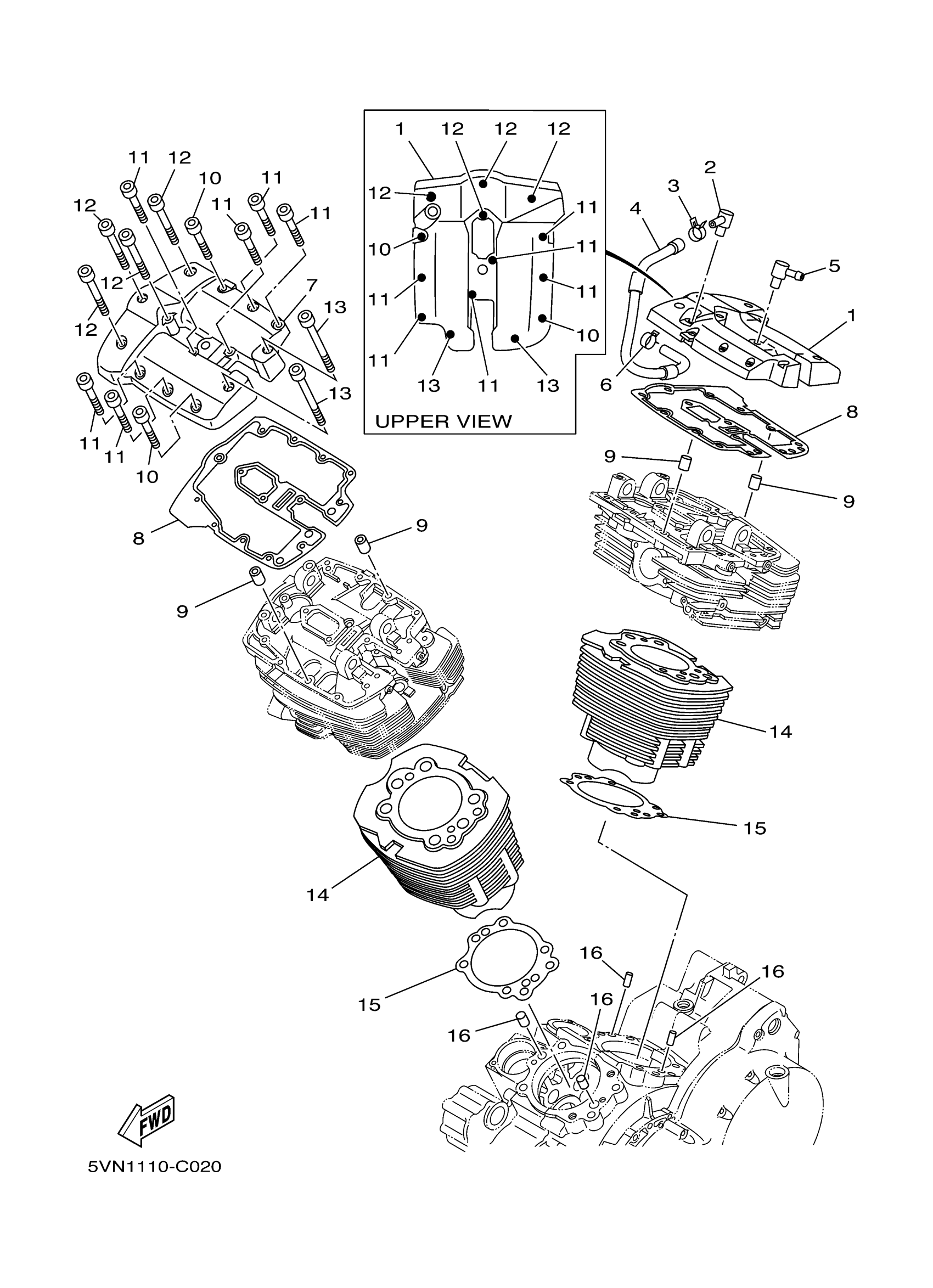

Yamaha XV17ASC (ROAD STAR CA) 5VN2 2004 CYLINDER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD 1

5VN-11191-00-00

Unavailable

2

BREATHER

4GL-15371-01-00

Unavailable

3

CLIP (7K7)

90467-11044-00

$4.89

4

PIPE, BREATHER 1

5VN-11166-00-00

$32.65

5

PIPE, BREATHER 3

4WM-11126-00-00

Unavailable

6

CLIP (5K4)

90467-14057-00

$7.03

7

COVER, CYLINDER HEAD 2

5VN-11192-00-00

Unavailable

8

GASKET, HEAD COVER 1

5VN-11193-01-00

Unavailable

9

PIN, DOWEL(3XW)

91808-16023-00

$5.26

10

BOLT, SOCKET

91314-06060-00

$6.22

11

BOLT,SOCKET

91314-06050-00

$5.75

12

BOLT, SOCKET

91314-06040-00

$5.75

13

BOLT, SOCKET

91314-06040-00

$5.75

14

CYLINDER 1

5VN-11311-01-00

Unavailable

15

GASKET, CYLINDER

4WM-11351-00-00

$20.85

16

COLLAR (4X7)

90387-087A5-00

Unavailable
