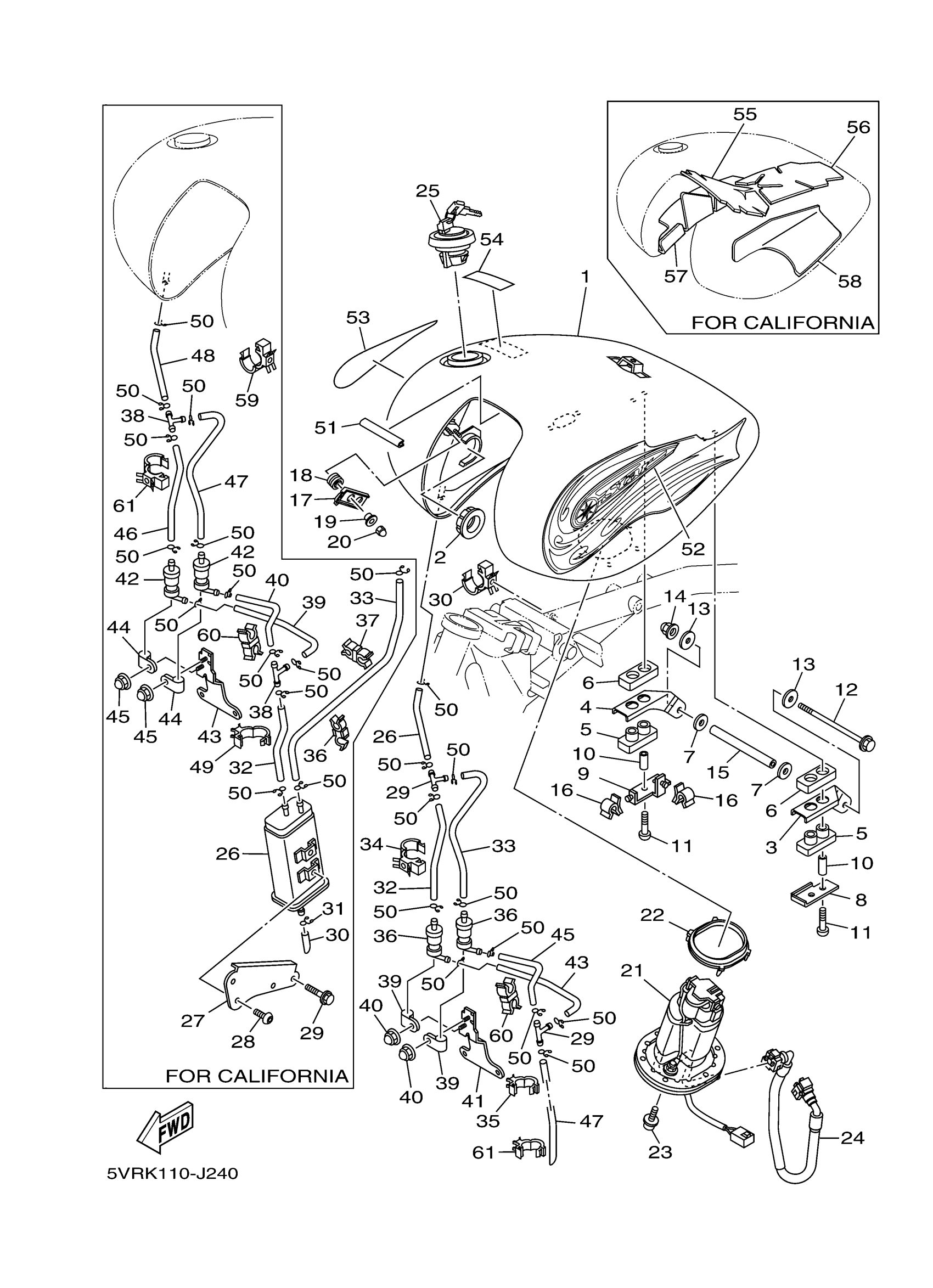

Yamaha XV17ASACB (ROAD STAR S CA) 5VRP 2011 FUEL TANK Diagram
#
1
FUEL TANK COMP. (BLACK METALLIC X)
5VN-Y2410-00-X4
Unavailable
3
BRACKET, FUEL TANK 1
5MB-24191-00-00
Unavailable
4
BRACKET, FUEL TANK 2
5MB-24192-00-00
Unavailable
5
DAMPER, LOCATING 1
5MB-24181-00-00
Unavailable
8
WASHER, SPECIAL
5MB-24186-00-00
Unavailable
10
COLLAR
90387-06062-00
Unavailable
12
BOLT, FLANGE
95817-06140-00
Unavailable
16
CLAMP(4GY)
90464-08189-00
Unavailable
17
BRACKET, FUEL TANK 1
4WM-24291-00-00
Unavailable
18
GROMMET
4WM-24339-00-00
Unavailable
19
COLLAR(82M)
90387-050T5-00
Unavailable
20
NUT, CROWN
95302-05800-00
Unavailable
21
FUEL PUMP COMP.
5VN-13907-11-00
Unavailable
22
O-RING
5VN-24486-00-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
24
PIPE, FUEL 1
5VN-13971-01-00
Unavailable
25
CAP ASSY
4NK-24602-20-00
Unavailable
26
PIPE 10
5VN-24321-30-00
Unavailable
29
WAY 3 (10L)
90413-07007-00
Unavailable
30
CLAMP(4KM)
90464-25217-00
Unavailable
32
PIPE 15
5VN-243A1-00-00
Unavailable
33
PIPE 16
5VN-243A2-00-00
Unavailable
34
CLAMP(4KM)
90464-25217-00
Unavailable
35
CLAMP(4GY)
90464-10190-00
Unavailable
36
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
39
CLAMP
90464-15014-00
Unavailable
40
NUT, CROWN(47X)
90176-05054-00
Unavailable
41
STAY
5VN-24662-10-00
Unavailable
43
PIPE 17
5VN-243A3-00-00
Unavailable
45
PIPE 18
5VN-243A4-00-00
Unavailable
47
PIPE 11
5VN-24322-10-00
Unavailable
50
CLIP
90467-090A2-00
Unavailable
51
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
52
EMBLEM
35S-2416B-00-00
Unavailable
53
EMBLEM
35S-2417B-00-00
Unavailable
54
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
60
CLAMP
90464-10M59-00
Unavailable
61
CLAMP(4GY)
90464-10190-00
Unavailable
