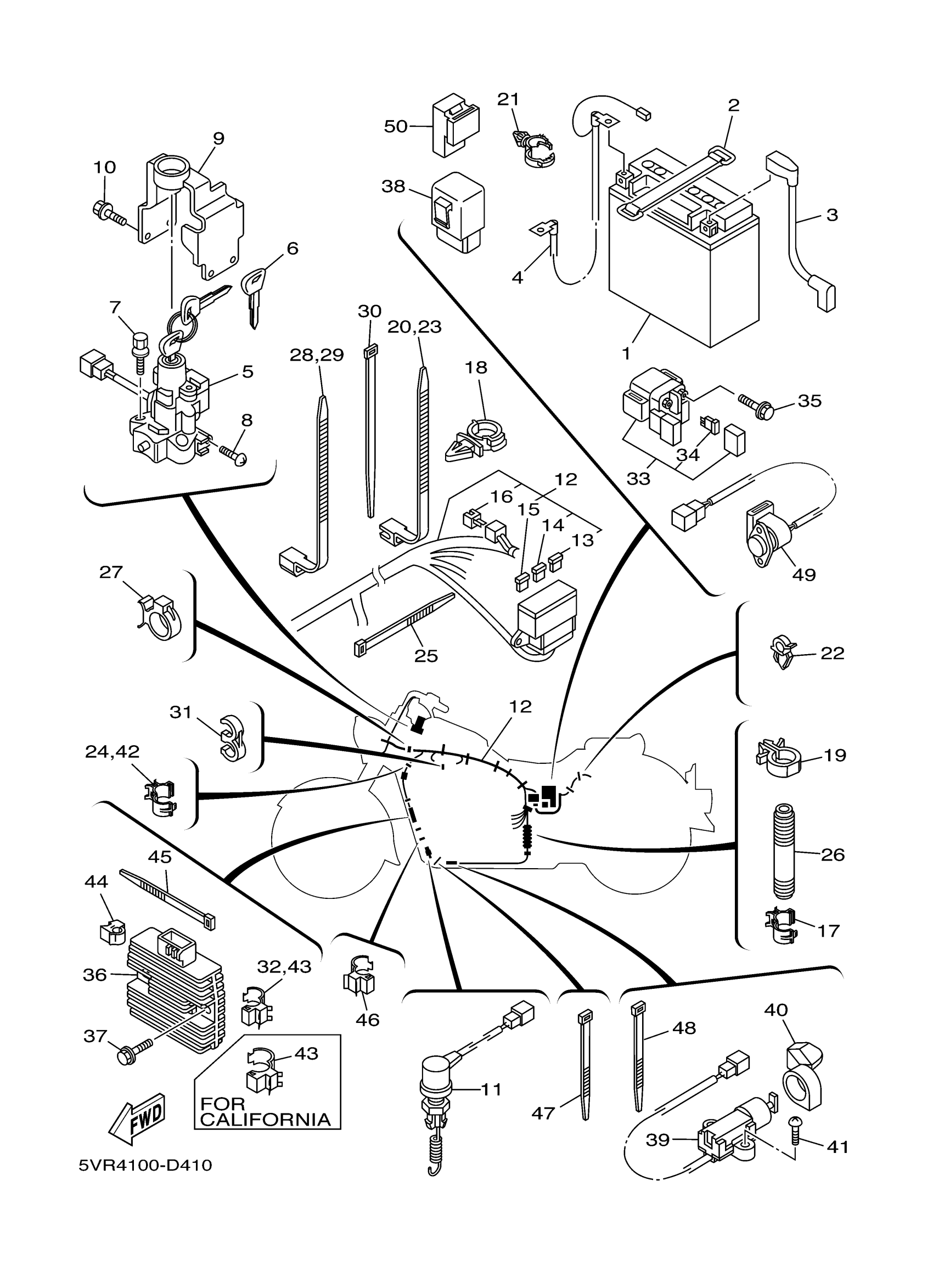

Yamaha XV17AMVC (ROAD STAR MIDNIGHT CA) 5VR8 2006 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

2

BAND, BATTERY

4WM-82131-00-00

Unavailable

3

WIRE, PLUS LEAD

4NK-82115-00-00

$38.99

4

WIRE, MINUS LEAD

4WM-82116-00-00

$43.99

5

MAIN SWITCH STEERING LOCK

5VN-82501-02-00

$245.99

6

BLANK KEY

5PX-82511-09-00

$73.99

7

BOLT

90109-08196-00

$8.49

8

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

9

COVER, MAIN SWITCH

4WM-82568-00-00

Unavailable

10

BOLT, FLANGE

95817-06016-00

$2.75

11

STOP SWITCH ASSY

5VN-82530-00-00

Unavailable

12

WIRE HARNESS ASSY

5VN-82590-20-00

Unavailable

12

WIRE HARNESS ASSY

5VN-82590-30-00

Unavailable

13

FUSE (10A)

42X-82151-00-00

$4.32

14

FUSE (12V 15A)

36Y-82151-00-00

$4.94

15

FUSE

1NL-82151-00-00

Unavailable

16

DIODE ASSY

3WP-81980-00-00

Unavailable

17

CLAMP(4GY)

90464-20191-00

Unavailable

18

CLAMP(M80)

90464-07209-00

Unavailable

19

CLAMP(4NK)

90464-24230-00

Unavailable

20

CLAMP(4FM)

90464-15195-00

Unavailable

21

CLAMP(4AP)

90464-20181-00

Unavailable

22

CLAMP

90464-08263-00

Unavailable

23

CLAMP(4FM)

90464-15195-00

Unavailable

24

CLAMP(4HM)

90464-15192-00

Unavailable

25

BAND

1UA-82591-00-00

Unavailable

26

TUBE

4WM-82139-00-00

Unavailable

27

CLAMP(4GY)

90464-20191-00

Unavailable

28

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

29

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

30

BAND

1UA-82591-00-00

Unavailable

31

CLAMP(56R)

90464-60067-00

Unavailable

32

CLAMP(4GY)

90464-10190-00

Unavailable

33

STARTER RELAY ASSY (RC19-005)

4BH-81940-02-00

Unavailable

34

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

35

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

36

RECTIFIER & REGULATOR ASSY

5VN-81960-00-00

Unavailable

37

BOLT, FLANGE

95817-06020-00

Unavailable

38

RELAY ASSY (5KS-20)

5KS-81950-20-00

Unavailable

39

SWITCH, SIDE STAND

5VS-82566-70-00

Unavailable

40

COVER

4WM-8252U-00-00

Unavailable

41

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

42

CLAMP(4HM)

90464-15192-00

Unavailable

43

CLAMP(4GY)

90464-10190-00

Unavailable

43

CLAMP(4HM)

90464-15192-00

Unavailable

44

CLAMP(4GY)

90464-05188-00

Unavailable

45

BAND

1UA-82591-00-00

Unavailable

46

CLAMP(4GY)

90464-10190-00

Unavailable

47

BAND

1UA-82591-00-00

Unavailable

48

BAND

1UA-82591-00-00

Unavailable

49

THERMO SWITCH ASSY

5FU-82560-50-00

Unavailable

50

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable
