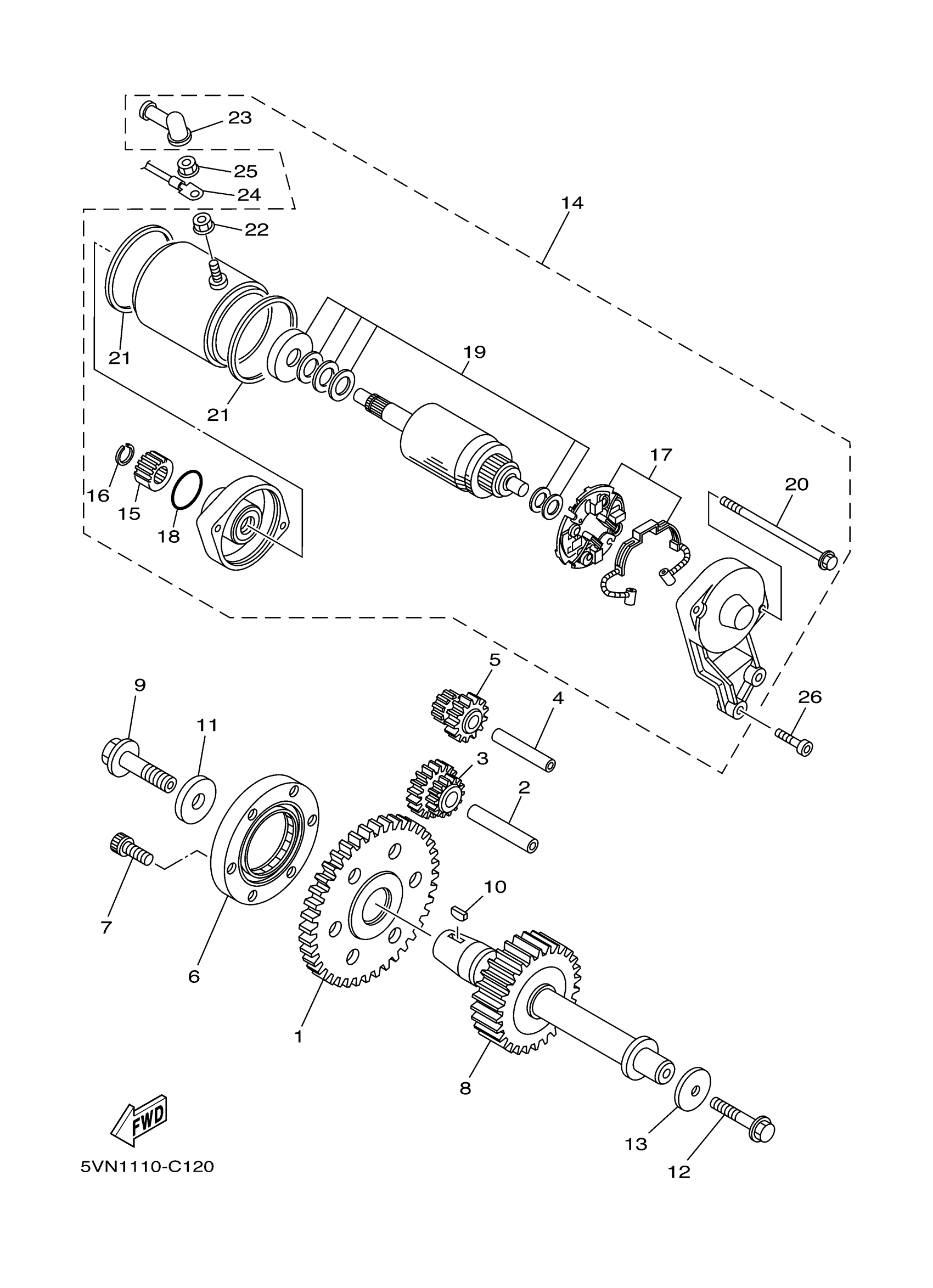

Yamaha XV17AMSC (ROAD STAR MIDNIGHT CA) 5VR2 2004 STARTER Diagram

#

Description
Price

1

GEAR 3

4WM-15515-00-00

Unavailable

2

SHAFT 2

4WM-15522-00-00

Unavailable

3

GEAR, IDLER 2

4WM-15517-00-00

Unavailable

4

SHAFT 1

4WM-15521-00-00

$13.49

5

GEAR, IDLER 1

4WM-15512-00-00

Unavailable

6

STARTER ONE-WAY ASSY

4WM-15590-00-00

$305.99

7

BOLT,SOCKET

91314-08020-00

$8.49

8

SHAFT

5VN-15659-00-00

Unavailable

9

BOLT, WASHER BASED(3LD)

90105-12584-00

Unavailable

10

KEY, WOODRUFF

90280-05001-00

$12.49

11

WASHER, PLATE

90201-12008-00

$14.99

12

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

13

WASHER

4WM-15653-00-00

Unavailable

14

MOTOR ASSY

5MB-81890-11-00

Unavailable

15

GEAR, STARTING MOTOR

1VJ-15511-00-00

Unavailable

16

CIRCLIP (341)

93440-11024-00

Unavailable

17

BRUSH SET

3AJ-81801-00-00

Unavailable

18

O-RING (437)

93210-24235-00

Unavailable

19

. WASHER KIT

4WM-81809-00-00

Unavailable

20

BOLT

3AJ-81826-00-00

Unavailable

21

GASKET

35C-81844-00-00

Unavailable

22

NUT

4XV-8182A-00-00

Unavailable

23

.. CAP

5H0-81871-00-00

Unavailable

24

CORD, STARTER MOTOR

4WM-81815-00-00

Unavailable

25

NUT

4XV-8182A-00-00

Unavailable

26

BOLT,SOCKET HEAD

91314-06025-00

Unavailable
